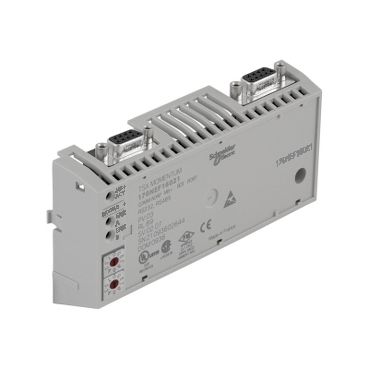

170PNT11020C
Schneider Electric
Overview
The 170PNT11020C is a Communication Adapter in the Modicon Momentum range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As a communication adapter, the 170PNT11020C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170PNT11020C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170PNT11020C?
The 170PNT11020C is a communication adapter in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Communication Adapter.
What are the key technical ratings of the 170PNT11020C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 170PNT11020C mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170PNT11020C compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170PNT11020C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170PNT11020C is a communication adapter from Schneider Electric's Modicon Momentum series. It is engineered for seamless integration using the Modbus Plus protocol, facilitating data transfer at a speed of 1 Mbit/s. This adapter is capable of accommodating a multidrop topology, supporting up to 31 devices per segment.
Specifications
| Product Line | Modicon Momentum |
|---|---|
| Communication | Protocol Modbus Plus |
| Number of | Devices Per Segment 0 to 31 per segment |
| Cable | Length 5000 m |
| Protection Class | IP20 |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
