170NEF16021C
Schneider Electric
Overview

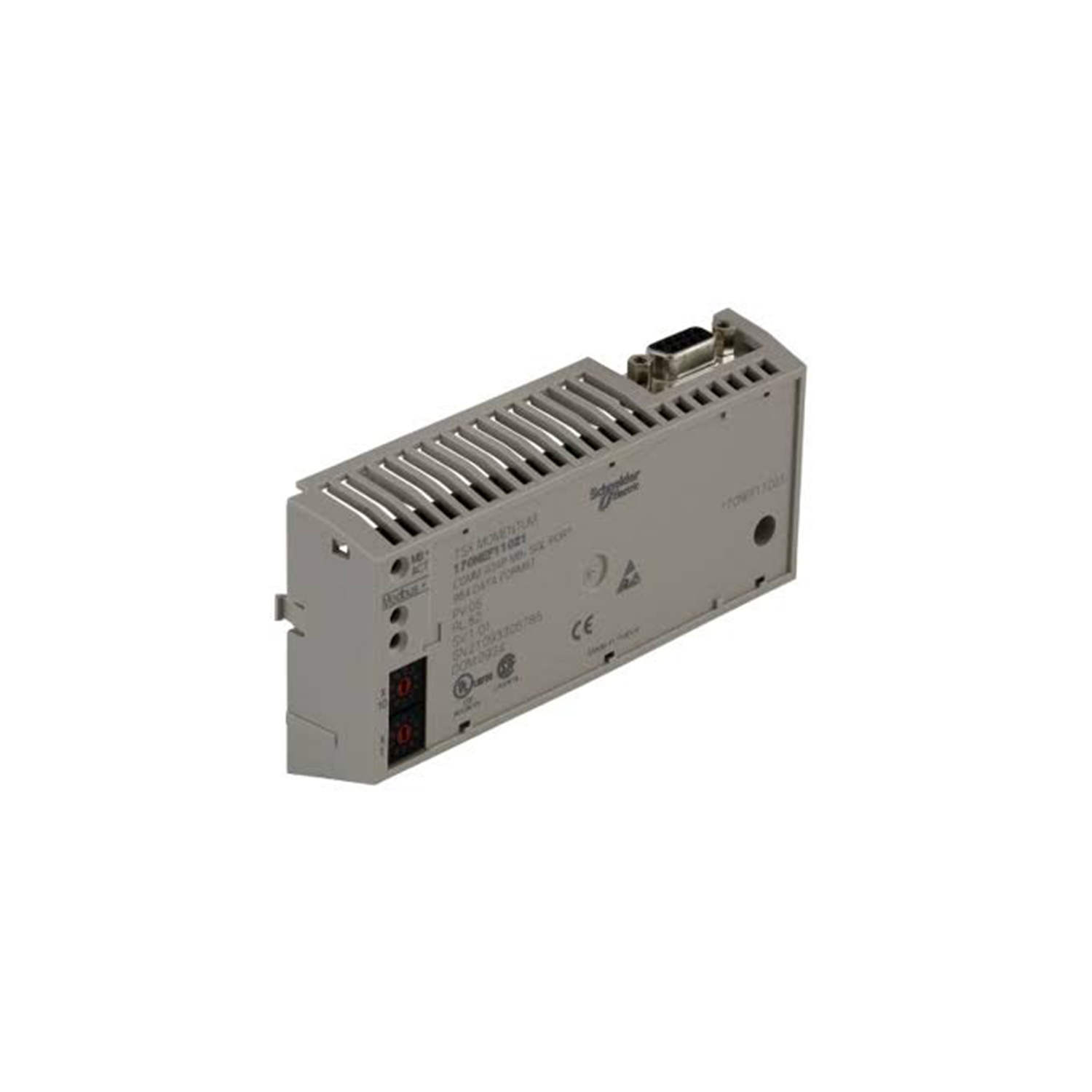

The 170NEF16021C is a Communication Adapter in the Modicon Momentum range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As a communication adapter, the 170NEF16021C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170NEF16021C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170NEF16021C?
The 170NEF16021C is a communication adapter in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Communication Adapter.
What are the key technical ratings of the 170NEF16021C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 170NEF16021C mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170NEF16021C compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170NEF16021C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170NEF16021C is a communication adapter from Schneider Electric's Modicon Momentum series designed for effective integration using the Modbus Plus protocol. This unit features a transmission rate of 1 Mbit/s and supports up to 31 Momentum devices per segment.
Description
| Note | The Schneider Electric 170NEF16021C is designed specifically as a communication adapter for the Modicon Momentum series, facilitating the Modbus Plus protocol. With a maximum transmission rate of 1 Mbit/s, it enables quick and efficient communication between devices. The adapter supports a ring topology, ensuring a robust network setup where each device can be part of a continuous path. This unit connects using a SUB-D type connector, featuring 9 pins, which allows for straightforward integration into existing setups. Capable of managing up to 31 Momentum devices per segment, the 170NEF16021C enhances the scalability of your automation solutions. Additionally, it supports a cable length of up to 5 km, providing flexibility in physical layout. The adapter is housed in an enclosure rated at IP20, providing basic dust protection. It is also designed to operate effectively in environments with a maximum humidity of 80% and can be stored under similar conditions without condensation. For altitude considerations, the device is operational up to 1000 meters above sea level, making it versatile for various installation scenarios. Weighing just 0.2 kg, this compact communication adapter is ideal for integration into diverse applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
