170MCI02110
Schneider Electric
Overview

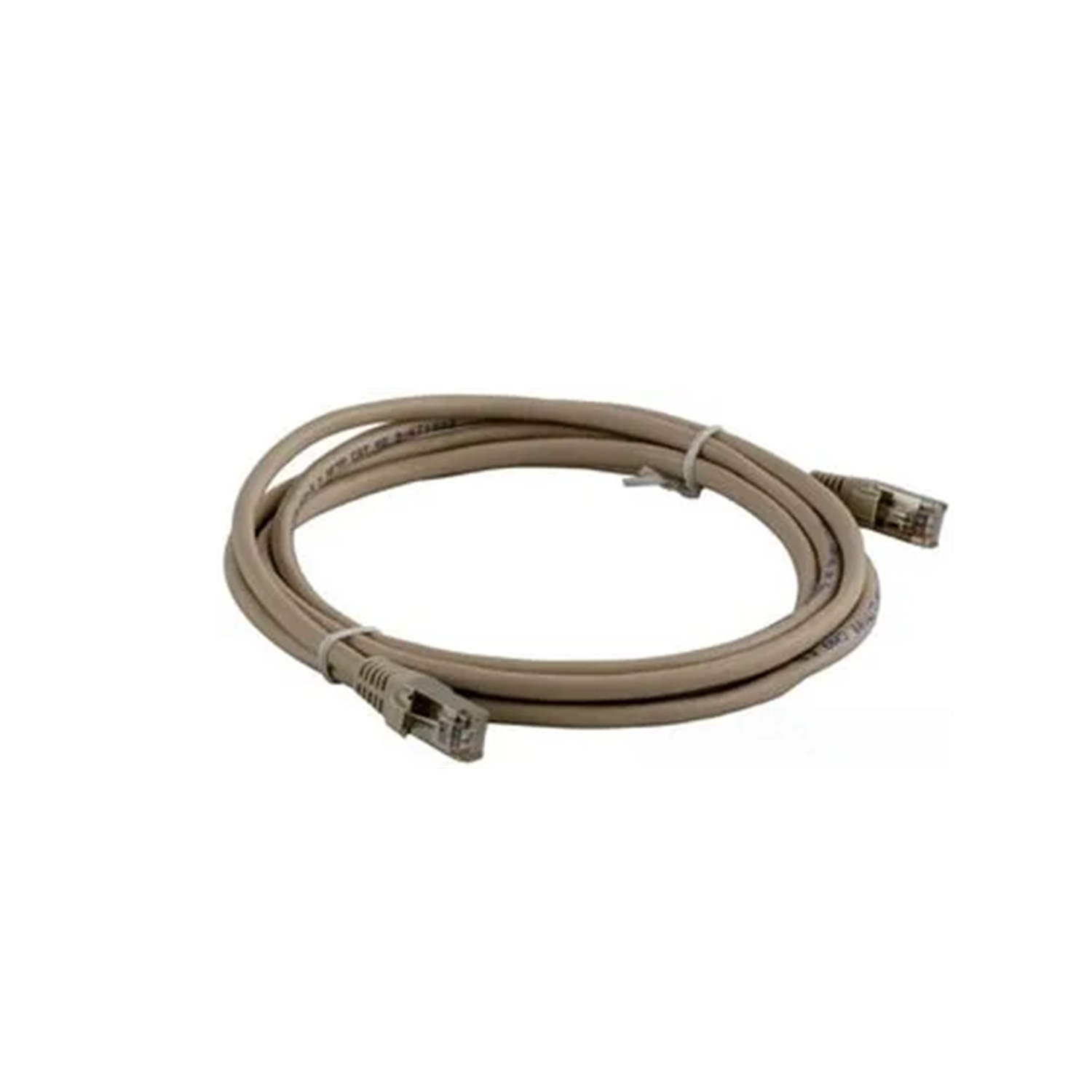

The 170MCI02110 is a Communication Cable in the Modicon Momentum range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As a communication cable, the 170MCI02110 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of -10°C to +60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-10°C to +60°C); do not exceed it during commissioning or in enclosed panels without airflow. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170MCI02110, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170MCI02110?
The 170MCI02110 is a communication cable in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Communication Cable.
What are the key technical ratings of the 170MCI02110?
Its published highlights include operating temperature -10°C to +60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170MCI02110 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170MCI02110 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170MCI02110?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170MCI02110 communication cable from Schneider Electric's Modicon Momentum series serves crucial connection purposes. This round shielded cable operates within a voltage rating of 30 V and can handle currents up to 1A, making it suitable for various applications.
Description
| Note | The Schneider Electric 170MCI02110 is an essential communication cable that is part of the Modicon Momentum series. Engineered to facilitate effective connections, this cable is equipped with a 20-pin male connector on one end and a matching 20-pin female connector on the other, suitable for linking Momentum I/O bases. The cable typically measures 2 meters in length, providing ample reach for various setups in industrial applications. This product operates under a voltage rating of 30 V, ensuring it meets various connectivity requirements. The 170MCI02110 cable encompasses a protection rating enabling it to operate effectively within temperature ranges from -10°C to +60°C, which supports diverse environmental conditions. Constructed from copper and rated for a current carrying capacity of 1A, it maintains stable performance. The round shielded design features both foil and drain shielding, which helps to minimize electromagnetic interference and contributes to signal integrity. To meet regulatory standards, this cable is RoHS compliant, making it suitable for environmentally-conscious applications. Additionally, the cable is cased in a robust PVC jacket that ensures durability and flexibility during installation or handling. With its proprietary MODBUS/Momentum I/O interface type, this communication cable is a reliable choice for establishing high-performance connections between Momentum I/O equipment. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
