170INT11003
Schneider Electric
Overview

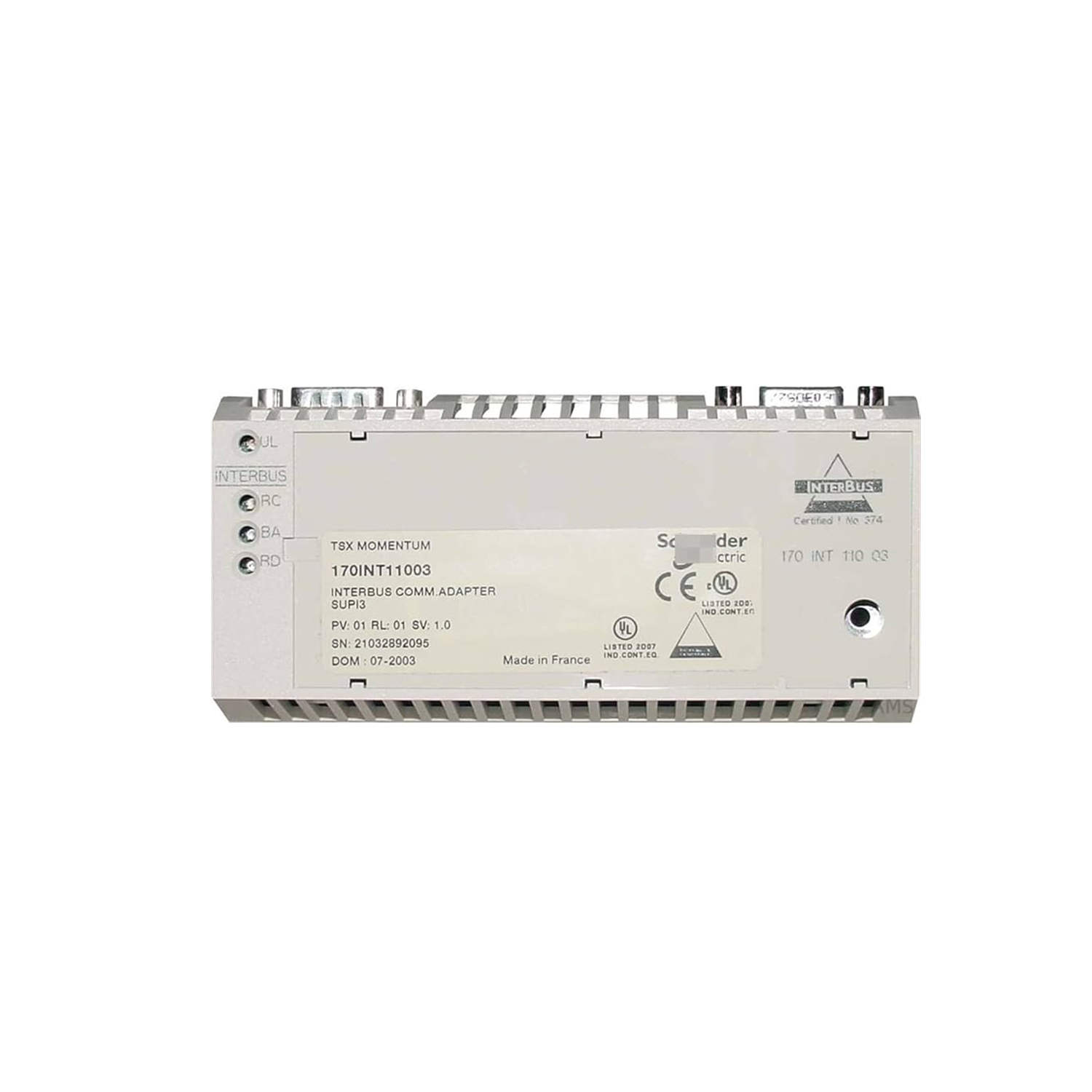

The 170INT11003 is a Communication Adapter in the Modicon Momentum range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As a communication adapter, the 170INT11003 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0 to 60°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40 to 85°C (in a non-condensing environment). Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170INT11003, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170INT11003?
The 170INT11003 is a communication adapter in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Communication Adapter.
What are the key technical ratings of the 170INT11003?
Its published highlights include operating temperature 0 to 60°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170INT11003 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170INT11003 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170INT11003?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170INT11003 is a communication adapter belonging to Schneider Electric's Modicon Momentum series. It facilitates an efficient connection between devices using a Master/Slave configuration and supports a communication protocol defined as Interbus Generation SUPI III.
Description
| Note | Schneider Electric's 170INT11003 serves as a vital communication adapter designed for the Modicon Momentum series. It adopts a master/slave access method alongside a continuous shift register for seamless data transfer. The device can accommodate numerous devices—specifically, 0 to 254 devices per segment—enhancing control over multiple components within a given network. Operating under the Interbus Generation SUPI III protocol, it ensures reliability across extensive communication scenarios. The maximum cable length permitted between devices exceeds 3,280 feet or 1,000 meters, and between two modules, it is measured at 1,312.14 feet (400 meters). Power consumption remains low at 0.8 Watts in settings devoid of fiber-optic adapters, aligning with energy-efficient operations. It achieves a high transmission rate of 500 kilobits per second, ensuring quick data handling. The IP20 rating signifies its basic protection against solid foreign objects. This adapter is designed to work effectively at ambient operating temperatures ranging from 0 to 60°C in non-condensing conditions. It can also function at high altitudes of less than 16,404 feet (5,000 meters). Two 9-pin D-Sub interbus connectors are utilized for electrical connection, ensuring robust linkages within the system. Additionally, it can withstand storage conditions from -40 to 85°C without condensation concerns. The control parameter for data verification is based on CRC-16, while the network is organized in a ring topology. The device utilizes twisted pairs cables for transmission, which enhances electromagnetic compatibility and reduces interference. |
|---|
