170INT11000C
Schneider Electric
Overview

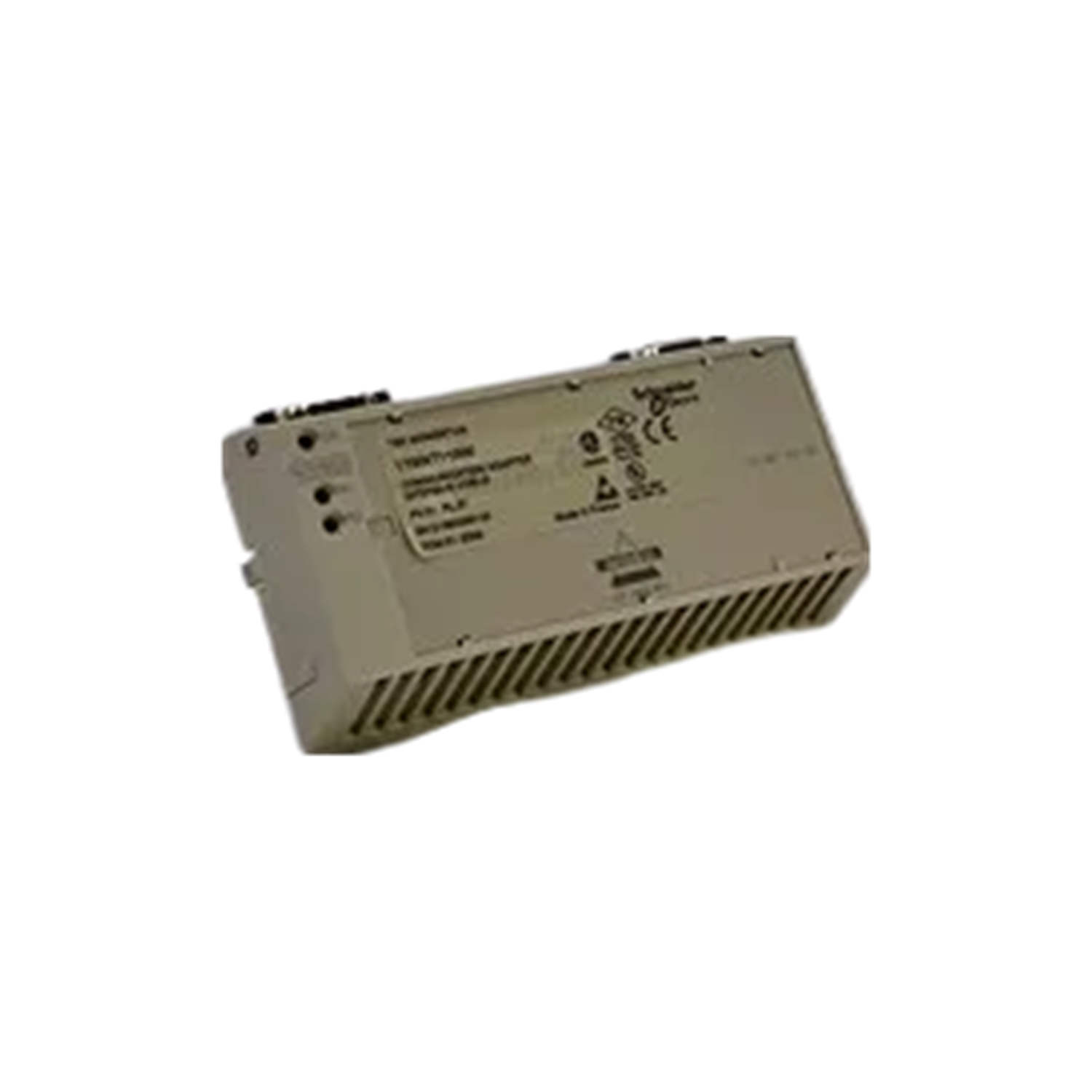

The 170INT11000C is an Interbus communication adaptor in the Modicon Momentum automation platform range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As an interbus communication adaptor, the 170INT11000C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170INT11000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170INT11000C?
The 170INT11000C is an interbus communication adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Interbus communication adaptor.
What are the key technical ratings of the 170INT11000C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 170INT11000C mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170INT11000C compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170INT11000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170INT11000C is an Interbus communication adaptor developed by Schneider Electric, part of the Modicon Momentum series. It enables connection with a high transmission rate of 500 kbit/s, supporting various devices in industrial systems.
Description
| Note | The Schneider Electric 170INT11000C serves as an Interbus communication adaptor within the Modicon Momentum range. This unit stands out with a notable transmission capability of 500 kbit/s over twisted pair cables. Connecting devices through a ring topology allows for a flexible network structure. A maximum of 254 devices can be connected per segment, making it suitable for extensive system architectures. In the context of installation, the maximum cable distance between modules reaches an impressive 12,800 meters. This feature provides significant coverage for large-scale applications. The device operates in a fail-safe mode, increasing robustness by ensuring stable performance under adverse conditions. Weighing just 0.07 kg, it is lightweight yet designed with a protection class of IP20 to guard against solid particle ingress. Moreover, the 170INT11000C is resilient to environmental stresses, demonstrating resistance to electrostatic discharges up to 8 kV and electromagnetic fields of 10 V/m. This ensures reliable operation in challenging electrical environments. Additionally, the unit can function effectively at altitudes of up to 5000 meters. This combination of performance and resilience makes it a reliable component for complex industrial communication infrastructures. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Interbus communication adaptor |
Complementary
| Note | Communication Port Protocol Interbus generation SUPI 2 |
|---|---|
| Transmission support medium | Twisted pair |
| Transmission Rate | 500 kbit/s |
| Topology | Ring |
| Net Weight | 0.15 lb(US) (0.07 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating Humiseal 1A33 TC |
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595863798814 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 6.8 oz (193.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 5.9 in (15.0 cm) |
| Package 2 Width | 11.8 in (30.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 13.6 oz (386.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
