170INT11000
Schneider Electric
Overview

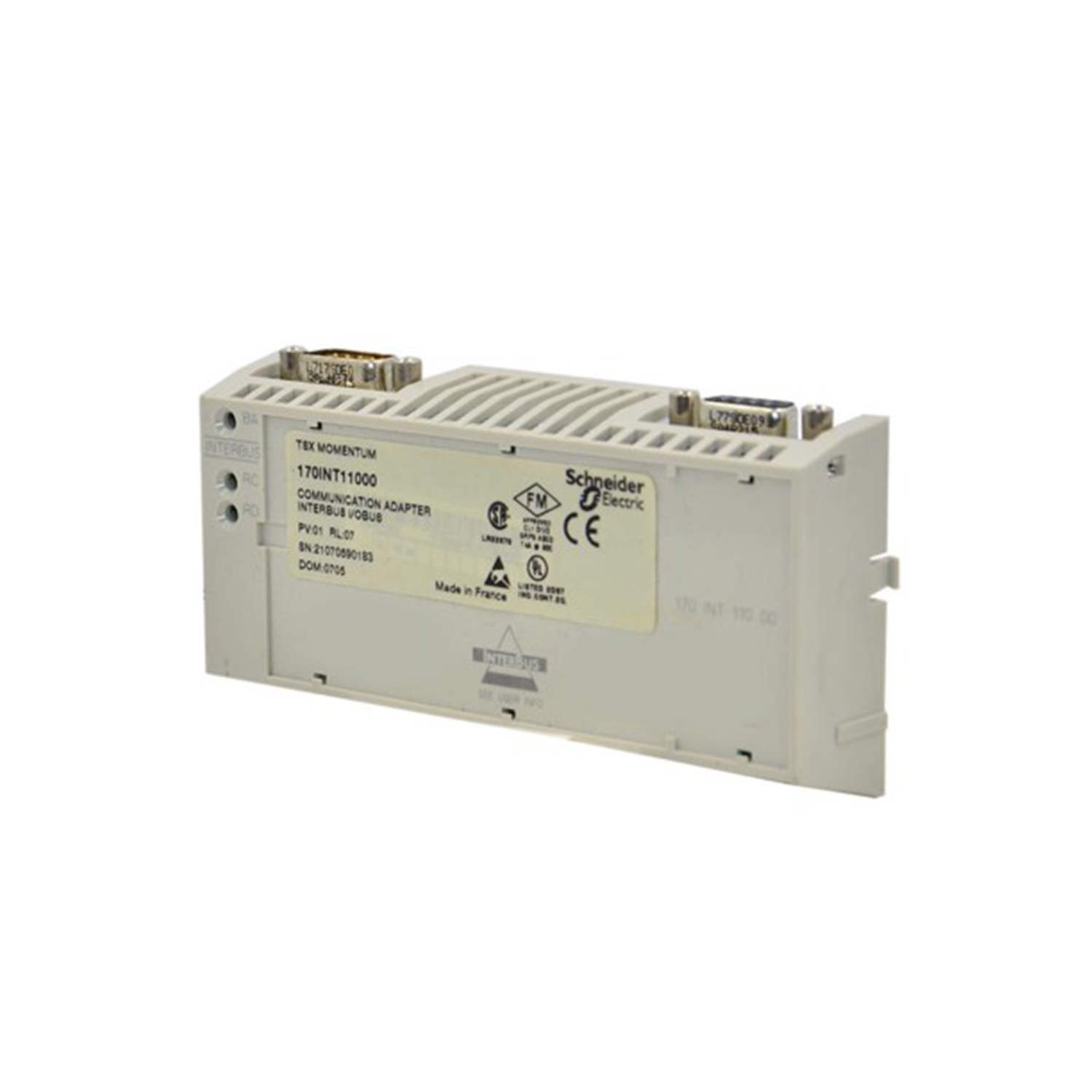

The 170INT11000 is an Interbus communication adaptor in the Modicon Momentum automation platform range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As an interbus communication adaptor, the 170INT11000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0 to 60°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40 to 85°C (in a non-condensing environment). Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170INT11000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170INT11000?
The 170INT11000 is an interbus communication adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Interbus communication adaptor.
What are the key technical ratings of the 170INT11000?
Its published highlights include operating temperature 0 to 60°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170INT11000 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170INT11000 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170INT11000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170INT11000 is a communication adapter in the Modicon Momentum series from Schneider Electric, designed for effective data transmission. It utilizes the Interbus Generation SUPI II communication protocol with a transmission capacity of 500 kilobits per second, making it suitable for fast networking solutions. The device can operate over twisted pairs cable and is structured in a ring network topology.
Description
| Note | The Schneider Electric 170INT11000 is a communication adapter pertinent to the Modicon Momentum series. This module is engineered to facilitate communication through the Interbus Generation SUPI II protocol, achieving a notable transmission rate of 500 kilobits per second. It predominantly uses twisted pairs cabling and is arranged in a ring network configuration, ensuring efficient and reliable data transfer within an industrial environment. For connectivity, the device is equipped with two 9-pin D-Sub Interbus connectors, enabling straightforward integration into existing systems. With an access method that combines Master/Slave arrangements and continuous shift register options, it provides enhanced flexibility in network design. The module can accommodate 0 to 254 devices per segment, making it versatile for various applications. Notably, the network configuration allows substantial cable runs, accommodating distances greater than 3,280 feet (1,000 meters) between devices and up to 1,312.14 feet (400 meters) between modules, lending it to expansive installation requirements. To maintain data integrity, it employs a CRC-16 control parameter for error checking. The power consumption of the 170INT11000 is minimal, drawing less than 200 to 400 milliamperes at a supply voltage of 5 V DC, while power dissipation remains low at 0.8 watts when used without a fiber-optic adapter. It meets IP20 protection class standards, indicating its robustness against solid foreign objects, although not rated for water exposure. This module operates efficiently in environments ranging from 0 to 60°C, ensuring reliable performance in standard working conditions. For storage, it can endure temperatures as low as -40°C to as high as 85°C, maintaining functionality across a wide temperature range in non-condensing settings. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Interbus communication adaptor |
| Method of access | Continuous shift register Master/slave |
Complementary
| Note | Communication Port Protocol Interbus generation SUPI 2 |
|---|---|
| Fail state | Fail safe |
| Transmission support medium | Twisted pair |
| Transmission Rate | 500 kbit/s |
| Topology | Ring |
| Control parameter | CRC-16 |
| Net Weight | 0.15 lb(US) (0.07 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | TC |
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595861000360 |
| Returnability | Yes |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.205 in (5.600 cm) |
| Package 1 Width | 7.008 in (17.800 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package weight(Lbs) | 6.631 oz (188.000 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
