170ENT11002
Schneider Electric
Overview

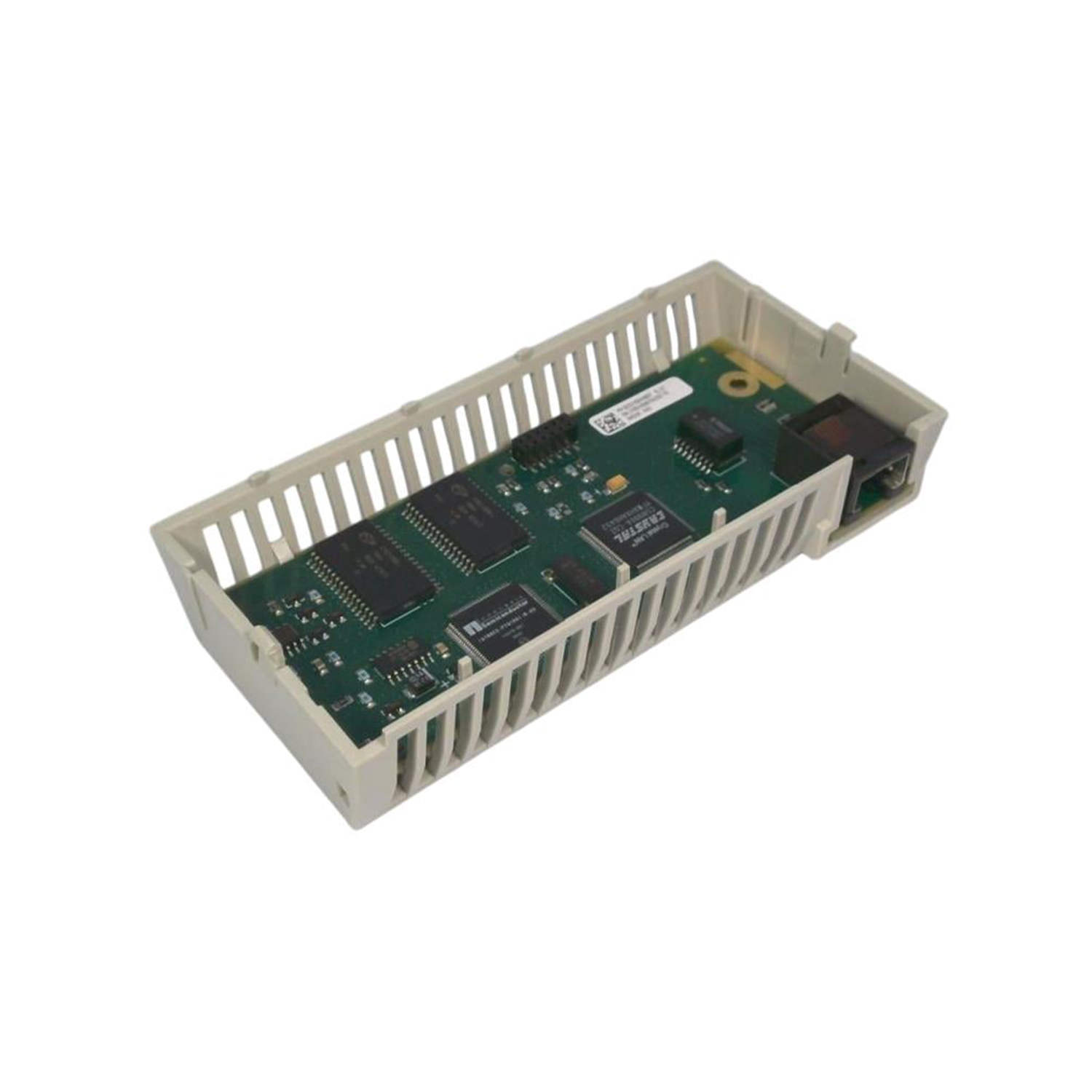

The 170ENT11002 is an Ethernet TCP/IP communication adaptor in the Modicon Momentum automation platform range from Schneider Electric. It extends Modicon 170 connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet tcp/ip communication adaptor, the 170ENT11002 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0 to 60°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40 to 85°C (in a non-condensing environment). Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ENT11002, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon 170 network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ENT11002?
The 170ENT11002 is an ethernet tcp/ip communication adaptor in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Ethernet TCP/IP communication adaptor.
What are the key technical ratings of the 170ENT11002?
Its published highlights include operating temperature 0 to 60°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ENT11002 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ENT11002 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ENT11002?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170ENT11002 is a communication adapter from Schneider Electric's Modicon Momentum series. This unit allows for robust network connectivity and operates on an Ethernet Transmission Control Protocol/Internet Protocol. It features a 100BASE-TX port and supports master/slave access methods as well as peer-to-peer communication.
Description
| Note | Schneider Electric's Modicon Momentum series features the 170ENT11002, designed as a reliable communication adapter for industrial applications. This unit utilizes a 100BASE-TX Ethernet port, ensuring effective network interactions through the Ethernet Transmission Control Protocol/Internet Protocol. Operating at a baud rate of 10 megabits per second, it facilitates seamless data transmission in a versatile setup. The unit's protection class is rated at IP20, meaning it is safeguarded against solid objects larger than 12 mm but is not rated for water protection. Its operational parameters allow it to function effectively in ambient temperatures ranging from 0 to 60°C, making it suitable for various controlled environments. For storage, the device can endure temperatures between -40 and 85°C while remaining non-condensing. As a communication adapter, the 170ENT11002 supports multiple network configurations. It operates within star and multi-drop network topologies, allowing flexibility in system design. In terms of connectivity, this adapter can link up to 32 devices per segment, facilitated by an RJ45 connector intended for 10BASE-T standards. Even under strenuous conditions, the device remains functional at altitudes below 16,404 feet (5,000 meters). Users can achieve cable distances exceeding 3,280 feet (1,000 meters) when utilizing a repeater, while non-repeater setups limit distances to just under 3,280 feet (1,000 meters). This combination of features makes the 170ENT11002 a practical choice for established and emerging network environments. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Ethernet TCP/IP communication adaptor |
| Method of access | Peer to peer Master/slave |
Complementary
| Note | Communication Port Protocol Ethernet TCP/IP Module configuration BOOTP server to assign IP parameters |
|---|---|
| Port Ethernet | 10BASE-T Addressing Unique IEEE global address IP address user assigned |
| Fail state | Fail safe |
| Transmission support medium | Shielded twisted pairs cable |
| Transmission Rate | 10 Mbit/s |
| Topology | Multidrop, star network |
| Control parameter | CRC-32 |
| Net Weight | 0.15 lb(US) (0.07 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | TC |
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595862065054 |
| Returnability | Yes |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.283 in (5.800 cm) |
| Package 1 Width | 7.008 in (17.800 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package weight(Lbs) | 7.725 oz (219.000 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
