170CPS11100
Schneider Electric
Overview

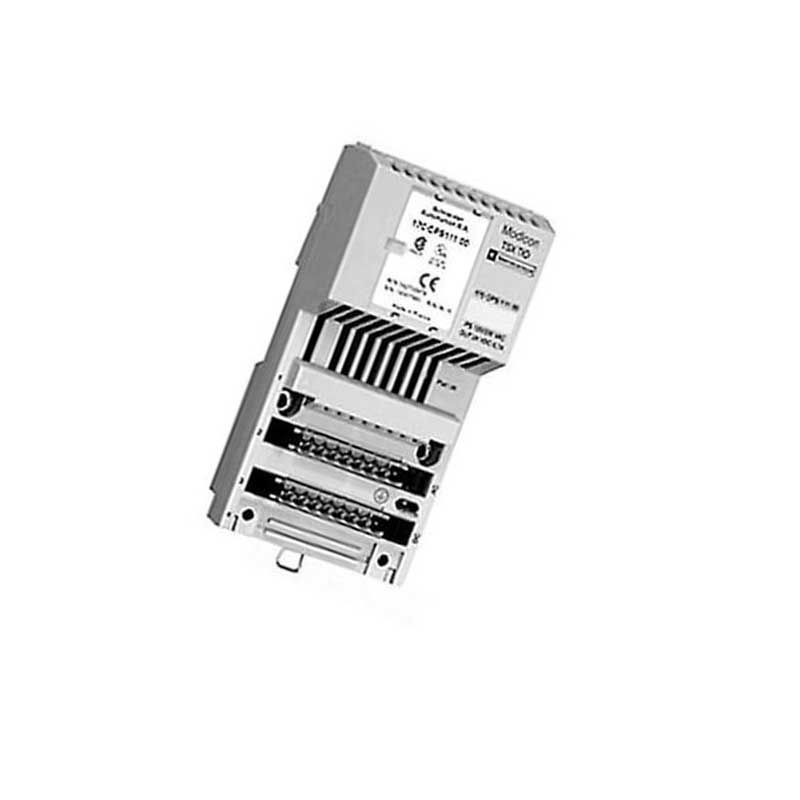

The 170CPS11100 is a M1 processor adaptors power supply in the Modicon Momentum automation platform range from Schneider Electric. It executes control logic for Modicon 170 architectures and operates from a Rating 24 Volts DC supply.
Application & Technical Notes
As a m1 processor adaptors power supply, the 170CPS11100 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a Rating 24 Volts DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 5…95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170CPS11100, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon 170 architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170CPS11100?
The 170CPS11100 is a m1 processor adaptors power supply in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: M1 processor adaptors power supply.
What are the key technical ratings of the 170CPS11100?
Its published highlights include Rating 24 Volts DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170CPS11100 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170CPS11100 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170CPS11100?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170CPS11100 is a power supply adaptor designed for the Modicon Momentum series. Operating with adjustable input voltages of 120 to 230 Volts AC, it provides a stable output voltage of 24 Volts DC suitable for various applications.
Description
| Note | The part number 170CPS11100 from Schneider Electric is a robust processor adaptor power supply intended for the Modicon Momentum series. This unit is adaptable, supporting input voltage levels between 120 and 230 Volts AC, accommodating various system requirements. Its output delivers a constant 24 Volts DC, making it suitable for powering processes effectively. Designed to perform in ambient temperatures from 0 to 60°C, the adaptor ensures reliable operation in non-condensing environments. It also tolerates operating altitudes up to approximately 6,561.68 feet (2,000 meters), enabling flexibility for diverse applications. This power supply is equipped with a terminal strip connector type, facilitating straightforward connections in various setups. The device weighs 0.61 pounds (0.28 kilograms), contributing to its ease of installation and integration. For local signaling purposes, it incorporates a single RUN LED indicator, providing visual feedback on operational status. In terms of environmental conditions, the unit is rated for a storage temperature range of -25 to 70°C and supports relative humidity levels from 5% to 95% without condensation. Furthermore, the fuse ratings are 0.63 Amperes for 120 Volts and 0.315 Amperes for 230 Volts, ensuring protection during operations. Overall, this power supply is designed to meet the demands of various industrial environments while maintaining efficiency and reliability. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type M1 processor adaptors power supply |
Complementary
| Input voltage | 120 V adjustable by jumper AC 230 V adjustable by jumper AC |
|---|---|
| Nominal output current | 0.7 A |
| Output voltage | 24 V DC |
| Associated fuse rating | 0.315 A 230 V 0.63 A aM 120 V |
| Local signalling | 1 LED for module operating (RUN) |
| Connections - Terminals | Terminal strip connector |
| Net Weight | 0.626 lb(US) (0.284 kg) |
Environment
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 5…95 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3389110069976 |
| Returnability | No |
| Country of origin | DE |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
