170BSM01600
Schneider Electric
Overview
The 170BSM01600 is a Modicon Momentum in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a modicon momentum, the 170BSM01600 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a type rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is 95% or less (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170BSM01600, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170BSM01600?
The 170BSM01600 is a modicon momentum in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Modicon Momentum.
What are the key technical ratings of the 170BSM01600?
Its published highlights include type. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170BSM01600 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170BSM01600 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170BSM01600?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

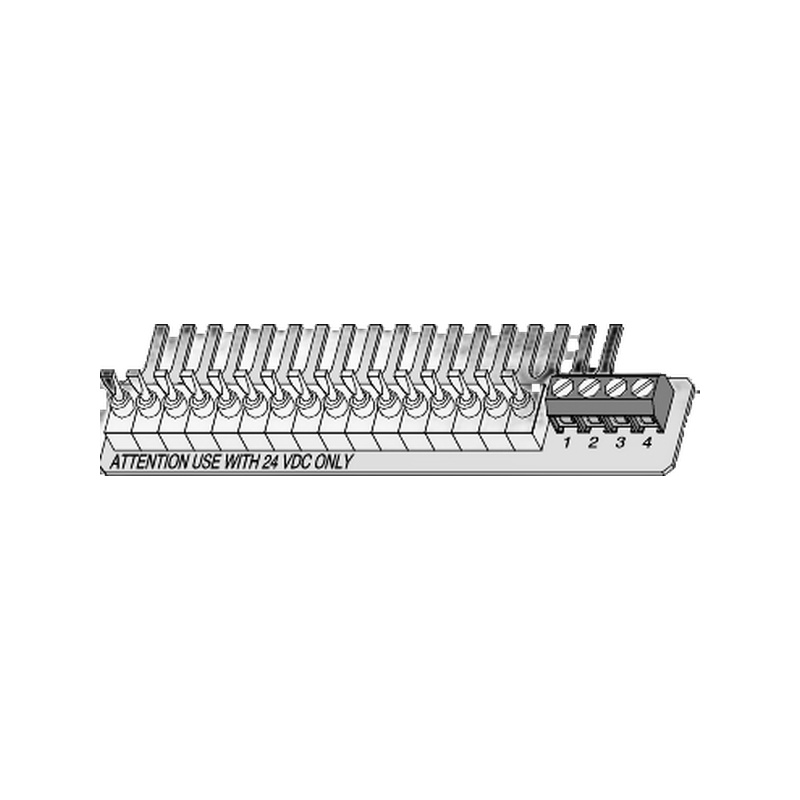

The 170BSM01600 from Schneider Electric serves as a versatile input simulator. Designed for discrete input signaling, it features 16 channels operating at a voltage of 24 VDC.
Description
| Note | The Schneider Electric 170BSM01600, part of the Modicon Momentum series, is primarily utilized as an input simulator in various automation settings. This device is tailored for discrete input applications and supports a total of 16 channels, each capable of operating at a discrete input voltage of 24 VDC. This unit features local signaling via seven LED indicators, which provide immediate visual feedback for operational status. Installing the 170BSM01600 is straightforward, as it is designed for mounting on DIN rails, simplifying integration into existing systems. Weighing in at 0.45 kg (1 lb), this input simulator is compact yet effective. It can function efficiently within an operating temperature range from -20°C to 55°C, ensuring adaptability to varying environmental conditions. Additionally, the device can be safely stored in temperatures ranging from -40°C to 75°C, making it durable under extreme conditions. This model operates effectively in environments with relative humidity levels of up to 95%, provided there is no condensation. Importantly, the device is not suitable for environments containing corrosive gases, ensuring its longevity and reliability in suitable applications. |
|---|---|
| Range of Product | Modicon Momentum automation platform Accessory / separate part designation Discrete input simulator Accessory / Separate Part Type Discrete input simulator Accessory / separate part destination Discrete I/O base |
| Number of Channels | 16 |
Complementary
| Discrete input voltage | 24 V Input voltage type DC |
|---|
Ordering and shipping details
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 GTIN 3389110116601 |
| Returnability | No |
| Country of origin | DE |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.0 in (5.0 cm) |
| Package 1 Width | 6.1 in (15.5 cm) |
| Package 1 Length | 8.3 in (21.0 cm) |
| Package weight(Lbs) | 5.9 oz (168.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
