170ARM37030
Schneider Electric
Overview

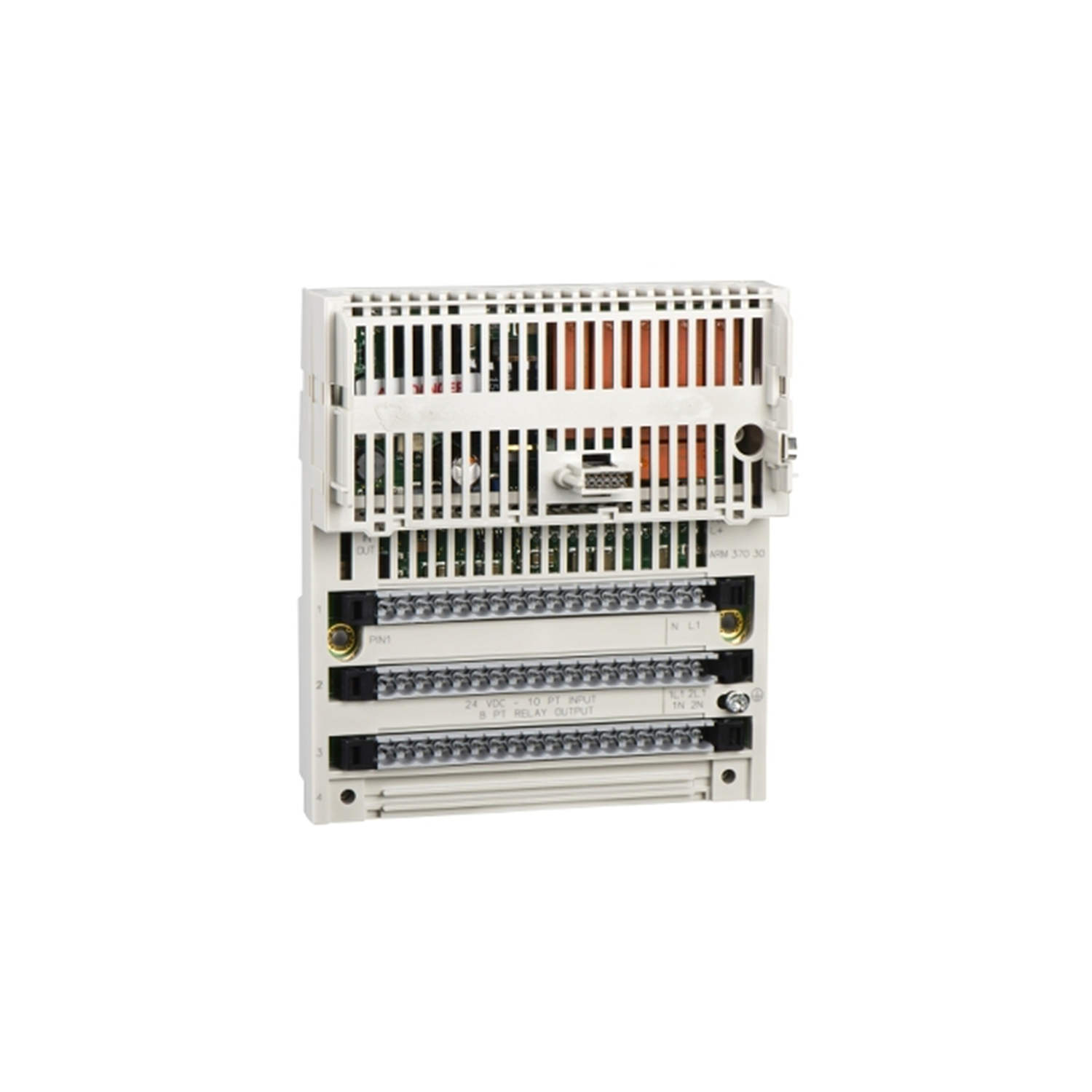

The 170ARM37030 is a Discrete relay I/O base AC in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a discrete relay i/o base ac, the 170ARM37030 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a Limits 3–30 V rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ARM37030, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ARM37030?
The 170ARM37030 is a discrete relay i/o base ac in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Discrete relay I/O base AC.
What are the key technical ratings of the 170ARM37030?
Its published highlights include Limits 3–30 V. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ARM37030 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ARM37030 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ARM37030?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170ARM37030 is a discrete relay I/O base offering comprehensive control. It features ten discrete inputs and eight discrete outputs, and operates within a voltage range from 24 to 230 Volts AC.
Complementary
| Isolation between channels and bus | 500 V AC |
|---|---|
| Height | 5.6 in (141.5 mm) |
| Width | 4.9 in (125 mm) |
| Depth | 1.9 in (47.5 mm) |
| Net Weight | 0.57 lb(US) (0.26 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595860033710 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.5 in (9 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.2 in (26 cm) |
| Package weight(Lbs) | 18.5 oz (524 g) |
| Unit Type of Package 2 | S03 |
Description
| Note | The Schneider Electric Modicon part 170ARM37030 functions as a discrete relay I/O base known for its integral role in automation systems. It provides ten input points compliant with IEC 1131-2 Type 1, making it suitable for various control tasks. The device operates over a voltage spectrum of 24 to 230 Volts AC, providing flexibility in diverse applications. This module incorporates eight discrete outputs, allowing it to manage multiple signals simultaneously. The discrete input logic is of the positive type, which fits seamlessly into standard digital control systems. Input voltage limits range from 3 to 30 Volts, accommodating different sensor and actuator configurations. The device boasts a protective treatment of TC, further ensuring durability and reliability in operation. The isolation between groups of I/O channels reaches up to 1780 Volts AC, enhancing safety when interfacing with other system components. Additionally, between the bus and channels, the isolation measures 500 Volts AC, providing an additional layer of protection to prevent interference. Power dissipation is capped at 8.5 Watts, reflecting efficient energy use during operation. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
