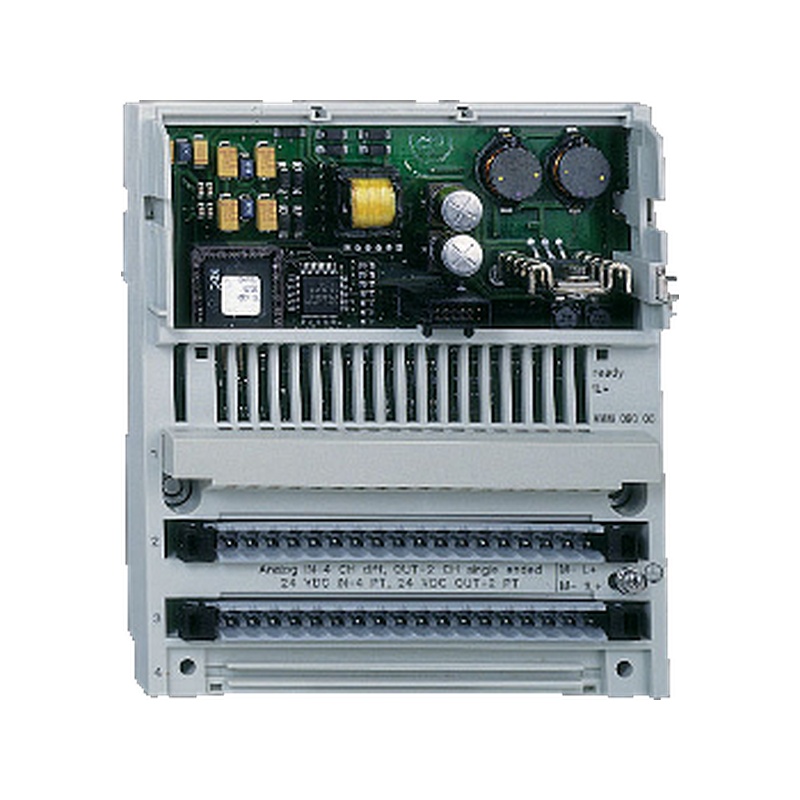

170AMM09000
Schneider Electric
Overview
The 170AMM09000 is an Analogue,discrete I/O base in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As an analogue,discrete i/o base, the 170AMM09000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24 Volts DC rating, an operating temperature range of 0 to 60°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170AMM09000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170AMM09000?
The 170AMM09000 is an analogue,discrete i/o base in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Analogue,discrete I/O base.
What are the key technical ratings of the 170AMM09000?
Its published highlights include 24 Volts DC, operating temperature 0 to 60°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170AMM09000 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170AMM09000 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170AMM09000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170AMM09000 module from Schneider Electric is an advanced I/O base unit designed for versatile control applications. It incorporates 4 analog differential inputs alongside 4 discrete inputs, facilitating extensive data acquisition capabilities.
Description
| Note | The Schneider Electric 170AMM09000 is an analog and discrete input/output base module that delivers high functionality in various automation processes. It comprises 4 differential analog inputs and 4 discrete inputs, enabling it to handle a wide array of measurement tasks efficiently. Additionally, it features 2 analog outputs and 2 discrete outputs, facilitating seamless interfacing with other devices. This module operates on a rated supply voltage of 24 Volts DC while consuming between 200 and 350 milliamperes of current, making it suitable for low-voltage applications. The analog inputs are specifically designed to cover several ranges, including ±10 Volts and ±5 Volts, plus current options such as ±20 milliamperes and 4 to 20 milliamperes, ensuring adaptability. The analog output supports output ranges of ±20 Volts with 12-bit resolution and 0 to 20 milliamperes also with 12-bit resolution. Discrete inputs are set for 24 Volts DC, and the module boasts a maximum power dissipation of 6 Watts. With an ambient operating temperature range of 0 to 60°C in non-condensing environments, this device is built to operate reliably under typical conditions. The conversion time for processes is efficiently managed, requiring only 10 milliseconds for the analog input circuit and just 1 millisecond for the output. Safety is paramount with the 170AMM09000 as it includes overload and short-circuit protection for all discrete outputs. This feature significantly enhances reliability and operational safety across various industrial settings. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Analogue,discrete I/O base |
| Group of channels | 1 group of 2 discrete outputs 1 group of 4 discrete inputs 1 group of 4 analog differential inputs 1 group of 2 analog outputs Analogue input range +/- 10 V +/- 20 mA +/- 5 V 1...5 V 4...20 mA Analogue Input Type Differential |
| Analogue input resolution | 12 bits 1...5 V 12 bits 4...20 mA 13 bits +/- 20 mA 13 bits +/- 5 V 14 bits +/- 10 V |
| Discrete input voltage | 24 V DC |
| Analogue output range | +/- 10 V 12 bits 0...20 mA 12 bits |
| Discrete output voltage | <= 30 V |
| Output short-circuit protection | With discrete output |
| Output overload protection | With discrete output |
Complementary
| Note | Discrete input number 4 IEC 1131-2 Type 1 [Us] rated supply voltage 24 VDC Conversion consistency +/- 0.02 % +/- 10 V analogue input circuit +/- 0.04 % +/- 20 mA analogue input circuit +/- 0.04 % +/- 5 V analogue input circuit +/- 0.04 % 1...5 V analogue input circuit +/- 0.04 % 4...20 mA analogue input circuit |
|---|---|
| Common mode rejection | > 54 dB analogue input circuit |
| Input voltage limits | < 30 V Discrete input logic Positive |
| Voltage state 0 guaranteed | -3...5 V discrete input |
| Voltage state 1 guaranteed | 11...30 V discrete input |
| Current state 0 guaranteed | <= 1.2 mA discrete input) |
| Current state 1 guaranteed | >= 2.5 mA discrete input) |
| Input overvoltage protection | -50…50 V <= 100 s analogue input circuit -30…30 V 24 V analogue input circuit Input resistance 1 MOhm analogue input circuit 4 kOhm discrete input Output load <= 600 Ohm 0...20 mA analogue output >= 3 kOhm +/- 10 V analogue output Conversion time 1 ms analogue output 10 ms analogue input circuit Conversion error +/- 0.35 % +/- 10 V 77 °F (25 °C) analogue output +/- 0.35 % 0...20 mA 77 °F (25 °C) analogue output +/- 0.70 % +/- 10 V 140 °F (60 °C) analogue output +/- 0.70 % 0...20 mA 140 °F (60 °C) analogue output 0,0008 +/- 10 V 77 °F (25 °C) analogue input circuit 0,0015 +/- 10 V 140 °F (60 °C) analogue input circuit 0,0016 +/- 20 mA 77 °F (25 °C) analogue input circuit 0,0016 +/- 5 V 77 °F (25 °C) analogue input circuit 0,0016 1...5 V 77 °F (25 °C) analogue input circuit 0,0016 4...20 mA 77 °F (25 °C) analogue input circuit 0,003 +/- 20 mA 140 °F (60 °C) analogue input circuit 0,003 +/- 5 V 140 °F (60 °C) analogue input circuit 0,003 1...5 V 140 °F (60 °C) analogue input circuit 0,003 4...20 mA 140 °F (60 °C) analogue input circuit |
| Fail state | Analogue input circuit hold Analogue input circuit reset to zero |
| Discrete output type | Transistor |
| Discrete output logic | Positive |
| Discrete output current | 1 A per point 2 A per group 2 A per module |
| Maximum leakage current | 1 mA DC 24 V discrete output |
| Maximum voltage drop | <0.5 V 1 A at state on discrete output Operating rate 100 cyc/s resistive 1 A discrete output 1000 cyc/h inductive 1 A discrete output 8 cyc/s tungsten <2.4 W discrete output |
| Response time | < 0.1 ms from state 0 to state 1 discrete output < 0.1 ms from state 1 to state 0 discrete output 2.2 ms from state 0 to state 1 discrete input 3.3 ms from state 1 to state 0 discrete input |
| Isolation voltage | 500 V 1 min) between analogue I/O and operating voltage 500 V 1 min) between operating voltage and I/O from ground |
| Maximum power dissipation in W | 6 W |
| Marking | CE |
| Local signalling | 8 LEDs for channel status |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | <= 350 mA 24 V DC 200 mA 24 V DC |
| Depth | 1.9 in (47.5 mm) |
| Height | 4.9 in (125 mm) |
| Width | 5.6 in (141.5 mm) |
| Net Weight | 0.53 lb(US) (0.24 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
