170ADO35000
Schneider Electric
Overview

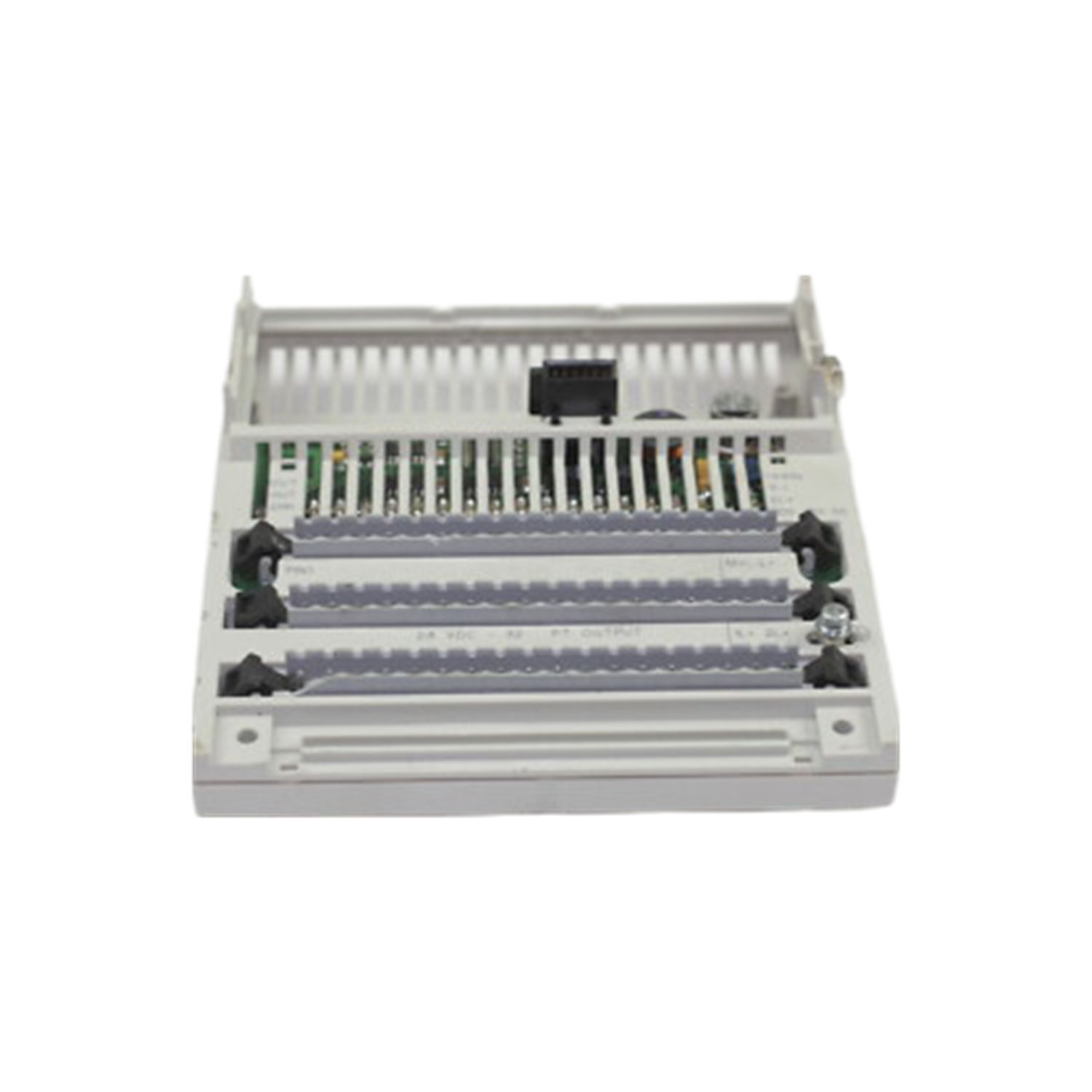

The 170ADO35000 is a Discrete Output Module in the Modicon Momentum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a discrete output module, the 170ADO35000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include a Range 0-24 V DC rated rating, an operating temperature range of 0 to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40 to 85°C. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ADO35000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon 170 rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ADO35000?
The 170ADO35000 is a discrete output module in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Discrete Output Module.
What are the key technical ratings of the 170ADO35000?
Its published highlights include Range 0-24 V DC rated, operating temperature 0 to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ADO35000 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ADO35000 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ADO35000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170ADO35000 is a discrete output module from Schneider Electric’s Modicon Momentum series. It features 32 solid-state outputs, capable of handling a surge current of 5 A for brief durations of 1 ms, with an output voltage range of 0 to 24 V DC.
Specifications
| Product Line | Modicon Momentum |
|---|---|
| Weight | 0.56 lbs (0.26 kg) |
| Insulation | Voltage 4 kV IEC 801-2 |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Compliance | Standards CSA, UL-approved |
| Output | Voltage Range 0-24 V DC rated |
| Certifications | CE, RoHS compliant |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
