170ADM54080
Schneider Electric
Overview

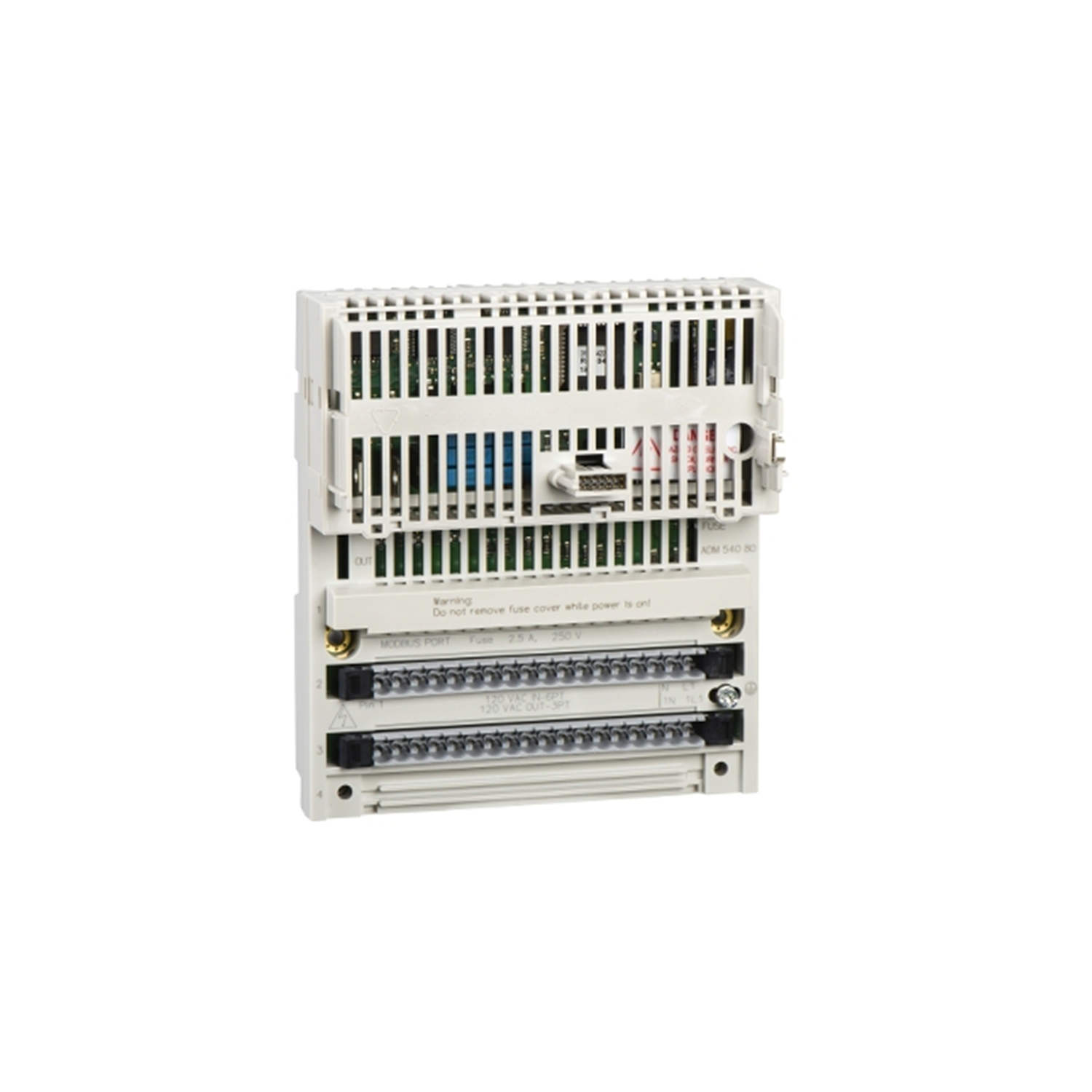

The 170ADM54080 is a Modbus I/O module base in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a modbus i/o module base, the 170ADM54080 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a Rating 120 Volts AC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ADM54080, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon 170 rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ADM54080?
The 170ADM54080 is a modbus i/o module base in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Modbus I/O module base.
What are the key technical ratings of the 170ADM54080?
Its published highlights include Rating 120 Volts AC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ADM54080 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ADM54080 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ADM54080?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170ADM54080 is a Modbus I/O module base designed for efficient connectivity and control within the Modicon Momentum series. It operates at an input voltage rating of 120 volts AC and has a robust frequency range of 47 to 63 Hertz.
Description
| Note | The 170ADM54080 Modbus I/O module base from Schneider Electric's Modicon Momentum series provides robust input and output capabilities for industrial applications. Designed for an input voltage of 120 Volts AC, this module can accommodate voltage fluctuations between 0 and 132 Volts AC. This unit supports six discrete inputs along with three discrete outputs, allowing for flexible configurations in various setups. Its communication protocol is primarily based on Modbus, facilitating straightforward data transfer between devices. Current parameters include a rated surge of 30 milliamperes and a maximum leakage current of 1.9 milliamperes at 120 Volts AC, ensuring safe operation standards. Wiring configurations can employ either 2 or 4 wires based on requirement, providing versatility in installation. The current consumption is rated at 125 milliamperes when operating at 120 Volts AC. For networking, the module supports RS485 communication ports, enhancing connectivity options in automation setups. Operating within an ambient temperature range of 0 to 60°C, the 170ADM54080 is suitable for typical conditions without condensation. Additionally, the module can withstand storage temperatures as extreme as -40 to 85°C, ensuring functionality even in harsh environments. This unit is capable of being assigned addresses ranging from 0 to 247, which allows for extensive network addressing as needed. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Modbus I/O module base |
| Group of channels | 1 group of 6 discrete inputs 1 group of 3 discrete outputs Discrete input number 6 |
| Discrete output number | 3 |
| Number of port | 1 Communication Port Protocol Modbus Wiring mode 2 or 4 wires |
Complementary
| Note | Discrete input logic Positive |
|---|---|
| Discrete input voltage | 120 V AC 47...63 Hz 0...132 V AC |
| Input overvoltage protection | 200 V |
| Voltage state 1 guaranteed | >= 79 V |
| Voltage state 0 guaranteed | <= 20 V |
| Current state 1 guaranteed | >= 5.5 mA |
| Current state 0 guaranteed | <= 1.9 mA |
| Discrete output logic | Positive |
| Discrete output voltage | 120 V 47...63 Hz |
| Discrete output current | 0.5 mA per point 1.5 mA per module |
| Maximum voltage drop | <1.5 V 0.5 A at state on |
| Maximum leakage current | 1.9 mA AC 120 V |
| Surge current | 30 mA |
| Response time | < 12.3 ms 60 Hz from state 1 to state 0 input circuit < 12.3 ms 60 Hz from state 1 to state 0 output circuit < 12.5 ms 60 Hz from state 0 to state 1 input circuit < 12.5 ms 60 Hz from state 0 to state 1 output circuit Communication port support RS485 |
| Transmission Rate | 9600 bit/s 19200 bit/s |
| Data format | 8-bit RTU 7-bit ASCII |
| Number of addresses | 0…247 Port timeout 150 ms |
| Marking | CE |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | 125 mA 120 V |
| Net Weight | 0.53 lb(US) (0.24 kg) |
Environment
| Product Certifications | CSA UL |
|---|---|
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
