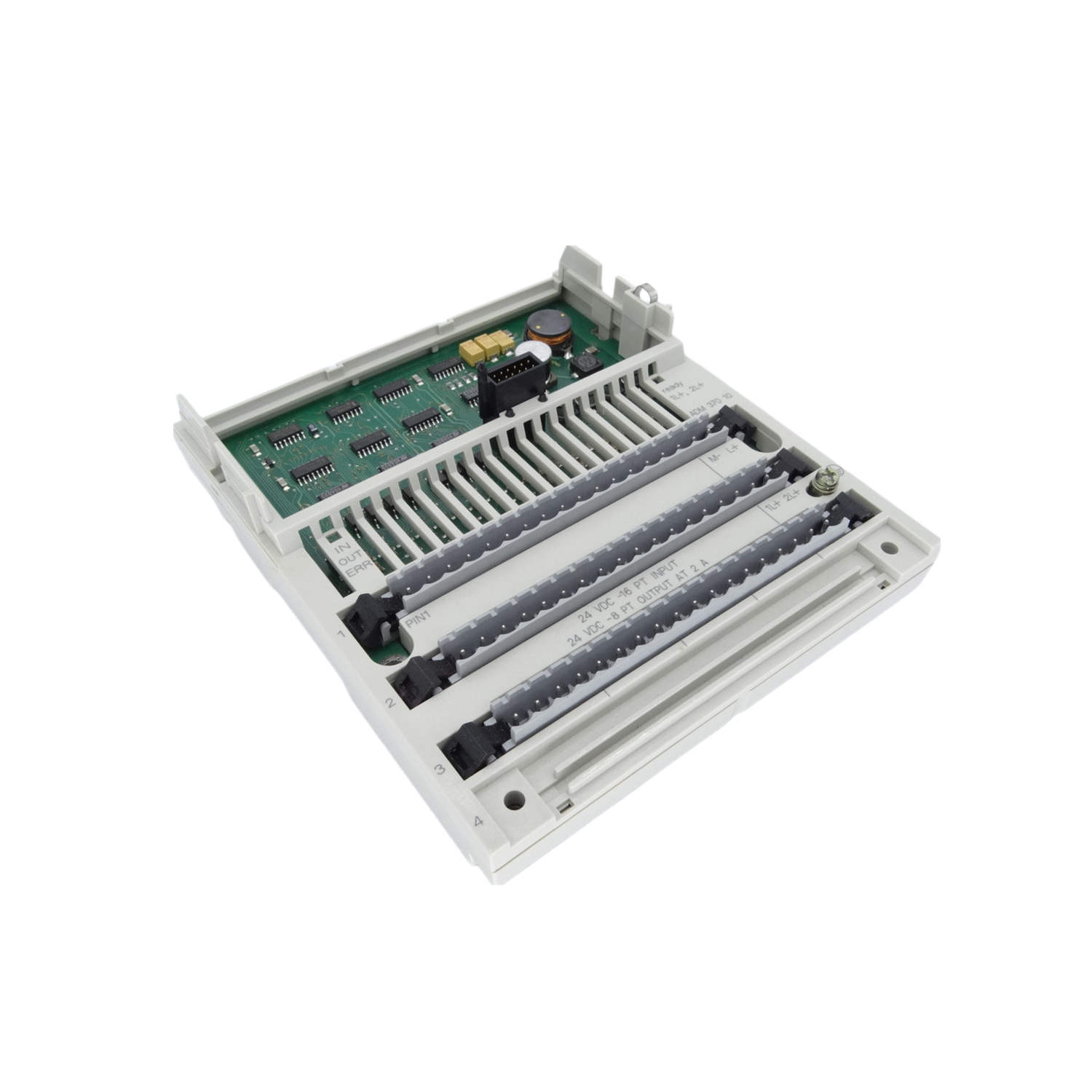

170ADM37010
Schneider Electric
Overview
The 170ADM37010 is a Discrete I/O Base in the Modicon Momentum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a discrete i/o base, the 170ADM37010 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0°C to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ADM37010, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ADM37010?
The 170ADM37010 is a discrete i/o base in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Discrete I/O Base.
What are the key technical ratings of the 170ADM37010?
Its published highlights include operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ADM37010 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ADM37010 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ADM37010?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170ADM37010 unit serves as a discrete I/O base within the Modicon Momentum series. This component accommodates 16 discrete inputs and 8 outputs, designed to function within a well-defined voltage range.
Description
| Note | The 170ADM37010 from Schneider Electric features a discrete I/O base, optimized for integration into the Modicon Momentum series. This unit includes a total of 16 channels dedicated to input operations and 8 channels for output needs. It organizes inputs into four distinct groups and outputs into two, enhancing structured connectivity. With a discrete input voltage rated at 24 V DC, this device offers output capabilities from 24 V DC up to a maximum of 30 V DC. It employs positive logic for both input and output functions, contributing to compatibility with various control systems. The unit supports solid-state switch outputs, ensuring reliable operation. Constructed with protective TC treatment, the 170ADM37010 ensures durability and resilience. It is rated to function effectively in environments with temperatures spanning from 0°C to 60°C, making it suitable for diverse industrial applications. Furthermore, it is rated to handle relative humidity levels of up to 95% without condensation, allowing it to perform reliably under various environmental conditions. For storage purposes, the product is compatible with a broad temperature range, from -40°C to 85°C, providing flexibility for various storing situations. The robust design and specifications make the 170ADM37010 a reliable choice for discrete I/O applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
