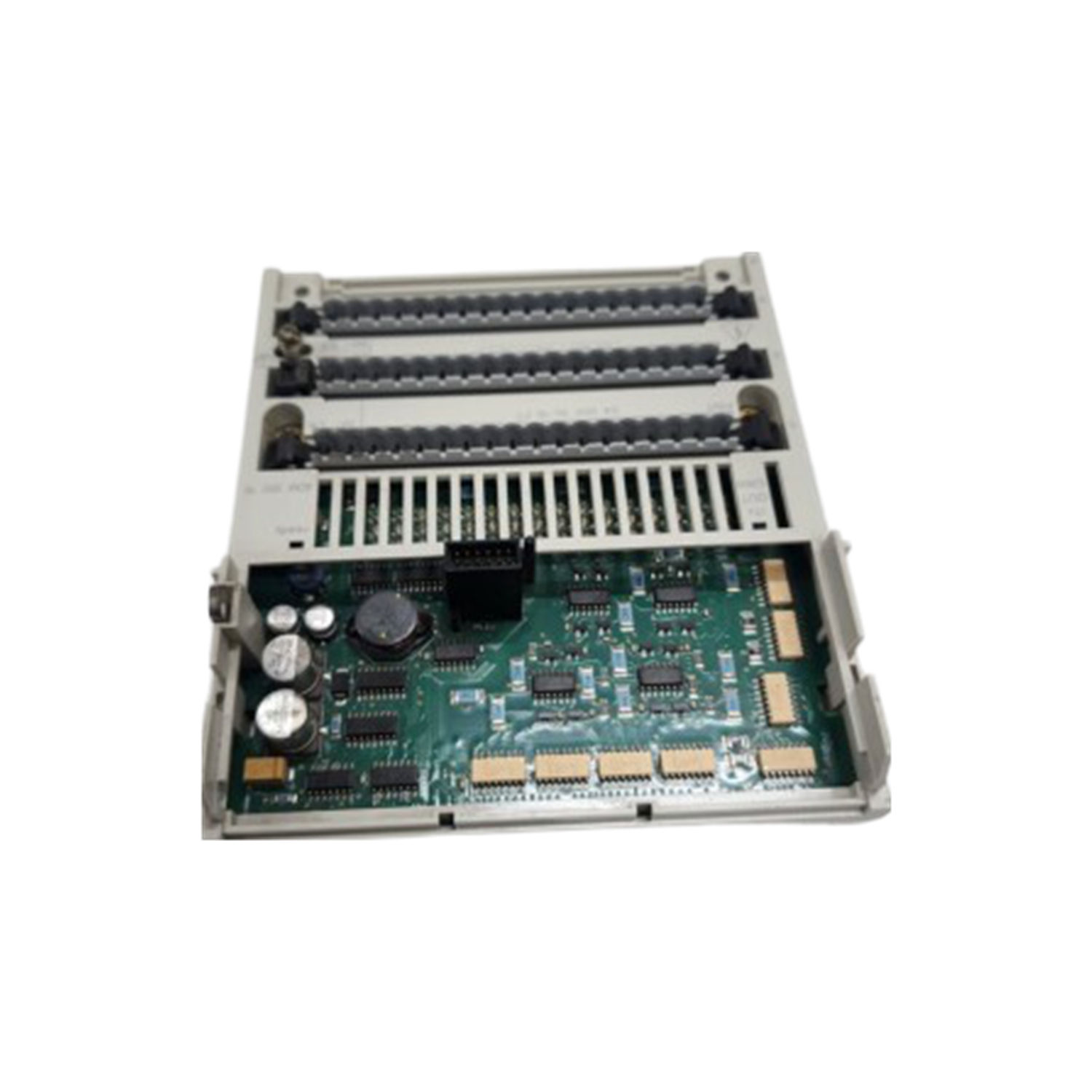

170ADM35015
Schneider Electric
Overview
The 170ADM35015 is a Discrete solid-state I/O module for DC applications in the Modicon Momentum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a discrete solid-state i/o module for dc applications, the 170ADM35015 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a Range Up to 30 V DC (24 V DC nominal) rating, an operating temperature range of 0 to 60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60 °C); do not exceed it during commissioning or in enclosed panels without airflow. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ADM35015, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon 170 rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ADM35015?
The 170ADM35015 is a discrete solid-state i/o module for dc applications in the Modicon Momentum range from Schneider Electric. It is described by the manufacturer as: Discrete solid-state I/O module for DC applications.
What are the key technical ratings of the 170ADM35015?
Its published highlights include Range Up to 30 V DC (24 V DC nominal), operating temperature 0 to 60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ADM35015 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ADM35015 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ADM35015?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170ADM35015 from Schneider Electric is designed as a discrete solid-state I/O module specifically for DC systems. With a configuration that includes 16 discrete input channels, it adheres to the IEC 1131-2 Type 1 standard. As an efficient solution, it offers 16 solid-state outputs while accommodating a range of input and output voltages.
Specifications
| Product Line | Modicon Momentum |
|---|---|
| Weight | 0.50 lbs (0.23 kg) |
| Input | Channels 16 discrete inputs, conforming to IEC 1131-2 Type 1 |
| Output | Channels 16 discrete solid-state outputs |
| Input | Voltage Range 3 to 30 V DC |
| Output | Voltage Range Up to 30 V DC (24 V DC nominal) |
| Input | Logic Negative logic (sinking) |
| Output | Logic Negative logic (sourcing) |
| Input | Current (State 1) ≥ 2.5 mA |
| Output | Current per Point 0.5 A (4 A per group, 8 A total per module) |
| Isolation | Voltage 500 V AC between channels and bus |
| Power | Dissipation ≤ 8 W |
| Operating Temperature | Range 0 to 60 °C |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
