170ADM35010
Schneider Electric
Overview

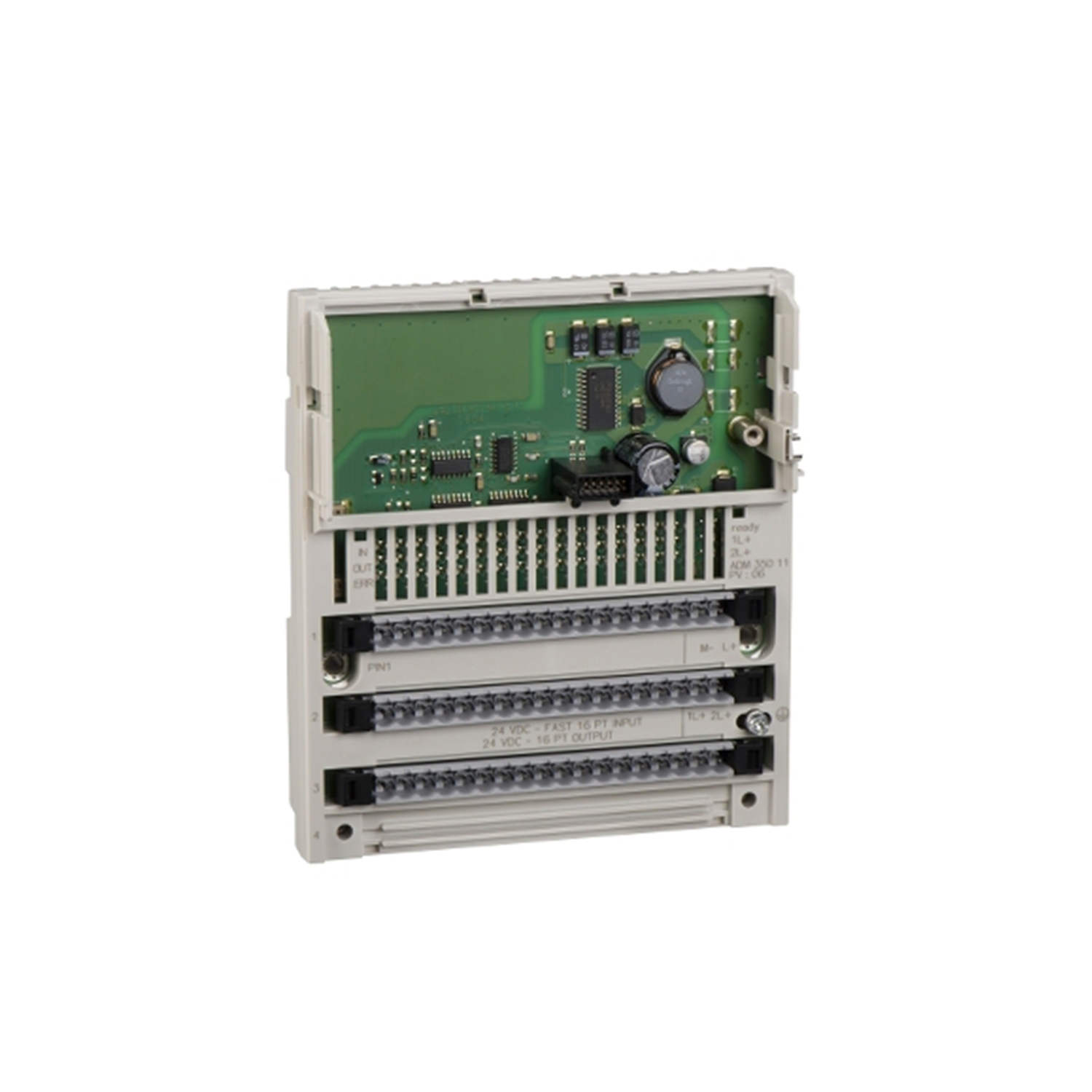

The 170ADM35010 is a Discrete solid state I/O base DC in the Modicon Momentum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon 170 ecosystem.
Application & Technical Notes
As a discrete solid state i/o base dc, the 170ADM35010 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0°C to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170ADM35010, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon 170 installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170ADM35010?
The 170ADM35010 is a discrete solid state i/o base dc in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Discrete solid state I/O base DC.
What are the key technical ratings of the 170ADM35010?
Its published highlights include operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170ADM35010 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170ADM35010 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170ADM35010?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 170ADM35010 from Schneider Electric forms part of the Modicon Momentum series. This discrete I/O base features 16 inputs and 16 outputs, arranged in two groups of eight outputs and one group of 16 inputs, making it versatile for various applications.
Description
| Note | Schneider Electric's 170ADM35010 unit is designed as a discrete I/O base with robust functionality. It consists of a total of 16 discrete input channels and 16 discrete output channels, organized into two groups housing eight outputs each, alongside a separate group featuring 16 inputs. This architecture makes it well-suited for varied configurations within industrial applications. The unit operates at a discrete input voltage of 24 V DC and can output the same voltage, accommodating levels up to 30 V DC. It follows a positive logic scheme for both its inputs and outputs while being compatible with solid-state switch outputs, thus ensuring efficient operation. To enhance durability, the 170ADM35010 features TC protective treatment, which is crucial in maintaining performance under challenging environments. It can handle a maximum relative humidity of 95%, provided there is no condensation present. This device can support a peak output current of up to 5 Amps, making it capable of managing substantial loads. In terms of temperature adaptability, it functions effectively within an operational range from 0°C to 60°C and can endure storage conditions between -40°C to 85°C, adding flexibility for various settings and applications. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Discrete solid state I/O base DC |
| Group of channels | 2 groups of 8 outputs 1 group of 16 inputs Discrete input logic Positive |
| Discrete output number | 16 |
| Discrete output logic | Positive |
Complementary
| Note | Input resistance 4 kOhm Peak output current 5 A |
|---|---|
| Fault type | Overload on output |
| Isolation between channels and bus | 500 V AC Terminals description PLC n°1 (L+)PW_POS (8)IN_DIS#8 (6)IN_DIS#6 (5)IN_DIS#5 TB (2)IN_DIS#2 (12)IN_DIS#12 (M-)PW_NEG (15)IN_DIS#15 (13)IN_DIS#13 (10)IN_DIS#10 (3)IN_DIS#3 (9)IN_DIS#9 (7)IN_DIS#7 (1)IN_DIS#1 (11)IN_DIS#11 (14)IN_DIS#14 (16)IN_DIS#16 (4)IN_DIS#4 Terminals description PLC n°2 (10)OUT_DIS#10 (6)OUT_DIS#6 (8)OUT_DIS#8 (1)OUT_DIS#1 (11)OUT_DIS#11 (4)OUT_DIS#4 (5)OUT_DIS#5 (15)OUT_DIS#15 (2L+)PW_POS TB_1 (7)OUT_DIS#7 (2)OUT_DIS#2 (14)OUT_DIS#14 (9)OUT_DIS#9 (13)OUT_DIS#13 (3)OUT_DIS#3 (1L+)PW_POS (12)OUT_DIS#12 |
| Local signalling | 16 LEDs for channel status |
| Height | 5.6 in (141.5 mm) |
| Width | 4.9 in (125 mm) |
| Depth | 1.9 in (47.5 mm) |
| Net Weight | 0.4 lb(US) (0.2 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595861000261 |
| Returnability | Yes |
| Country of origin | ID |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.323 in (5.900 cm) |
| Package 1 Width | 7.165 in (18.200 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package weight(Lbs) | 14.321 oz (406.000 g) |
