170AAI52040
Schneider Electric
Overview

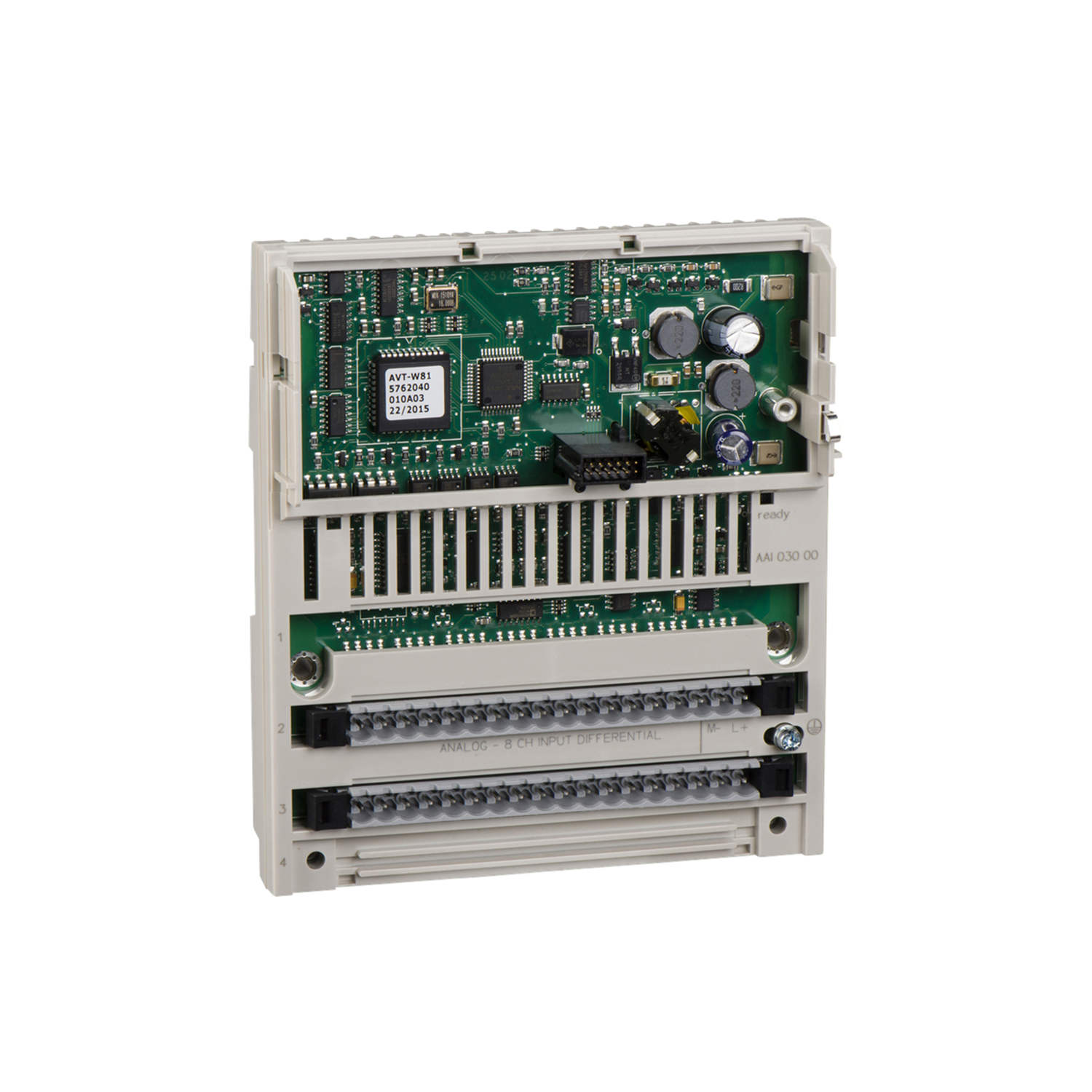

The 170AAI52040 is an Analogue input base in the Modicon Momentum automation platform range from Schneider Electric. It provides 4 channels and is built for signal interfacing within Modicon 170 systems.
Application & Technical Notes
As an analogue input base, the 170AAI52040 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 4 channels, an operating temperature range of 0°C to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170AAI52040, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon 170 rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170AAI52040?
The 170AAI52040 is an analogue input base in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Analogue input base.
What are the key technical ratings of the 170AAI52040?
Its published highlights include 4 channels, operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170AAI52040 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170AAI52040 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170AAI52040?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170AAI52040 is an analog input base that supports four differential channels. This device is part of the Modicon Momentum series and offers robust specifications for industrial applications.
Description
| Note | The analog input base, designated as the Schneider Electric 170AAI52040, is designed for effective signal acquisition in industrial environments. It comprises four channels that use differential analog input for enhanced accuracy. This base coherently processes data in a full 16-bit signed format, facilitating higher resolution for input values. Data updates occur every 500 milliseconds, making it suitable for applications that require timely responses. For electrical safety, the 170AAI52040 employs several layers of isolation. Each channel has 400V DC isolation for a duration of one minute, ensuring stable operation under varying electrical conditions. Additionally, it provides strong isolation of 500V AC between each channel and ground, as well as between the channels and the bus. This robust insulation guarantees reliable performance in complex systems. The temperature range for operational use is between 0°C and 60°C, with capabilities for storage between -40°C and 85°C. This wide range allows the device to function reliably in diverse environmental conditions. Moreover, the analog input base includes internal reverse polarity protection, enhancing its resilience against electrical mishaps. It accommodates a maximum relative humidity of 95% without condensation, making it suitable for various industrial applications. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Analogue input base |
| Analogue input number | 4 |
Complementary
| Data format | Full 16 bits signed |
|---|---|
| Update time | 500 ms |
| Reverse polarity protection | Internal |
| Height | 4.9 in (125 mm) |
| Width | 5.6 in (141.5 mm) |
| Depth | 1.9 in (47.5 mm) |
| Net Weight | 0.474 lb(US) (0.215 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3389110886498 |
| Returnability | Yes |
| Country of origin | ID |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
