170AAI03000
Schneider Electric
Overview

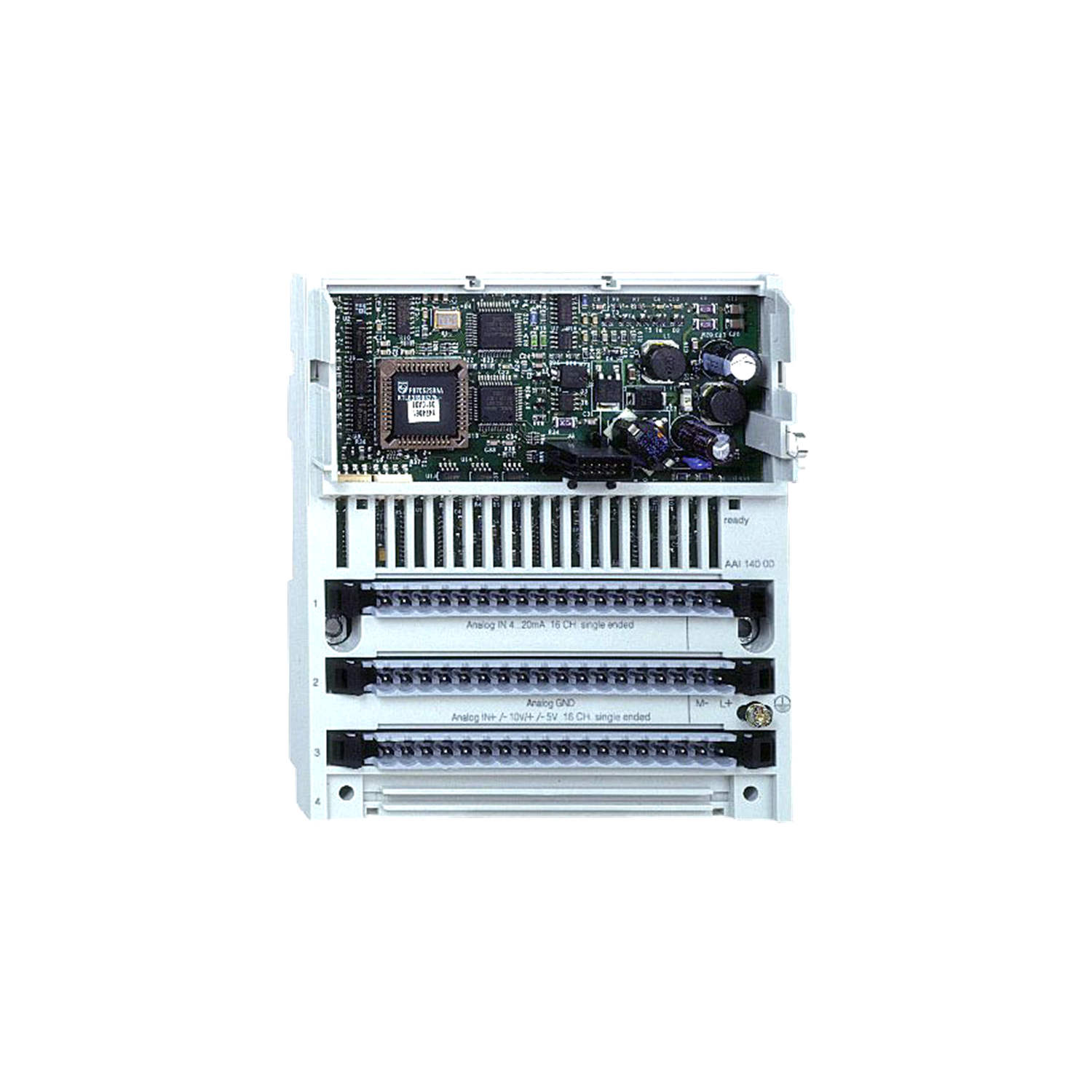

The 170AAI03000 is an Analogue input base in the Modicon Momentum automation platform range from Schneider Electric. It provides 8 channels and is built for signal interfacing within Modicon 170 systems.
Application & Technical Notes
As an analogue input base, the 170AAI03000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon 170 equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 8 channels, an operating temperature range of 0°C to 60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 170AAI03000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon 170 rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 170AAI03000?
The 170AAI03000 is an analogue input base in the Modicon Momentum automation platform range from Schneider Electric. It is described by the manufacturer as: Analogue input base.
What are the key technical ratings of the 170AAI03000?
Its published highlights include 8 channels, operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 170AAI03000 mounted or installed?
Installation follows the standard Modicon 170 mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 170AAI03000 compatible with my controller?
It is part of the Modicon 170 family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 170AAI03000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 170AAI03000 is designed as an analog input base capable of handling eight differential channels. It supports a 16-bit signed data format and has a conversion time of 12 ms.
Description
| Note | For applications requiring precise analog data handling, the 170AAI03000 from Schneider Electric presents an analog input base specifically developed for the Modicon Momentum series. This device features eight channels configured for differential analog inputs, accommodating complex measurements with accuracy. With a data format of full 16 bits signed integers, it ensures capable data representation. The conversion time is set at 12 milliseconds, enabling rapid processing of signal changes. Isolation ratings enhance operation and safety, providing 200 volts DC isolation between channels for one minute, while maintaining 500 volts AC between the channels and both ground and bus connections for one minute as well. Temperature is a critical performance factor. This analog input base can function within a temperature range from 0 degrees Celsius to 60 degrees Celsius, and it withstands storage temperatures spanning from -40 degrees Celsius to 85 degrees Celsius. Designed for environments with high humidity, it can tolerate maximum relative humidity levels of 95% without condensing. Further enhancing its resilience, the module incorporates internal protection against reverse polarity, safeguarding against wiring errors. With these specifications, the Schneider Electric 170AAI03000 provides a reliable solution for analog input needs in diverse industrial applications. |
|---|---|
| Range of Product | Modicon Momentum automation platform Product or Component Type Analogue input base |
| Analogue input number | 8 |
Complementary
| Data format | Full 16 bits signed |
|---|---|
| Reverse polarity protection | Internal |
| Height | 4.9 in (125 mm) |
| Width | 5.6 in (141.5 mm) |
| Depth | 1.9 in (47.5 mm) |
| Net Weight | 0.474 lb(US) (0.215 kg) |
Environment
| Protective treatment | TC |
|---|---|
| Marking | CE |
Ordering and shipping details
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 GTIN 3595861147683 |
| Returnability | Yes |
| Country of origin | ID |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 7.087 in (18.000 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package weight(Lbs) | 14.109 oz (400.000 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
