140EIA92100C
Schneider Electric
Overview

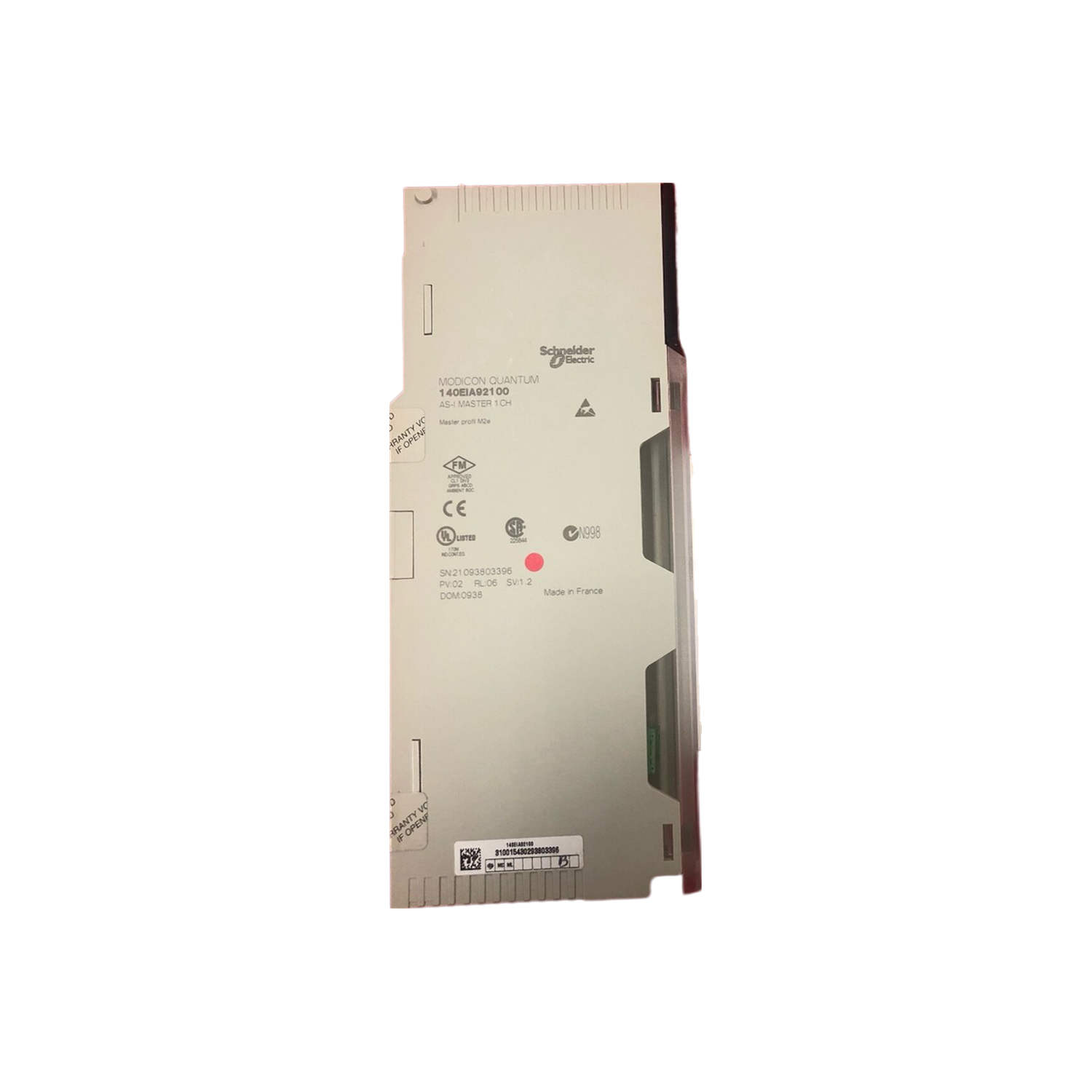

The 140EIA92100C is an AS-Interface master module in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As an as-interface master module, the 140EIA92100C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140EIA92100C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140EIA92100C?
The 140EIA92100C is an as-interface master module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: AS-Interface master module.
What are the key technical ratings of the 140EIA92100C?
Its published highlights include operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140EIA92100C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140EIA92100C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140EIA92100C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140EIA92100C module from Schneider Electric is a master module used within the AS interface standards, particularly version V1. With a maximum cycle time of just 5 milliseconds, it efficiently handles various automation tasks.
Description
| Note | The Schneider Electric 140EIA92100C is an AS interface master module utilized specifically within the Modicon Quantum series. This powerful device is aligned with AS-i version V1 and supports standardized addressing. It is capable of processing discrete inputs and outputs, with a total of 124 channels available for each function. Efficiency is a key feature, as the module boasts a rapid maximum cycle time of 5 milliseconds, enabling it to effectively manage data exchanges in real-time applications. The 140EIA92100C can communicate with up to 31 server devices, enhancing its versatility within complex setups. Transmission occurs at a rate of 167 kbit/s, ensuring a swift and efficient operation. Safety features include internal reverse polarity protection, providing an extra layer of security for the module's operation. This unit has a specified current consumption of no more than 100 mA, ensuring it remains energy-efficient while running. It carries the CE marking, indicating compliance with relevant European directives. At a weight of 0.45 kg, the module is relatively light and manageable. The design integrates protection class IP20, making it suitable for use in environments where dust exposure is limited. Operating conditions are optimal within a temperature range from 0 to 60 °C, catering to a wide array of industrial applications. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type AS-Interface master module |
Complementary
| Note | Range compatibility AS-Interface cabling system AS-i version V1 Actuator sensor interface profile [AS-i] M2 Addressing Standard Maximum cycle time 5 ms |
|---|---|
| Bus length | 0…100 m without repeater Discrete input number 124 |
| Discrete output number | 124 |
| Number of server device(s) | 31 Number of module per PLC 2 per Quantum PLC distributed drop 4 per Quantum PLC local drop 4 per Quantum PLC remote drop |
| Supply | Via AS-Interface line [Us] rated supply voltage 30 V DC AS-i cabling system cycle time 156 x (n + 1) µs with 31 slave(s) 156 x (n + 2) µs Transmission rate 167 kbit/s |
| Reverse polarity protection | Internal |
| Local signalling | 32 LEDs for slave addresses and state of slave I/O bits |
| Electrical connection | 1 male connector SUB-D 3 pins for AS-Interface link |
| Current consumption | <= 100 mA |
| Typical current consumption | 60 mA 30 V DC |
| Marking | CE |
| Net weight | 0.45 kg |
Environment
| IP degree of protection | IP20 |
|---|---|
| Ambient air temperature for operation | 0…60 °C |
| Product certifications | UL FM |
| C-Tick | CSA GOST |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 485.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.396 kg |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
