140DRC83000C
Schneider Electric
Overview

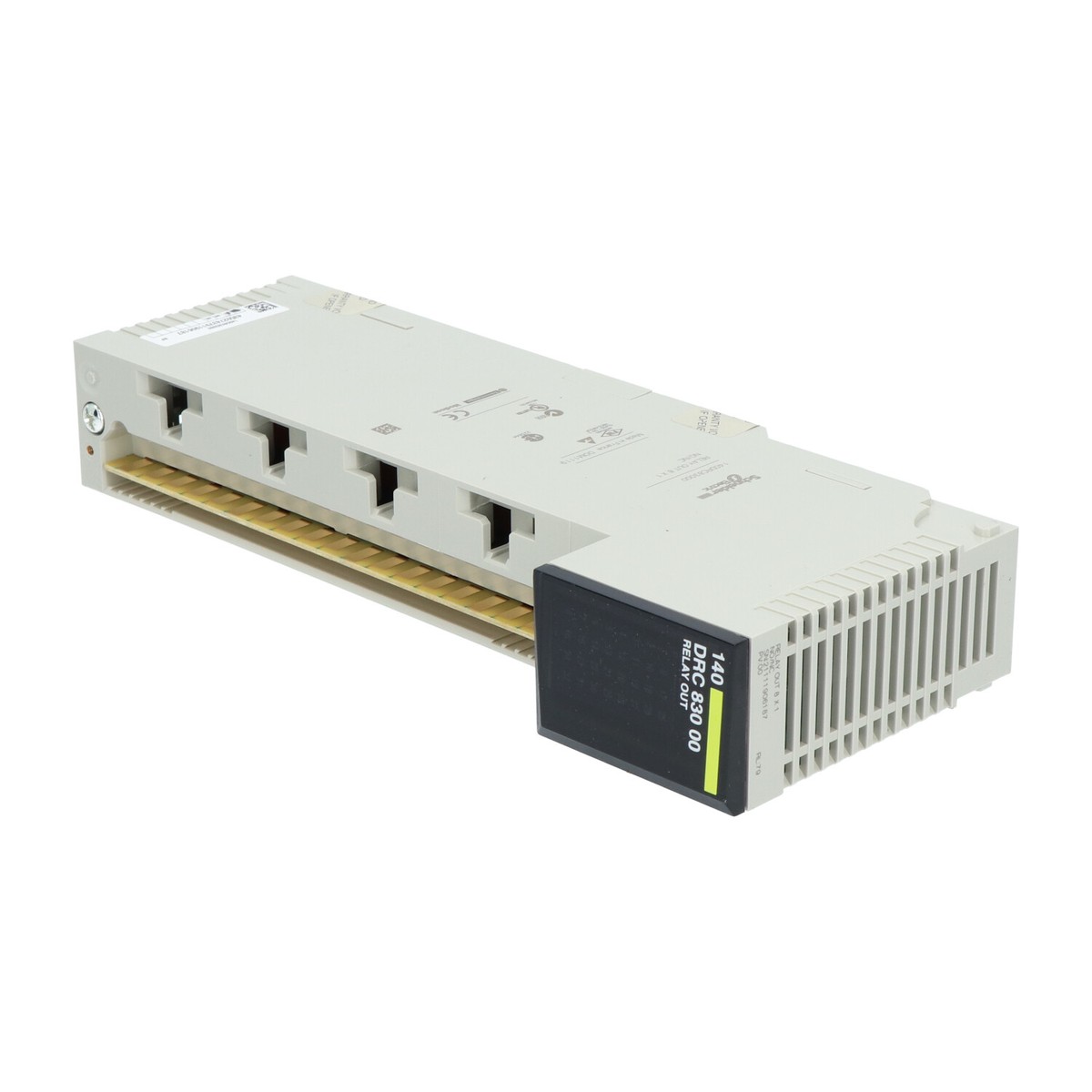

The 140DRC83000C is a Relay discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a relay discrete output module, the 140DRC83000C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DRC83000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DRC83000C?
The 140DRC83000C is a relay discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Relay discrete output module.
What are the key technical ratings of the 140DRC83000C?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DRC83000C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DRC83000C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DRC83000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DRC83000C is a discrete output module from Schneider Electric's Modicon Quantum series. This unit offers eight output channels and supports multiple voltage ranges, making it versatile for various applications.
Description
| Note | The Schneider Electric 140DRC83000C is engineered as a discrete output module within the Modicon Quantum lineup. It is designed to operate efficiently with eight individual output channels. The contact structure consists of one Normally Open (NO) and one Normally Closed (NC) contact, categorized under Form C types. This flexibility provides adaptability for various control tasks. The output voltage specifications are broad, accommodating 20 to 250 V AC, along with options for 30 to 150 V DC and 5 to 30 V DC. This flexibility allows for integration into multiple systems. Surge currents can reach up to 20 A, ensuring robust performance under transient conditions. The module is notable for its mechanical durability, boasting up to 10 million operational cycles, which underscores its reliability in demanding environments. It requires an addressing requirement of 0.5 output word to facilitate integration during setup. The weight of the device is a manageable 0.3 kg, and it draws a bus current of 560 mA for efficient functioning. Designed to perform in ambient temperatures ranging from 0 to 60 °C, this module is suitable for numerous applications. It features a CE marking and includes conformal coating to enhance protective treatment, ensuring longevity and consistent functionality. Additionally, compliance with UL 508 and CSA standards verifies its safety for industrial use. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Relay discrete output module |
| Discrete output number | 8 |
Complementary
| Contacts type and composition | 1 NO/NC Contact form Form C |
|---|---|
| Discrete output voltage | 20...250 V AC 30...150 V DC 5...30 V DC |
| Addressing requirement | 0.5 output word |
| Maximum load current | 100 mA 30...50 V DC L/R = 10 ms 2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4 3 A 250/30 V AC/DC 300 mA 30...50 V DC resistive 5 A 250/30 V AC/DC resistive 140 °F (60 °C) |
| Surge current | 20 A 10 ms capacitive |
| Switching frequency | 30 Hz resistive F = 0.5/I²L inductive Switching capacity in VA 1250 VA resistive Maximum response time on input open 10 ms at state 0 to state 1 20 ms at state 1 to state 0 Mechanical durability 10000000 cycles |
| Electrical durability | 100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 100000 cycles 5 A 30 V DC resistive 200000 cycles 5 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive |
| Output overvoltage protection | Internal by varistor, 275 V |
| Isolation between channels | 1780 Vrms AC for 1 minute 2500 V DC |
| Isolation between channels and bus | 1780 Vrms AC for 1 minute 2500 V DC for 1 minute |
| Power dissipation | 2.75 W + (0.5 x the number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 8 LEDs (green) for input status |
| Bus current requirement | 560 mA |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | RINA FM Class 1 Division 2 GOST |
| C-tick | DNV GL RMRS ABS |
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 GTIN 3595861136168 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.4 in (16.3 cm) |
| Package 1 Width | 1.8 in (4.5 cm) |
| Package 1 Length | 12.3 in (31.2 cm) |
| Package weight(Lbs) | 17.6 oz (498 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
