140DIO33000C
Schneider Electric
Overview

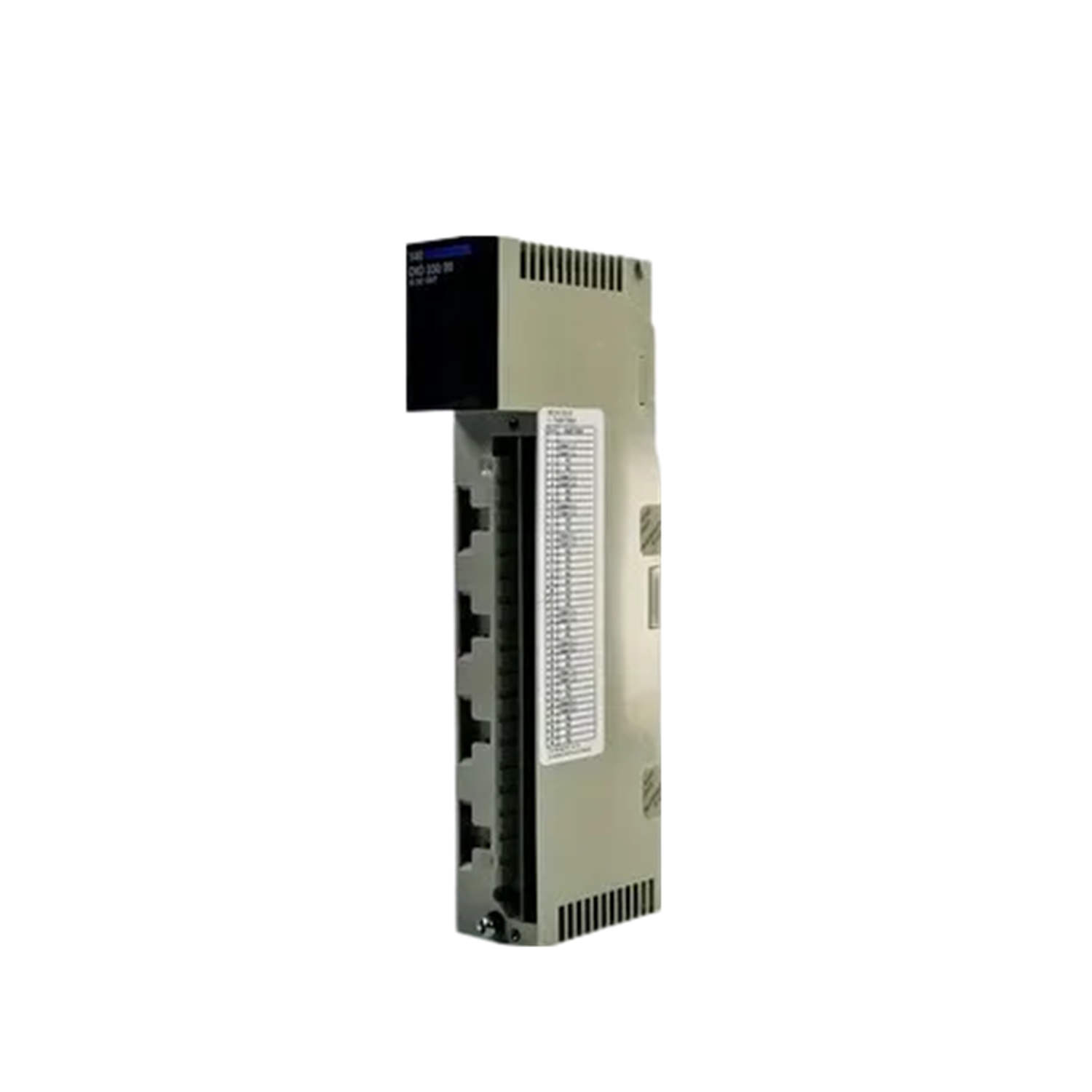

The 140DIO33000C is an Intrinsically safe discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As an intrinsically safe discrete output module, the 140DIO33000C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include open collector signal handling, a 24 V rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DIO33000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DIO33000C?
The 140DIO33000C is an intrinsically safe discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Intrinsically safe discrete output module.
What are the key technical ratings of the 140DIO33000C?
Its published highlights include 24 V, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DIO33000C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DIO33000C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DIO33000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140DIO33000C module is designed as an intrinsically safe discrete output solution. It operates effectively in environments up to 5000 meters and supports output specifications necessary for demanding conditions.
Description
| Note | The Modicon series includes the 140DIO33000C, which is classified as an intrinsically safe discrete output module. It is designed for operating altitudes of up to 5000 meters. Suitable for various hazardous locations, this module is rated for Zone 20, 21, and 22 applications. ESD protection is robust, providing resistance of 4 kV for contact and 8 kV for air discharges. With an operating temperature range from 0 to 60°C, it can endure a variety of industrial environments. In storage conditions, it can withstand temperatures between -40 and 85°C, ensuring functionality in extreme conditions. The device also meets EMF resistance standards, maintaining stability at 10 V/m across frequencies from 80 to 2000 MHz. The output type is open collector, with an output voltage set at 24 V. In terms of load management, it supports a maximum current of 360 mA per module, while individual points can handle 45 mA. The off-state leakage current is minimal, at 0.4 mA per point, contributing to efficient energy usage. Finally, the module is designed to operate in humidity levels up to 95%, provided there is no condensation, indicating its durability in moisture-prone areas. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Intrinsically safe discrete output module |
| Software designation | Concept V2.2 and above ProWORX Unity Pro |
Complementary
| Product destination | In conjunction with products for zone 20, 21 or 22 |
|---|---|
| Discrete output voltage | 24 V |
| Discrete output type | Open collector |
| Maximum load current | 360 mA per module 45 mA per point off state leakage current 0.4 mA per point |
| Response time | 1 ms resistive at state 0 to state 1 1 ms resistive at state 1 to state 0 |
| Protection Type | Internal fuse Transient voltage suppression Hot swapping fallback Not allowed per intrinsic safety standards |
| Power dissipation in W | 5 W |
| Isolation between channels and bus | 2500 V DC for 1 minute 1780 V 47...63 Hz AC |
| Marking | II1 G/D-EEx ia IIC CE |
| Bus current requirement | 2.2 A |
| Module format | Standard |
| Net Weight | 0.99 lb(US) (0.45 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | Directive ATEX 94/9/EC EN 50039 EN 50014 |
| CSA C22.2 No 142 | UL 508 EN 50020 EN 50284 EN 50281-1-1 Dust zone Outside zone |
| Product Certifications | SIRA 02ATEX2345X FM Class 1 Division 2 |
| C-tick | GOST |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 GTIN 00785901486398 |
| Returnability | No |
| Country of origin | US |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
