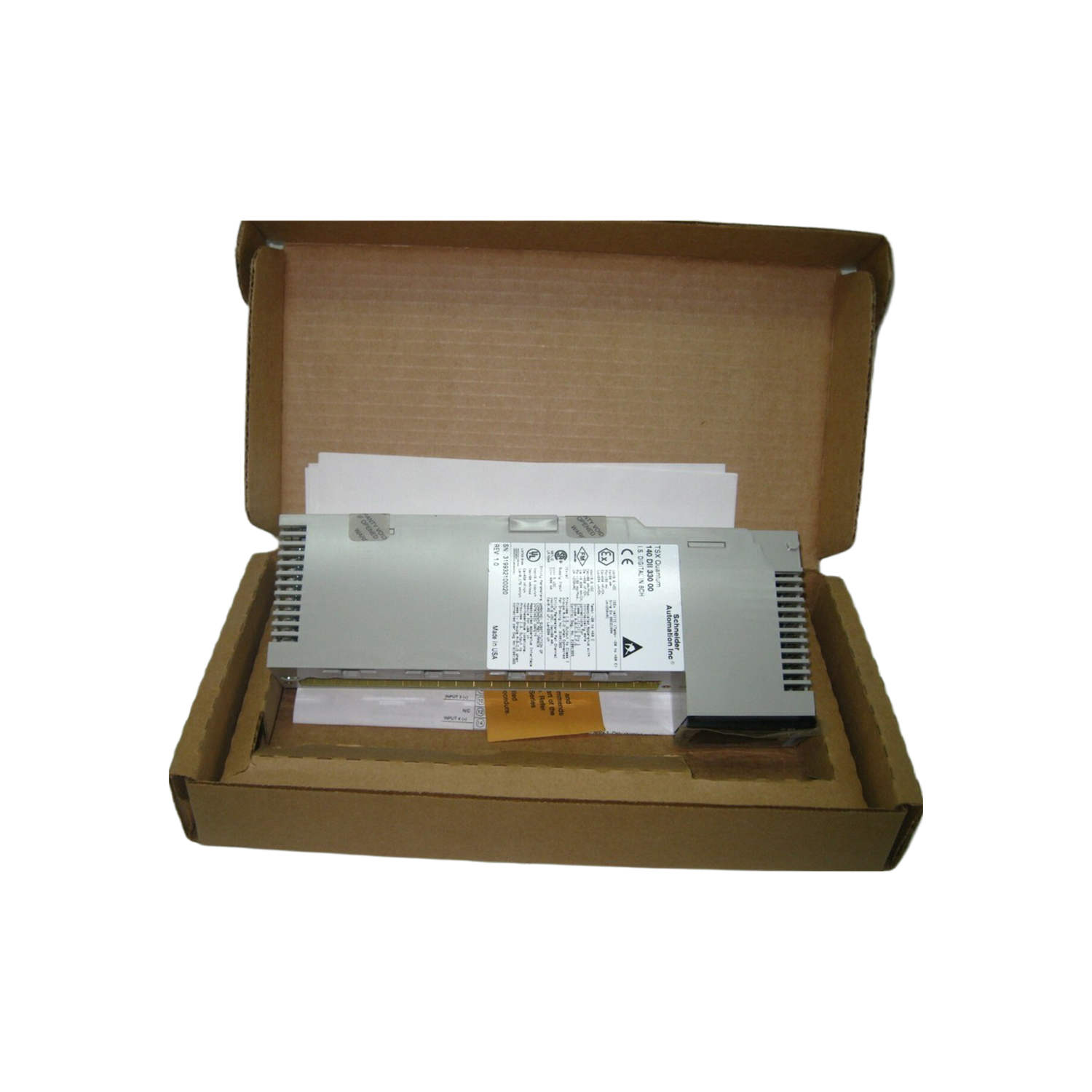

140DII33000
Schneider Electric
Overview
The 140DII33000 is a Modicon Quantum in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a modicon quantum, the 140DII33000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0°C to 60°C, rack mountable mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DII33000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DII33000?
The 140DII33000 is a modicon quantum in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Modicon Quantum.
What are the key technical ratings of the 140DII33000?
Its published highlights include operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DII33000 mounted or installed?
It uses Rack Mountable. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140DII33000 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DII33000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140DII33000 is part of the Modicon Quantum series, specifically designed as a discrete input module. It features 8 channels and operates efficiently within an input voltage of 8V.
Description
| Note | The part number 140DII33000 by Schneider Electric is an advanced module within the Modicon Quantum series. This device specializes in handling discrete inputs with a total of 8 channels available. It operates at a no-load voltage of 8 volts. Supporting a switching frequency of 100 Hz, it ensures quick response times for dynamic control applications. In terms of performance, this module provides a short-circuit current of 8 mA and features a switching hysteresis current of 0.2 mA, aiding in stable operation. The internal resistance is noted at 2.5 kOhms, effectively managing the input load requirements. The response time is impressive, clocking in at just 1 millisecond for resistive loads, making it suitable for real-time monitoring and control. For environmental conditions, the 140DII33000 is rated for operation within a temperature range of 0°C to 60°C, allowing deployment in typical industrial settings. In storage, this module withstands a broader temperature spectrum from -40°C to 85°C. It also supports humidity levels up to 95% without any risk of condensation, enhancing reliability in various environments. This module is rack mountable, facilitating straightforward installation in existing setups. It has a power dissipation limit of 2 watts, reflecting efficient energy management. The CE marking demonstrates compliance with essential safety standards, ensuring that this intrinsically safe input module meets regulatory requirements for industrial applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
