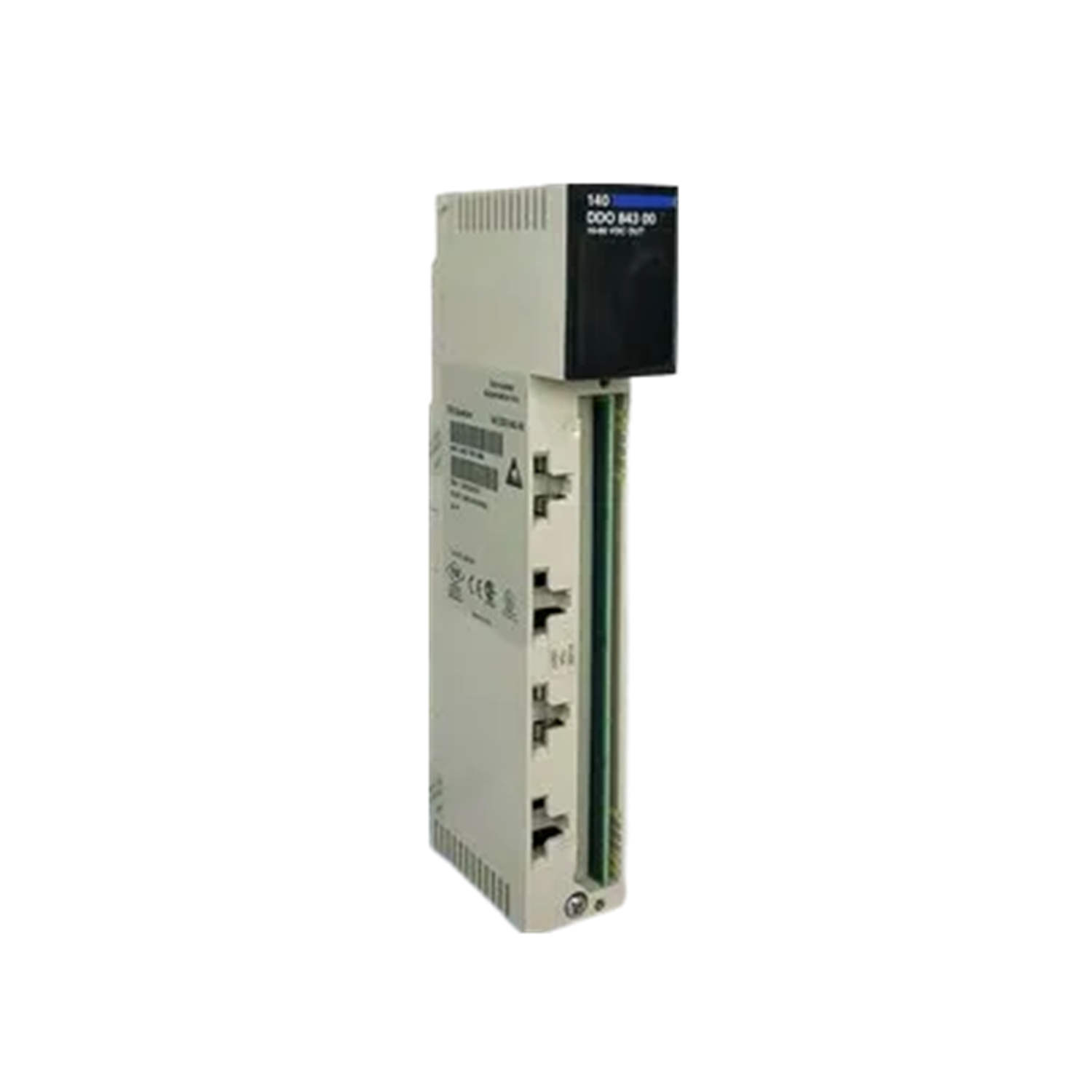

140DDO84300C
Schneider Electric
Overview
The 140DDO84300C is a Dc discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a dc discrete output module, the 140DDO84300C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include a Rating 10 to 60 Volts DC rating, an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…85 °C. Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DDO84300C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DDO84300C?
The 140DDO84300C is a dc discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Dc discrete output module.
What are the key technical ratings of the 140DDO84300C?
Its published highlights include Rating 10 to 60 Volts DC, operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DDO84300C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DDO84300C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DDO84300C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Schneider Electric’s 140DDO84300C is a discrete output module in the Modicon Quantum series, offering a total of 16 outputs across two channel groups. This module operates within a voltage range of 10 to 60 Volts DC and features local signaling through 17 green and one red LED indicators, enhancing operational visibility.
Description
| Note | The 140DDO84300C discrete output module, a product of Schneider Electric's Modicon Quantum series, is designed for versatile control applications. It consists of 16 discrete outputs, which are organized into two distinct channel groups, each containing eight outputs. The module supports output voltages ranging from 10 to 60 Volts DC, with an absolute maximum output voltage rating of 72 Volts under permanent conditions. This module consumes a bus current of 160 milliamperes during operation, efficiently managing power requirements. Local signaling is facilitated by 17 green LEDs and one red LED on the front panel, providing immediate feedback about the status of the module. With a conformal coating applied, the 140DDO84300C ensures protection against potentially harmful environmental factors. It can operate in ambient temperatures between 0 to 60°C in non-condensing environments, while it withstands storage temperatures from -40 to 85°C. The module has a power dissipation of roughly 1 Watt, making it energy efficient. Additionally, an internal protection mechanism consisting of an 8-amp fuse safeguards each output group from overcurrent situations. This design feature ensures operational reliability, along with a very low leakage current, less than 1 milliamperes, maintaining system integrity during performance. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type Dc discrete output module |
| Discrete output number | 16 |
Complementary
| Group of channels | 2 groups of 8 |
|---|---|
| Discrete output logic | Positive logic (source) |
| Addressing requirement | 1 output word |
| Discrete output voltage | 10...60 V DC |
| Output voltage limits | 10.2...72 V |
| Absolute maximum output | 72 V permanent |
| Maximum voltage drop | <1 V 2 A |
| Maximum load current | 12 A per module 6 A per group |
| Surge current | 7.5 A for 50 s |
| Response time | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| Maximum leakage current | 1 mA 60 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
| Associated fuse rating | 2 A each point 8 A per group |
| Isolation between channels and bus | 2500 Vrms DC for 1 minute |
| Isolation between group | 700 Vrms DC for 1 minute |
| Protection type | Internal output protection by 8 A fuse per group |
| Power dissipation | 1 W + (1 V x total module load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Bus current requirement | 160 mA |
| Module format | Standard |
| Net weight | 0.45 kg |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product certifications | N/A |
| C-Tick | FM Class 1 Division 2 RMRS GOST |
| Standards | N/A |
| CSA C22.2 No 142 | UL 508 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.3 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 31.2 cm |
| Package 1 Weight | 680.0 g |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
