140DDO35310C
Schneider Electric
Overview

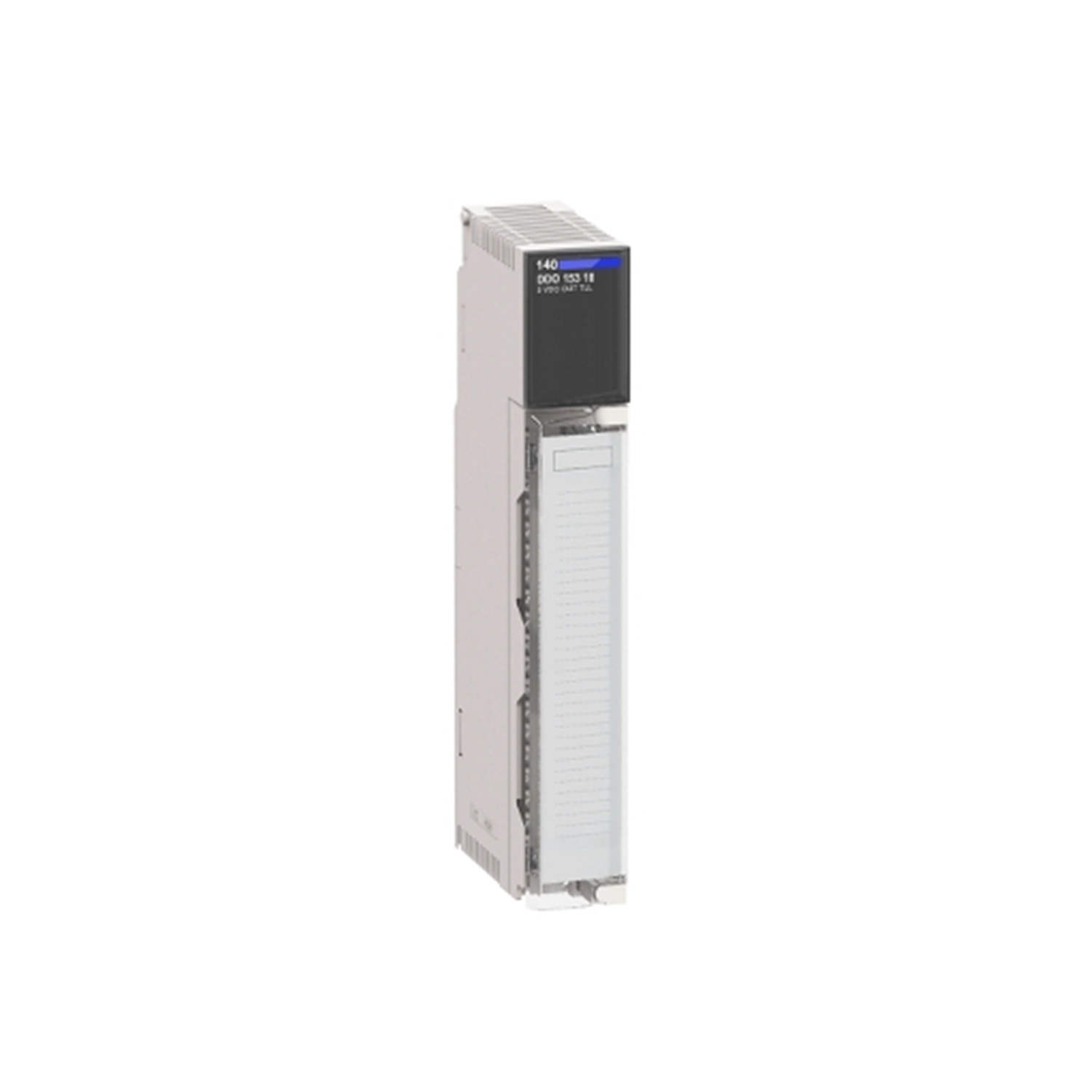

The 140DDO35310C is a Dc discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a dc discrete output module, the 140DDO35310C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include negative logic (sink) signal handling, a 24 V DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DDO35310C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DDO35310C?
The 140DDO35310C is a dc discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Dc discrete output module.
What are the key technical ratings of the 140DDO35310C?
Its published highlights include 24 V DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DDO35310C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DDO35310C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DDO35310C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140DDO35310C is a discrete output module from the Modicon Quantum series, featuring 32 output channels. This module operates under negative logic with a 24 V DC output voltage, providing reliable performance in various industrial applications.
Description
| Note | The 140DDO35310C is a discrete output module featured in Schneider Electric's Modicon Quantum series, supporting 32 output channels. This module utilizes negative logic, functioning effectively as a sink. It requires an addressing scheme of 2 output words. Its output voltage is rated at 24 V DC, allowing for integration with various control systems. Significantly, the module has a maximum leakage current limit of 0.4 mA, ensuring low power loss. It also handles surge current up to 5 A, which is essential for handling transient loads. Power dissipation per module is calculated at 2.0 W in addition to 0.4 V multiplied by the total load current, contributing to efficient energy management. The 140DDO35310C is built in a standard format and weighs 0.45 kg. It has a bus current requirement of 330 mA. For reliable operation, it is designed for ambient temperatures ranging from 0 to 60 °C. Additionally, it is compliant with important standards such as UL 508 and CSA, signaling its robust design and application in industrial environments. A conformal coating is applied for added protection against environmental factors. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Dc discrete output module |
| Discrete output number | 32 |
Complementary
| Group of channels | 4 groups of 8 |
|---|---|
| Discrete output logic | Negative logic (sink) |
| Addressing requirement | 2 output words |
| Discrete output voltage | 24 V DC |
| Output voltage limits | 19.2...30 V |
| Absolute maximum output | 50 V 1 s decaying pulse |
| Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | 16 A per module 4 A per group |
| Surge current | 5 A 1 ms |
| Response Time | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| Maximum leakage current | 0.4 mA 30 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
| Maximum tungsten load | 12 W 24 V |
| Fault indication | Loss of field power Blown fuse |
| Associated fuse rating | 3 A each point 5 A per group |
| Isolation between channels and bus | 1780 Vrms DC for 1 minute |
| Isolation between group | 500 Vrms DC for 1 minute |
| Protection Type | Internal output protection by 5 A fuse per group |
| Power dissipation | 2.0 W + (0.4 V x total load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 330 mA |
| Module format | Standard |
| Net Weight | 0.99 lb(US) (0.45 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | RMRS GOST |
| C-tick | RINA FM Class 1 Division 2 |
| Standards | N/A |
| CSA C22.2 No 142 | UL 508 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 GTIN 3595861137141 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.4 in (16.3 cm) |
| Package 1 Width | 1.8 in (4.5 cm) |
| Package 1 Length | 12.3 in (31.2 cm) |
| Package weight(Lbs) | 16.6 oz (470 g) |
