140DDO15310C
Schneider Electric
Overview

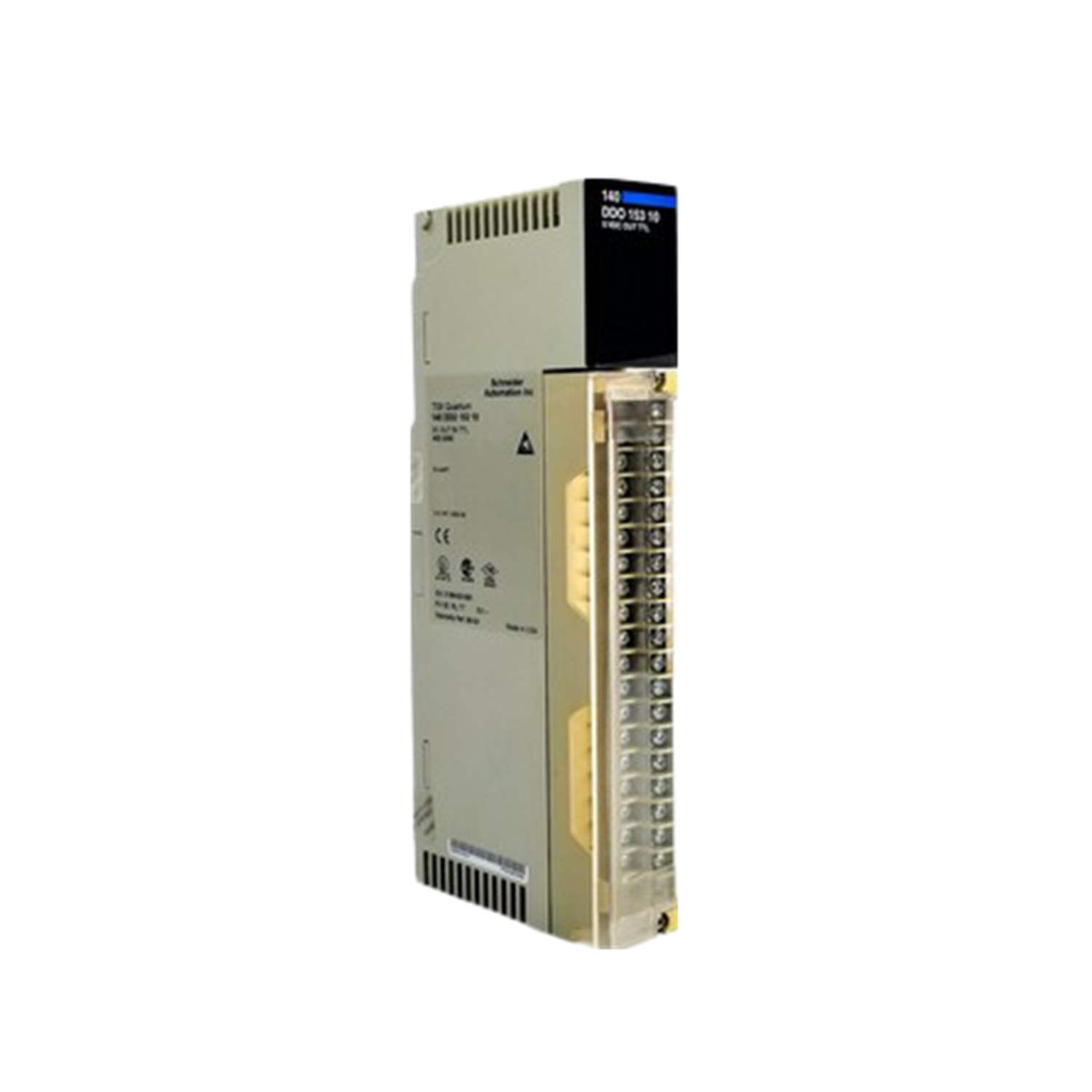

The 140DDO15310C is a TTL discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a ttl discrete output module, the 140DDO15310C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include ttl positive (sink) signal handling, a 5 V DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DDO15310C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DDO15310C?
The 140DDO15310C is a ttl discrete output module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: TTL discrete output module.
What are the key technical ratings of the 140DDO15310C?
Its published highlights include 5 V DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DDO15310C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DDO15310C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DDO15310C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Modicon Quantum 140DDO15310C from Schneider Electric functions as a TTL discrete output module. It comprises 32 channels capable of sourcing TTL positive signals with an output voltage of 5 V DC.
Description
| Note | The Schneider Electric 140DDO15310C TTL discrete output module belongs to the Modicon Quantum series. This module offers 32 output channels that deliver TTL positive (sink) signals. Designed for compatibility with various systems, it operates at a low output voltage of 5 V DC, enabling efficient performance in typical industrial applications. Addressing the module requires two output words, facilitating integration into larger control schemes. It features an internal pullup resistor rated at 440 ohms, which aids in signal integrity. During operation, the module can withstand surge currents up to 750 Amperes, ensuring resilience against electrical spikes. The unit has a rated power dissipation of 4 watts, making it energy-efficient in continuous use. With a bus current requirement of 350 mA, it is essential to consider when designing systems to ensure proper power supply allocation. This module is designed to function in environmental conditions ranging from 0 to 60 °C, reinforcing its versatility across different applications. Weighing just 0.45 kilograms, the 140DDO15310C maintains a compact footprint in various control configurations. Compliance with UL 508 and CSA standards enhances its reliability in industrial environments. The protective conformal coating further safeguards against environmental factors, ensuring long-term stability and operational integrity. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type TTL discrete output module |
| Discrete output number | 32 |
Complementary
| Group of channels | 4 groups of 8 channels |
|---|---|
| Discrete output type | TTL Positive (sink) |
| Addressing requirement | 2 output words |
| Discrete output voltage | 5 V DC |
| Voltage state 1 guaranteed | <= 0.2 V [Us] rated supply voltage 4...5.5 V DC |
| Absolute maximum output | 15 V 0.0013 s decaying voltage pulse DC Internal pullup resistor 440 Ohm |
| Maximum load current | <= 2.4 A per module <= 600 mA each group <= 75 mA each point |
| Surge current | 750 A 0.5 ms between each point |
| Response time | <= 250 µs at state 0 to state 1 resistive <= 250 µs at state 1 to state 0 resistive |
| Protection Type | Output protection by transient voltage suppression Internal by fuse |
| Fault indication | Blown fuse Loss of field power |
| Power dissipation | 4 W |
| Maximum supply current | 0.4 A |
| Isolation between group | 500 Vrms for 1 minute |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 350 mA |
| Current consumption | 2800 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.99 lb(US) (0.45 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | FM Class 1 Division 2 |
| C-tick | RMRS GOST |
| Standards | N/A |
| CSA C22.2 No 142 | UL 508 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 GTIN 3595861135895 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.4 in (16.3 cm) |
| Package 1 Width | 1.8 in (4.5 cm) |
| Package 1 Length | 12.3 in (31.2 cm) |
| Package weight(Lbs) | 15.7 oz (446.0 g) |
