140DDO15310
Schneider Electric
Overview

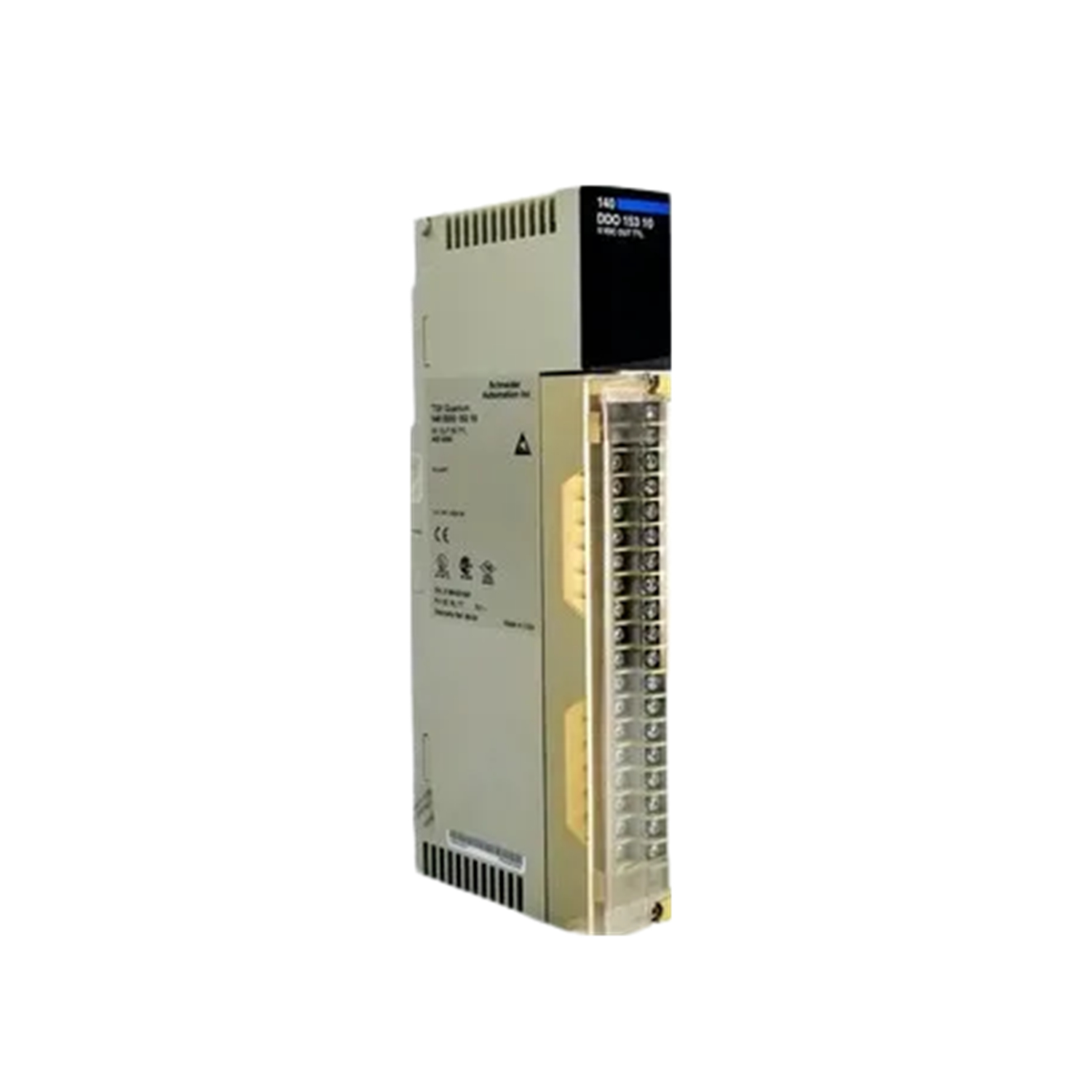

The 140DDO15310 is an output module in the Modicon Quantum range from Schneider Electric. Discrete Output Module Modicon Quantum 32-point TTL 5V DC.
Application & Technical Notes
As a modicon quantum device, the 140DDO15310 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include ttl output, 5 v dc, positive logic (sink) signal handling, a 5 V DC (backplane) rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DDO15310, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DDO15310?
The 140DDO15310 is a modicon quantum device in the Modicon Quantum range from Schneider Electric. It belongs to the Modicon Quantum automation family.
What are the key technical ratings of the 140DDO15310?
Its published highlights include 5 V DC (backplane). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DDO15310 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DDO15310 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DDO15310?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Discrete Output Module Modicon Quantum 32-point TTL 5V DC
I/O Specifications
| Channels | 32 points (4 groups × 8) |
|---|---|
| Signal type | TTL output, 5 V DC, positive logic (sink) |
| Voltage range | 5 V DC |
| Output current | 75 mA per point, 600 mA per group, 2.4 A total |
| Isolation | Group-to-group: 500 Vrms for 1 min |
| Diagnostics | Blown fuse, loss of field power (LED indication) |
| Response time | ≤ 250 µs (resistive load) |
| Slots required | 1 |
Electrical
| Supply voltage | 5 V DC (backplane) |
|---|---|
| Bus current | 350 mA @ 5 V DC |
| Power consumption | 4 W |
Environmental
| Operating temperature | Not available |
|---|---|
| Storage temperature | Not available |
| Relative humidity | Not available |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 250 × 40.34 × 103.85 mm |
|---|---|
| Weight | 0.3 kg |
Lifecycle
| Discontinued (End of Sale) (Last verified | 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
