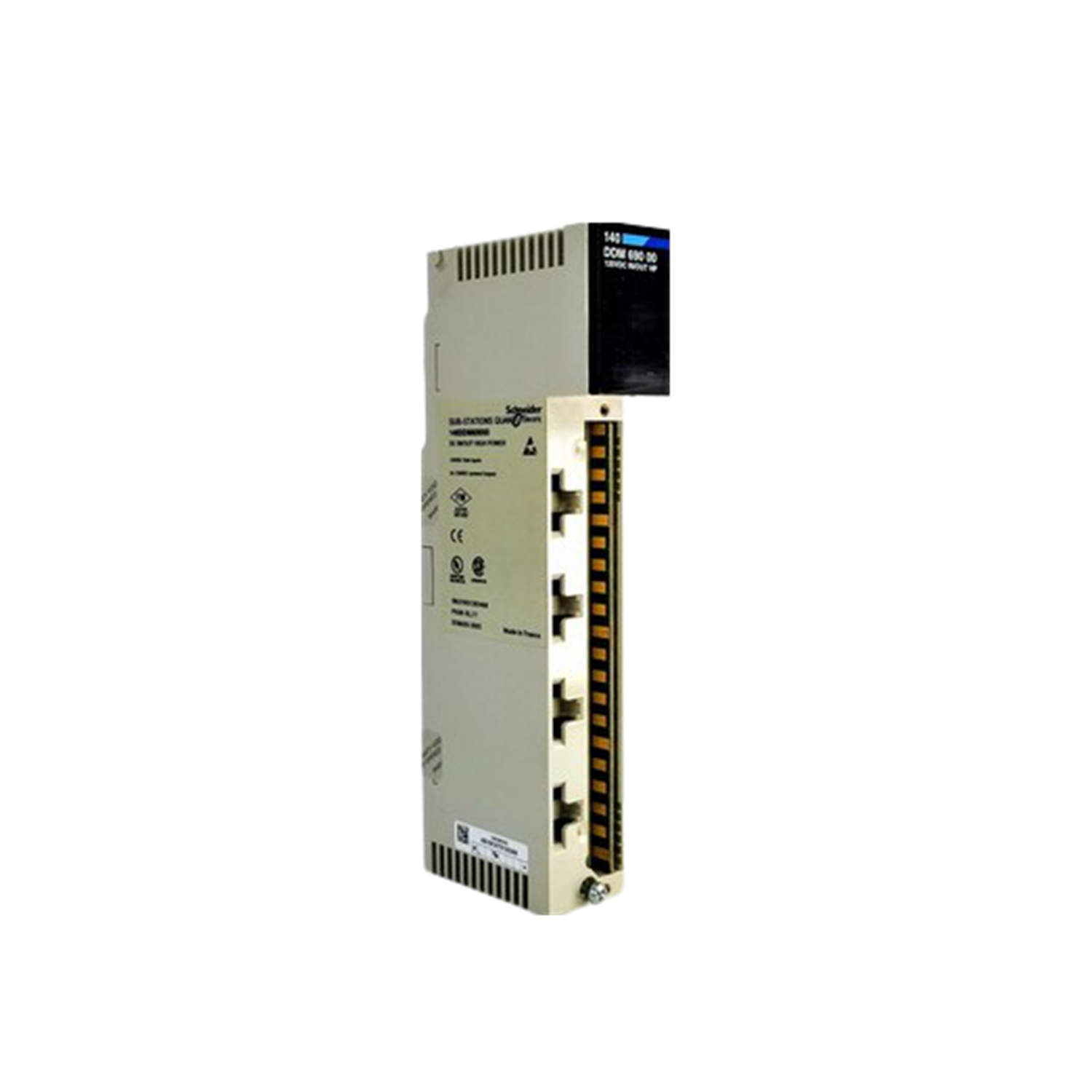

140DDM69000
Schneider Electric
Overview
The 140DDM69000 is a Modicon Quantum in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a modicon quantum, the 140DDM69000 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DDM69000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DDM69000?
The 140DDM69000 is a modicon quantum in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Modicon Quantum.
What are the key technical ratings of the 140DDM69000?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140DDM69000 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DDM69000 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DDM69000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DDM69000 I/O module from Schneider Electric is designed for applications in the Modicon Quantum series. This unit accommodates discrete input and output operations with a total of 8 I/O points, including 4 discrete inputs and 4 discrete outputs.
Description
| Note | The Schneider Electric 140DDM69000 module serves an integral role in the Modicon Quantum setup, functioning as a discrete I/O module. This component offers an efficient solution with 8 I/O points in total: 4 inputs and 4 outputs. It supports discrete input logic in a sinking configuration, ensuring accurate signal reception. The outputs also provide flexibility, allowing either sinking or sourcing operation, and are built utilizing solid-state technology, which enhances reliability and performance in demanding conditions. Voltage capabilities are notable, accommodating a range between 19.2 VDC and 156.2 VDC. The component limits leakages to a maximum of 1.2 mA at 150 VDC, ensuring safe operation. For effective communication, the bus current requirement is specified at 350 mA. Weighing only 0.3 kg (0.7 lbs), the module's compact design is also efficient in terms of space. The physical dimensions measure 163 mm in height, 45 mm in width, and 312 mm in depth, or equivalently, 6.42 in x 1.77 in x 12.28 in, making it a streamlined addition for various I/O needs in industrial automation. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
