140DAO84010C
Schneider Electric
Overview

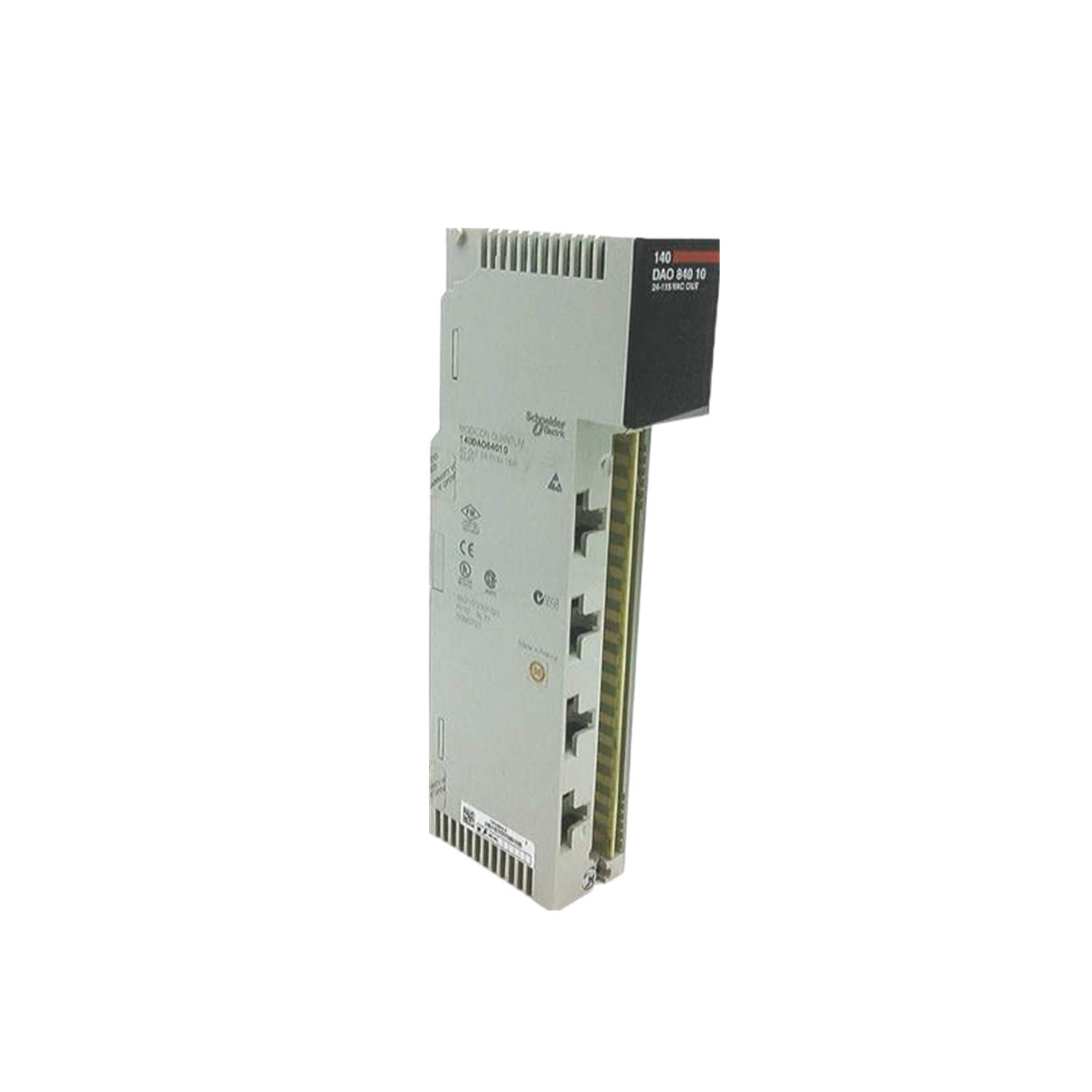

The 140DAO84010C is an AC discrete output modules in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As an ac discrete output modules, the 140DAO84010C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include isolated signal handling, a 20 to 132 V AC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DAO84010C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DAO84010C?
The 140DAO84010C is an ac discrete output modules in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: AC discrete output modules.
What are the key technical ratings of the 140DAO84010C?
Its published highlights include 20 to 132 V AC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DAO84010C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DAO84010C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DAO84010C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DAO84010C from Schneider Electric's Modicon Quantum series is a discrete output module featuring 16 isolated output channels. It operates with an output voltage range of 20 to 132 V AC and requires a single output word for addressing.
Description
| Note | Schneider Electric's 140DAO84010C is designed as a discrete output module, part of the Modicon Quantum series. It is configured with 16 isolated output channels, allowing for efficient control over multiple connected devices. The voltage output spans from 20 to 132 V AC, adapting to various application requirements. To address this module, a single output word is needed. One notable characteristic is its high DV/dt rating of 400 V/ms, which enables fast signal transition, crucial for dynamic applications. For added safety, the module incorporates internal protection via an RC filter, which helps to safeguard against electrical disturbances. Furthermore, it has a fuse rating of 5 A, providing additional security in the system. The module's design adheres to standard specifications, with a weight of 0.485 kg, making it manageable in installation settings. It is effective in ambient temperatures ranging from 0 °C to 60 °C, ensuring reliable operation in diverse environments. The protective treatment is a conformal coating, enhancing its durability against environmental factors. Additionally, the 140DAO84010C module meets stringent standards, including UL 508 and CSA certifications. Its CE marking signifies compliance with European safety directives, making it a dependable choice for industrial applications. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type AC discrete output modules |
| Discrete output number | 16 |
Complementary
| Discrete output type | Isolated |
|---|---|
| Group of channels | 16 groups of 1 channel |
| Supply frequency | 47...63 Hz maximum voltage drop 1.5 V |
| Discrete output voltage | 20...132 V AC |
| Addressing requirement | 1 output word |
| Absolute maximum output | 156 V 10 s AC 200 V during one cycle AC |
| Maximum load current | 1 mA rms 24 V off state leakage/points 1 mA rms 48 V off state leakage/points 2 mA rms 115 V off state leakage/points 16 A rms per module 4 A rms sum of four points, continuous 4 A rms 20...132 V each point |
| Surge current | 20 A during 2 cycles per point 30 A during 1 cycle per point 30 A during 3 cycles per point DV/dt 400 V/ms |
| Response Time | <= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0 |
| Protection Type | Internal by RC filter |
| Power dissipation | 1.85 + (1.1 V x total module load current) |
| Associated fuse rating | 5 A |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Bus current requirement | 350 mA |
| Module format | Standard |
| Net Weight | 1.069 lb(US) (0.485 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | FM Class 1 Division 2 cUL |
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 GTIN 3595861137479 |
| Returnability | No |
| Country of origin | CN |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.0 in (5.0 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.4 in (31.5 cm) |
| Package weight(Lbs) | 22.1 oz (627.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
