140DAO84010
Schneider Electric
Overview

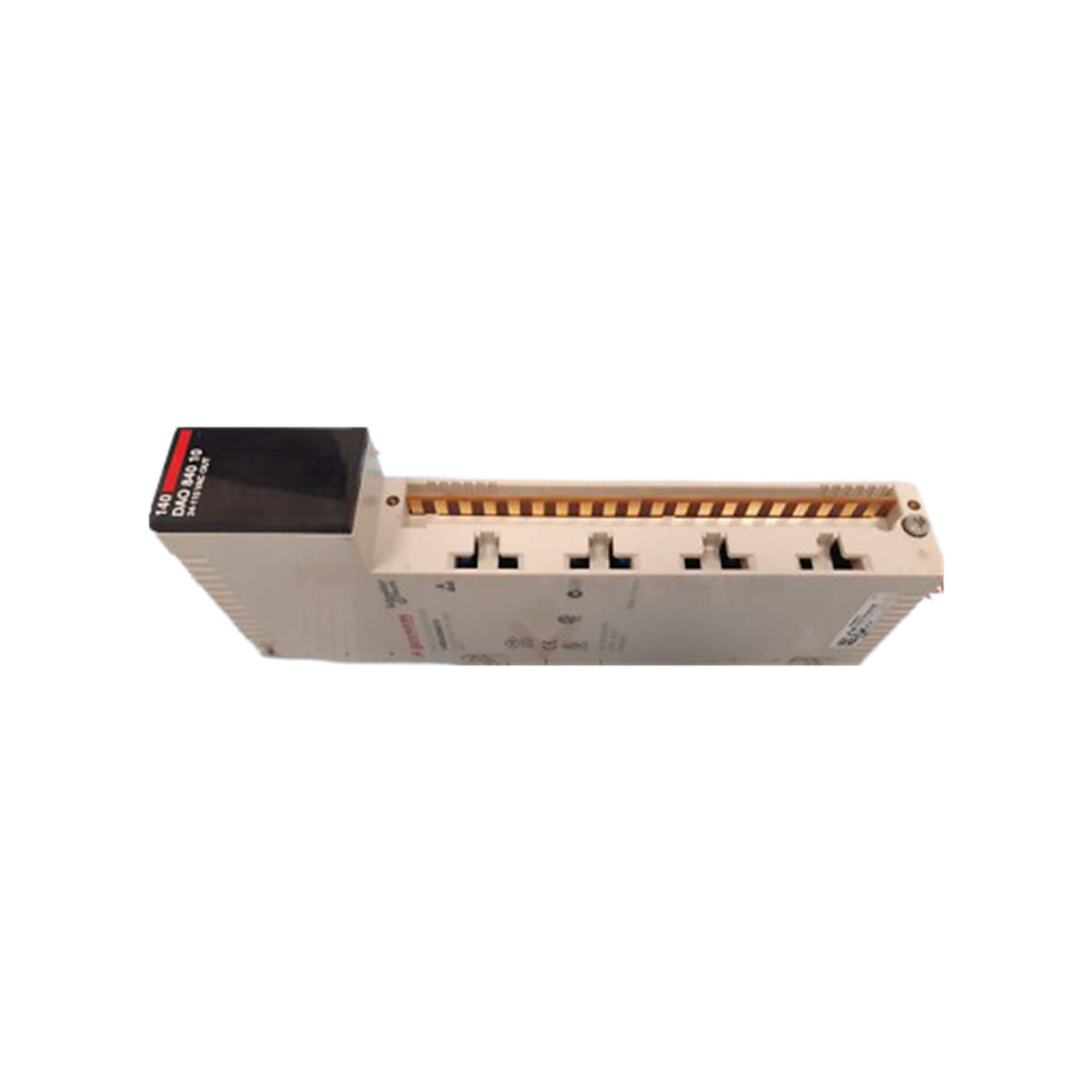

The 140DAO84010 is an AC discrete output modules in the Modicon Quantum automation platform range from Schneider Electric. It provides 16 Channels channels and is built for signal interfacing within Modicon Quantum systems.
Application & Technical Notes
As an ac discrete output modules, the 140DAO84010 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include 16 Channels channels, an operating temperature range of 0°C to 60°C, rack mountable mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DAO84010, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DAO84010?
The 140DAO84010 is an ac discrete output modules in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: AC discrete output modules.
What are the key technical ratings of the 140DAO84010?
Its published highlights include 16 Channels channels, operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DAO84010 mounted or installed?
It uses Rack Mountable. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140DAO84010 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DAO84010?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DAO84010 module, part of the Modicon Quantum series by Schneider Electric, provides robust discrete output capabilities. This module is designed with 16 channels and offers output voltage ranging from 20 to 132V AC, supporting a variety of applications.
Complementary
| Discrete output type | Isolated |
|---|---|
| Group of channels | 16 groups of 1 channel |
| Supply frequency | 47...63 Hz maximum voltage drop 1.5 V |
| Discrete output voltage | 20...132 V AC |
| Addressing requirement | 1 output word |
| Absolute maximum output | 156 V 10 s AC 200 V during one cycle AC |
| Maximum load current | 1 mA rms 24 V off state leakage/points 1 mA rms 48 V off state leakage/points 2 mA rms 115 V off state leakage/points 16 A rms per module 4 A rms sum of four points, continuous 4 A rms 20...132 V each point |
| Surge current | 20 A during 2 cycles per point 30 A during 1 cycle per point 30 A during 3 cycles per point DV/dt 400 V/ms |
| Response Time | <= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0 |
| Protection Type | Internal by RC filter |
| Power dissipation | 1.85 + (1.1 V x total module load current) |
| Associated fuse rating | 5 A |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Bus current requirement | 350 mA |
| Module format | Standard |
| Net Weight | 1.069 lb(US) (0.485 kg) |
Description
| Note | The Schneider Electric 140DAO84010 is an advanced discrete output module tailored for industrial automation systems. This device excels with 16 separate channels, delivering output voltage levels between 20 and 132V AC. It’s specifically designed to handle isolated outputs, thus providing enhanced protection for connected devices. With the ability to operate efficiently at a supply frequency of 47-63 Hz, this module boasts a maximum voltage drop of only 1.5V. As a discrete output module, it is organized into 16 groups of channels, enabling flexible and organized use within various configurations. The module also features remarkable output capabilities, achieving an absolute maximum of 156V for durations of 10 seconds and up to 200V for one cycle of AC. Thermal performance is robust, with an operational temperature range extending from 0°C to 60°C while storage conditions can safely reach from -40°C to 85°C. The product is rack mountable, allowing for streamlined installation. It is also designed to operate effectively in environments with a relative humidity level of up to 95%, so long as condensation is avoided. Enhanced safety and compliance are indicated with the CE marking, underlining its adherence to stringent European standards for equipment. |
|---|
