140DAI75300C
Schneider Electric
Overview

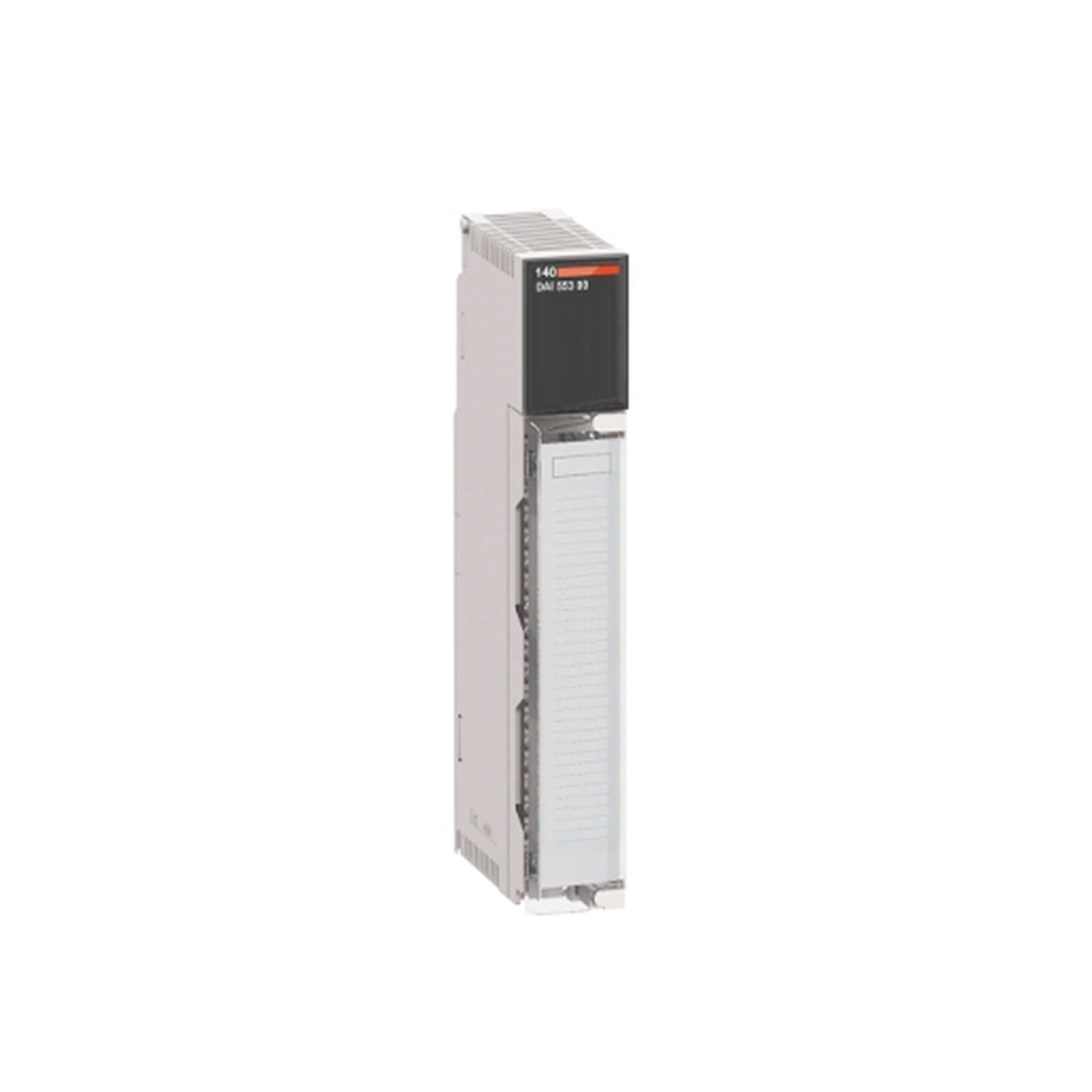

The 140DAI75300C is a VAC discrete input modules in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a vac discrete input modules, the 140DAI75300C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include a 230 VAC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DAI75300C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DAI75300C?
The 140DAI75300C is a vac discrete input modules in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: VAC discrete input modules.
What are the key technical ratings of the 140DAI75300C?
Its published highlights include 230 VAC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DAI75300C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DAI75300C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DAI75300C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DAI75300C is a discrete input module from Schneider Electric's Modicon Quantum series. It features 32 input channels with an operational voltage of 230 VAC, and is designed to meet various industrial automation needs.
Description
| Note | The 140DAI75300C module manufactured by Schneider Electric is part of the Modicon Quantum range, specifically designed as a discrete input interface. This module accommodates up to 32 input channels, designed to operate at a voltage of 230 VAC. Addressing necessitates 2 input words, ensuring effective communication with the connected system. Operationally, the input current for each channel varies between 9.7 and 11.5 mA, with the module maintaining leakage current at a maximum of 2.6 mA to ensure efficient function and safety. Furthermore, it requires a bus current of 250 mA to operate correctly. Power dissipation is limited to 5 watts, which also contributes to the module's long-term reliability. Overall, the 140DAI75300C is compact, with a weight of 0.3 kg, making it suitable for various applications within control systems. This device is engineered for use in environments ranging from 0 to 60 degrees Celsius, providing adaptability across typical industrial settings. The module's design incorporates a conformal coating that enhances protection against environmental factors. It complies with CE certification and meets standards set by UL 508 and CSA, guaranteeing its suitability for industrial automation applications. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type VAC discrete input modules Software name Concept ProWORX 32 Unity Pro Discrete input number 32 |
Complementary
| Group of channels | 4 |
|---|---|
| Addressing requirement | 2 input words |
| Discrete input voltage | 230 V AC |
| Input current | 11.5 mA 57...63 Hz 9.7 mA 47...53 Hz |
| Voltage state 1 guaranteed | 165...264 V AC 57...63 Hz 175...264 V AC 47...53 Hz |
| Voltage state 0 guaranteed | 0...40 V AC 57...63 Hz 0...40 V AC 47...53 Hz |
| Input impedance | 26500 Ohm capacitive 57...63 Hz 31800 Ohm capacitive 47...53 Hz |
| Network frequency limits | 47…63 Hz |
| Maximum leakage current | 2.6 mA |
| Absolute maximum input | 264 V continuous 312 V 10 s 400 V 1 cycle |
| Response time | 4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off |
| Isolation between group | 1780 Vrms for 1 minute |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Bus current requirement | 250 mA |
| Maximum power dissipation in W | 5 W |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Marking | CE |
| Module format | Standard |
| Net weight | 0.7 lb(US) (0.3 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Product certifications | FM Class 1 Division 2 cUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/yd (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 in (4.5 cm) |
| Package 1 Width | 12.2 in (31.0 cm) |
| Package 1 Length | 6.3 in (16.0 cm) |
| Package 1 Weight | 18.7 oz (530.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
