140DAI74000C
Schneider Electric
Overview

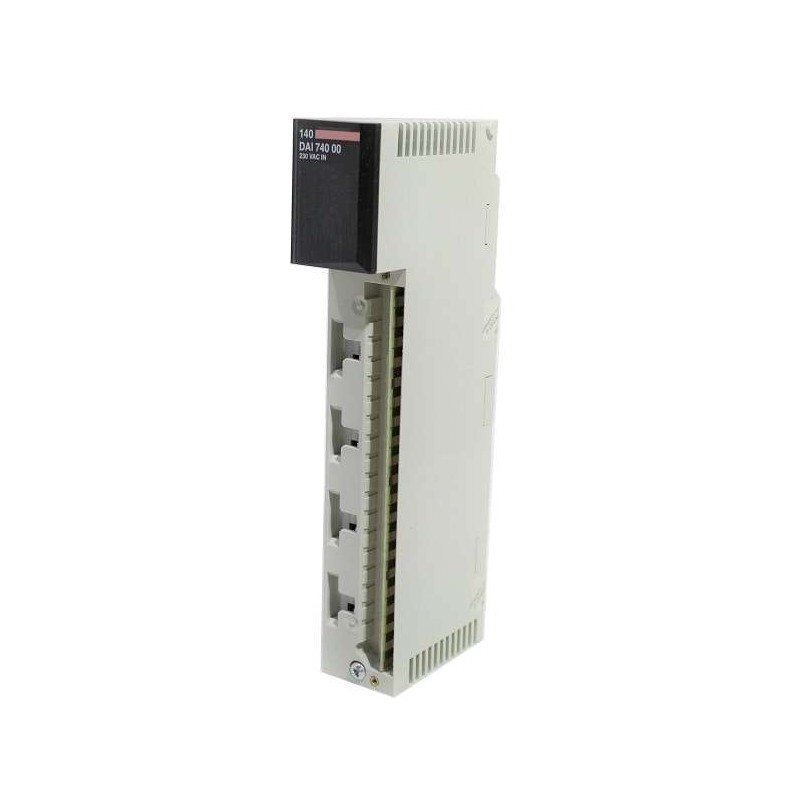

The 140DAI74000C is a Discrete input module in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a discrete input module, the 140DAI74000C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include a 230 VAC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DAI74000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DAI74000C?
The 140DAI74000C is a discrete input module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Discrete input module.
What are the key technical ratings of the 140DAI74000C?
Its published highlights include 230 VAC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DAI74000C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DAI74000C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DAI74000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DAI74000C discrete input module by Schneider Electric, part of the Modicon Quantum series, comprises 16 input channels and is designed for 230 VAC operation. It features a compact construction, conforming to both UL 508 and CSA standards, and offers reliable performance within a 0 to 60 °C temperature range.
Description
| Note | The Schneider Electric 140DAI74000C is a discrete input module belonging to the Modicon Quantum series. This module is capable of managing 16 input channels, allowing for efficient data acquisition. It operates at an input voltage of 230 VAC, making it compatible with various industrial systems. Addressing for this unit requires just one input word, simplifying integration into existing setups. The input current specification ranges from 9.7 mA to 11.5 mA, with a stipulated maximum leakage current of 2.6 mA. This module is designed to draw a bus current of 180 mA, facilitating reliable communication within a controlled environment. Power dissipation is kept under control, with a maximum threshold of 5.5 watts to ensure operational efficiency. Constructed with a standard format, the 140DAI74000C weighs approximately 0.35 kg, ensuring lightweight deployment options. It can function efficiently within an ambient temperature range of 0 to 60 °C, accommodating various installation aspects. The unit adheres to industry standards such as UL 508 and CSA, underscoring its reliability and quality. Additionally, a conformal coating provides extra protective measures, enhancing the module's durability and performance in demanding conditions. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
