140CRP93200C
Schneider Electric
Overview

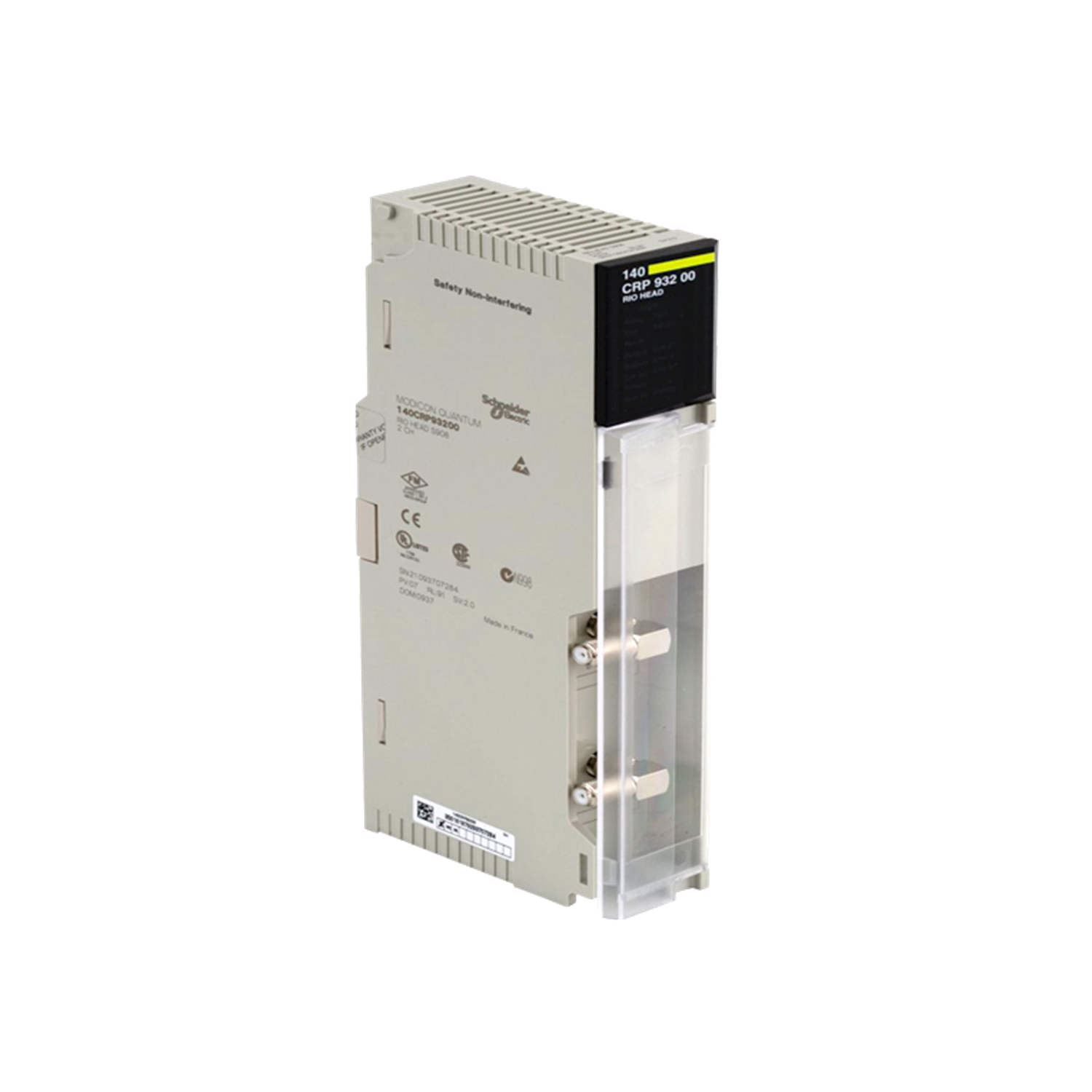

The 140CRP93200C from Schneider Electric is a head-end adapter module designed for use within the Modicon Quantum series. It supports a maximum of 31 drops per network and handles I/O words with a configuration of 64 inputs and 64 outputs.
Source-derived summary. Full AI narrative is being prepared against the manufacturer datasheet.
Specifications
The 140CRP93200C from Schneider Electric is a head-end adapter module designed for use within the Modicon Quantum series. It supports a maximum of 31 drops per network and handles I/O words with a configuration of 64 inputs and 64 outputs.
Description
| Note | The Schneider Electric 140CRP93200C is identified as a RIO head-end adaptor module, engineered for use with the Modicon Quantum series. This unit accommodates up to 31 drops per network, facilitating connection to multiple devices. Each drop supports a configuration of 64 inputs and 64 outputs, providing flexibility in system design and integration. Communication through this module is established via 75 Ohm coaxial cabling, enhancing signal integrity. Capable of transmitting data at a rapid rate of 1544 Mbit/s, it ensures efficient performance for real-time applications. The module also boasts a dynamic range of 35 dB, indicating effective signal processing capabilities. With an isolation voltage up to 500 V DC, the 140CRP93200C module supports safe operations, thus promoting reliability in various installations. It dissipates a modest power of 3 W, defined within operational specifications. The device conforms to several standards, including UL 508, CUL, and CSA, alongside CE marking for additional compliance. Its standard format and protective conformal coating ensure durability in diverse environments. This model operates seamlessly within ambient temperatures between 0 and 60 °C. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type RIO head-end adaptor module |
Complementary
| Product compatibility | Symax (any mix) Quantum 200/500/800 series Maximum drops/network 31 |
|---|---|
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial cable Transmission rate 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Power up LAN controller check Memory check |
| Power dissipation in W | 3 W 2 channels |
| Marking | CE |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product certifications | FM Class 1 Division 2 |
| Standards | UL 508 CUL |
| CSA C22.2 No 142 | N/A |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.0 cm |
| Package 1 Weight | 548.0 g |
