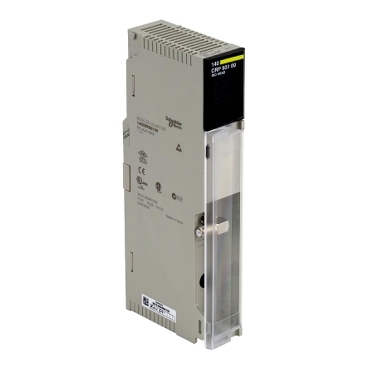

140CRP93100C
Schneider Electric
Overview
The 140CRP93100C is a Remote I/O head module from Schneider Electric's Modicon Quantum series, designed for effective communication in industrial applications. Featuring a fiber optic port, it ensures data transmission at rates up to 2.5 Mbps with a maximum connection distance of 500 meters, accommodating both daisy chain and star topologies for versatile installation options.
Source-derived summary. Full AI narrative is being prepared against the manufacturer datasheet.
Specifications
The 140CRP93100C is a Remote I/O head module from Schneider Electric's Modicon Quantum series, designed for effective communication in industrial applications. Featuring a fiber optic port, it ensures data transmission at rates up to 2.5 Mbps with a maximum connection distance of 500 meters, accommodating both daisy chain and star topologies for versatile installation options.
Description
| Note | Schneider Electric's 140CRP93100C serves as a Remote I/O head module within the Modicon Quantum lineup. It utilizes a single fiber optic port to enable swift data exchanges with a rate of up to 2.5 Mbps. This feature facilitates reliable connections over distances reaching a maximum of 500 meters, effectively supporting both daisy chain and star topology configurations. The module is mounted on a backplane slot and operates on a 5 VDC power supply sourced from the backplane. With a power consumption of approximately 5.4 watts, it is energy-efficient while fulfilling its communication role. This unit is classified under protection class IP20, indicating its suitability for indoor environments not directly exposed to dust or moisture. Operational temperature conditions for the 140CRP93100C range from 0 °C to 60 °C, ensuring dependable functionality in typical industrial settings. Moreover, it can endure a broader storage temperature spectrum from -40 °C to 85 °C, making it resilient to extreme conditions during non-operational periods. Relative humidity tolerances extend from 5% to 95%, ensuring that it can function reliably in various humidity conditions without fear of condensation affecting performance. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type RIO head-end adaptor module |
Complementary
| Product Compatibility | Quantum 200/500/800 series Symax (any mix) Maximum drops/network 31 |
|---|---|
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | LAN controller check Memory check Power up |
| Power dissipation in W | 3 W 1 channel |
| Marking | CE |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | FM Class 1 Division 2 |
| Standards | N/A |
| CSA C22.2 No 142 | CUL UL 508 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 GTIN 3595861136281 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.8 in (4.5 cm) |
| Package 1 Width | 6.7 in (17.0 cm) |
| Package 1 Length | 12.2 in (31.0 cm) |
| Package weight(Lbs) | 18.3 oz (520.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
