140CRA31908
Schneider Electric
Overview

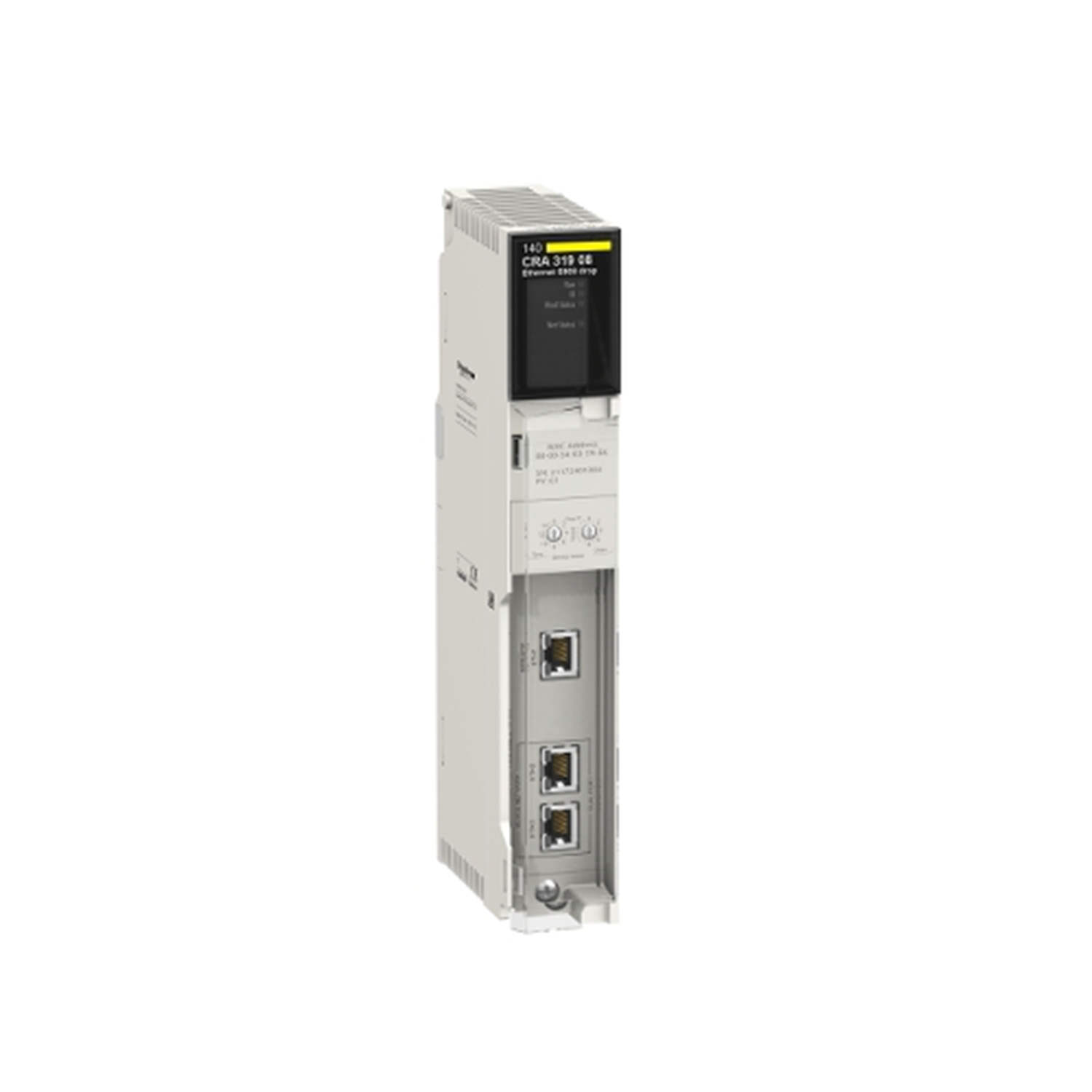

The 140CRA31908 is an Ethernet RIO drop adaptor in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet rio drop adaptor, the 140CRA31908 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C) IEC 60068-2-2. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C) IEC 60068-2-2); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C) IEC 60068-2-2. Avoid condensation — the rated humidity is 93 % conforming to IEC 60068; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CRA31908, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CRA31908?
The 140CRA31908 is an ethernet rio drop adaptor in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Ethernet RIO drop adaptor.
What are the key technical ratings of the 140CRA31908?
Its published highlights include operating temperature 32…140 °F (0…60 °C) IEC 60068-2-2. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CRA31908 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CRA31908 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CRA31908?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CRA31908 from Schneider Electric is an Ethernet RIO Drop Adaptor designed for the Modicon Quantum series. It operates on a rated voltage of 5 VDC and 1.2 A current, with a maximum power rating of 6 W. This adaptor features three Ethernet ports and supports two communication protocols: EtherNet/IP and Modbus TCP.
Description
| Note | The Schneider Electric 140CRA31908 serves as an Ethernet RIO Drop Adaptor within the Modicon Quantum series. Designed to provide digital connectivity, it requires a rated voltage of 5 VDC to operate and supports a current rating of 1.2 A. The device is capable of delivering up to 6 W of power. Equipped with three Ethernet ports, this adaptor allows for efficient network setup. Additionally, it supports two communication protocols, namely EtherNet/IP and Modbus TCP, to facilitate varied connectivity options in automation tasks. The 140CRA31908 includes four LED indicators, enabling users to easily monitor operational statuses. When installed, the adaptor can operate in temperatures ranging from 0 to 60 degrees Celsius. It is designed for an environment with a maximum humidity level of 80% without condensation. Protection is provided by an IP20 rating, making it suitable for typical industrial conditions. The module is also rated for use at altitudes up to 2000 meters, ensuring compatibility with systems located at higher elevations. |
|---|---|
| Range of Product | Modicon Quantum Product or Component Type Ethernet RIO drop adaptor |
| Number of port | 3 |
| Integrated connection type | Ethernet IP/Modbus TCP service port Ethernet IP/Modbus TCP device network Communication Port Protocol Ethernet IP/Modbus TCP |
| Product destination | Modicon Quantum Device Application To provide the ability for a M580 system to control Modicon S908 coaxial bus |
| Communication Service | The input data are collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor |
Complementary
| Topology | Daisy chain loop S908 bus |
|---|---|
| Local signalling | 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for RUN 1 LED (red) for I/O |
| Product Compatibility | BMEP586040 BMEH584040 BMEP585040 BMEH586040 BMEP584040 |
| Environmental characteristic | Standard environment Hazardous location class I division 2 EN/IEC 61131-1 |
| Width | 6.6 in (167 mm) |
| Height | 2.0 in (50 mm) |
| Net Weight | 1.221 lb(US) (0.554 kg) |
Environment
| Product Certifications | UL 508 CE |
|---|---|
| C-tick | N/A |
| Standards | IEC 61000-4-16 |
| CSA C22.2 No 142 | IEC 55011 |
| IP degree of protection | IP20 conforming to IEC 61131-2 IP20 conforming to IEC 60527 |
| Overvoltage category | Class I conforming to IEC 61131-2 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 60068-2-2 32…140 °F (0…60 °C) IEC 60068-2-2 |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) IEC 60068-2-2 -40…185 °F (-40…85 °C) IEC 60068-2-2 |
| Vibration resistance | 3.5 mm constant amplitude (f= 0.5…8.4 Hz) conforming to IEC 61131-2 1 gn constant acceleration (f= 8.4…150 Hz) conforming to IEC 61131-2 |
| Operating altitude | 6561.68 ft (2000 m) Maximum altitude transport 9842.5 ft (3000 m) |
| Relative humidity | 93 % conforming to IEC 60068 |
Ordering and shipping details
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 GTIN 3606481207470 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.969 in (5.000 cm) |
| Package 1 Width | 6.496 in (16.500 cm) |
| Package 1 Length | 12.402 in (31.500 cm) |
| Package weight(Lbs) | 20.882 oz (592.000 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
