140CRA21220C
Schneider Electric
Overview

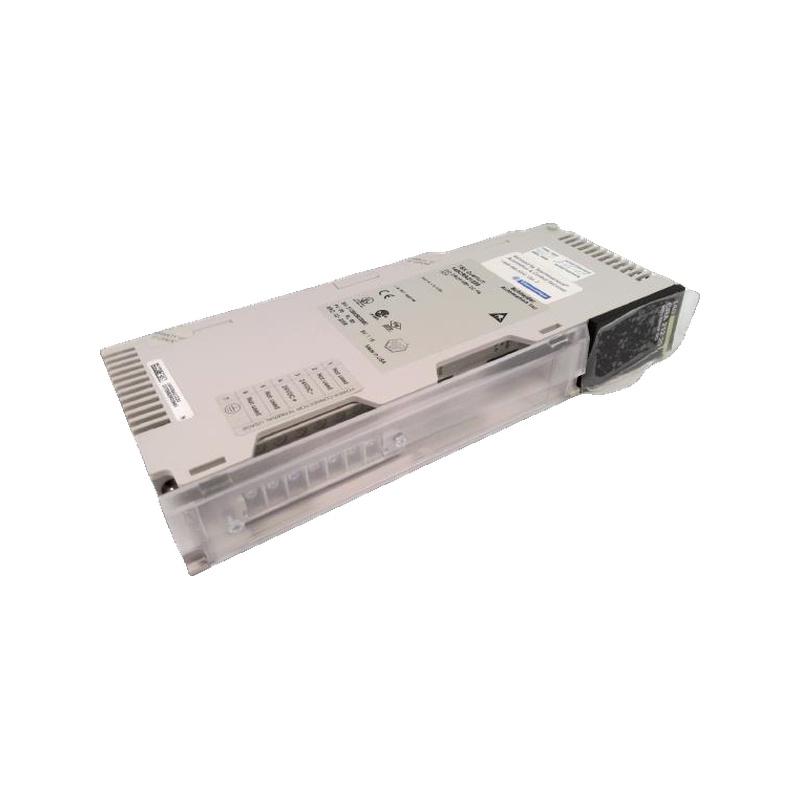

The 140CRA21220C is a DIO Drop Interface in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a dio drop interface, the 140CRA21220C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24 VDC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CRA21220C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Quantum installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CRA21220C?
The 140CRA21220C is a dio drop interface in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: DIO Drop Interface.
What are the key technical ratings of the 140CRA21220C?
Its published highlights include 24 VDC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CRA21220C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CRA21220C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CRA21220C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CRA21220C from Schneider Electric serves as a DIO drop interface featuring two redundant ports. Operating on a supply voltage of 24 VDC, this component has a range between 20 and 30 V. It is specifically designed to handle inrush currents of up to 30 A while dissipating 11 W of power reliably. The device also incorporates short-circuit and overvoltage protection mechanisms, ensuring dependable operation.
Description
| Note | The Schneider Electric 140CRA21220C is a dedicated DIO drop interface designed for reliable performance in dynamic environments. It utilizes a 24 VDC operating voltage, with specified limits from 20 to 30 V, making it suitable for a range of applications. This interface features two redundant ports to enhance system reliability. The device manages inrush currents of up to 30 A effectively and provides output voltage of 5.1 V for its operations. With the capability to output a current of 3 A, it reliably supports connected devices. Additionally, the 140CRA21220C includes built-in short-circuit and overvoltage protection to safeguard against electrical disturbances, enhancing its durability. Power dissipation for this interface is rated at 11 W, ensuring efficient energy use in various conditions. This product operates optimally at altitudes not exceeding 5000 m and can withstand humidity levels of 95% without condensation, allowing it to function reliably in diverse environments. A conformal coating provides additional protection against moisture and contaminants, further ensuring long-term reliability. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
