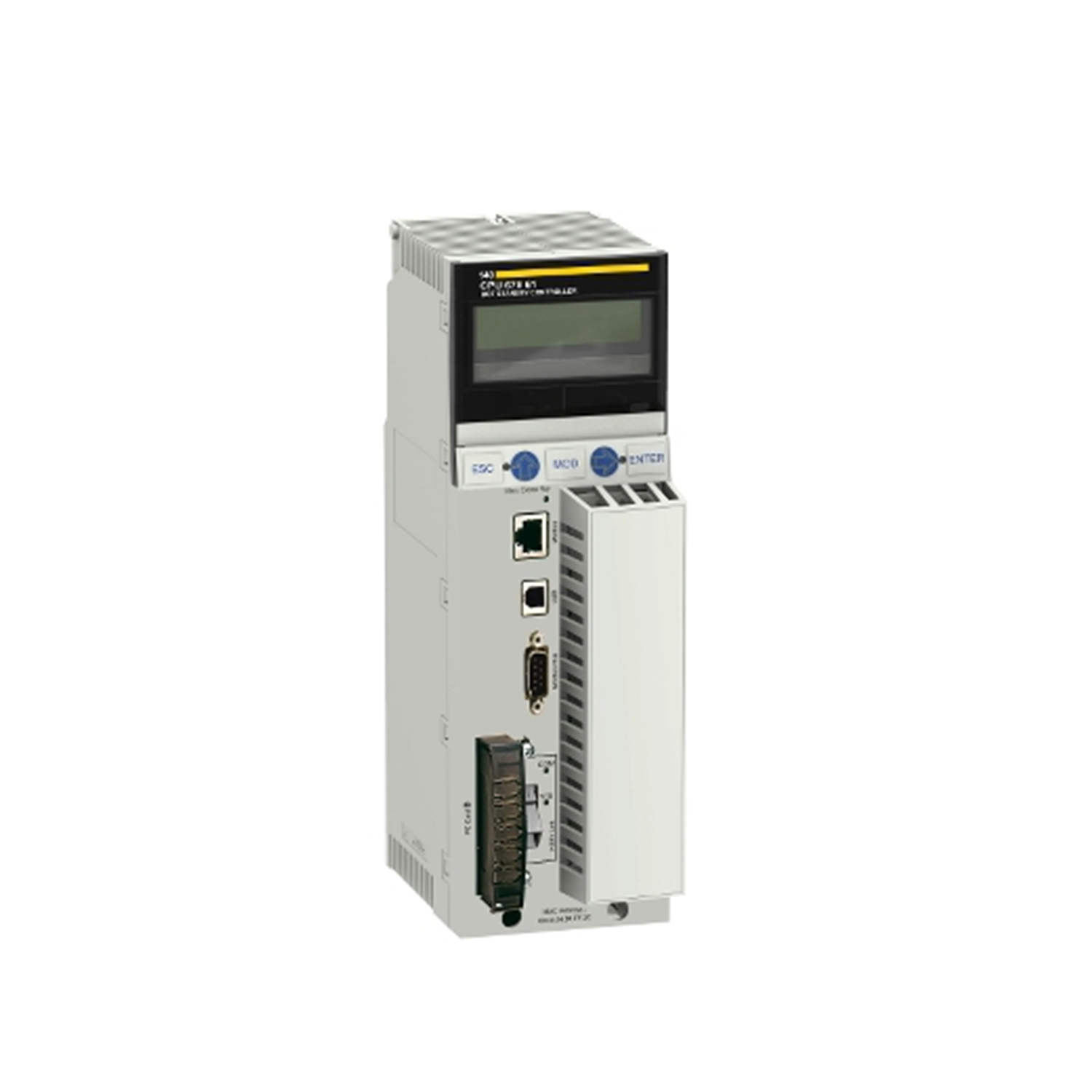

140CPU67261C
Schneider Electric
Overview
The 140CPU67261C is an Unity processor in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As an unity processor, the 140CPU67261C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU67261C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU67261C?
The 140CPU67261C is an unity processor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Unity processor.
What are the key technical ratings of the 140CPU67261C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140CPU67261C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU67261C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU67261C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU67261C Unity Hot Standby Processor from Schneider Electric's Modicon Quantum series is engineered for reliable operational continuity. Equipped with a 266 MHz clock frequency, it ensures efficient processing power and includes integrated support for dual local racks.
Description
| Note | The Schneider Electric 140CPU67261C operates as a robust Unity Hot Standby Processor, designed specifically for seamless integration within the Modicon Quantum series. It operates with a clock speed of 266 MHz, providing efficient processing suited for complex control environments. This processor is adaptable to various configurations with modular slot support, offering options for 2, 4, 6, 10, or even 16 slots to establish a tailored setup that meets specific system needs. Additionally, it features dual local rack integration, enhancing the local rack capacity for better performance. The modularity extends to distributed I/O capabilities, allowing up to 63 stations through a single rack and accommodating three Modbus Plus networks. Furthermore, the device supports remote I/O configurations with a capacity of 31 stations per network across S908, Quantum, and X80 protocols. The 140CPU67261C handles significant input and output volumes, supporting 31,744 remote I/O points and 8,000 distributed I/O points per network. Analog operations are covered as well, with the processor managing up to 1,984 analog remote I/O points and 500 per network. Communications are efficient via supported networks such as Ethernet TCP/IP, Modbus Plus, Profibus DP, USB, and fiber optic. The unit permits a maximum of six network connections for each communication type, including Ethernet and Modbus Plus, which enhances connectivity and flexibility. Its memory capacity includes 11,264 kB of RAM, with 1,536 kB allocated for data, and it can be expanded via an 8 MB PCMCIA card. In terms of performance, it processes approximately 10.28K Boolean or 10.07K mixed instructions every millisecond, ensuring responsive control and data handling. The unit operates with a bus current of 2,760 mA, substantial enough for various industrial applications. Notably, the hot standby configuration provides redundancy support for fault-tolerant operations, ensuring uninterrupted service during failures. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Unity processor |
Complementary
| Mode of Transmission | Single mode |
|---|---|
| Clock frequency | 266 MHz |
| Number of slots | 10 16 4 2 6 |
| Number of racks | 2 - local |
| Number of distributed I/O station | 63 1 3 Modbus Plus |
| Number of remote I/O station | 31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 31 - 2 ethernet X80 remote I/O |
| Discrete I/O number | 31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | 0 - local - forbidden in Hot Standby application |
| Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | 1984 inputs,1984 outputs - remote 0 - local - forbidden in Hot Standby application |
| Application specific I/O | Accurate time stamping Counter Serial link High-speed interrupt inputs |
| Communication Service | Ethernet router Number of optional modules 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII) |
| Integrated connection type | 1 Modbus Plus 1 Modbus 1 USB 1 optic fibre Hot Standby |
| Checks | Hot standby Process control |
| Memory description | Expandable 8 MB - file storage with PCMCIA card Internal RAM 11264 kB - 1536 kB for data |
| Switch Function | Key switch memory port on/off |
| Application structure | 1 periodic fast task - forbidden in Hot Standby application 128 I/O interrupt tasks - forbidden in Hot Standby application 128 interrupt tasks - forbidden in Hot Standby application 32 timer interrupt tasks - forbidden in Hot Standby application 4 auxiliary tasks - forbidden in Hot Standby application 1 cyclic/periodic master task - |
| Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical |
| System overhead | 0.2 ms fast task 1 ms master task |
| Bus current requirement | 2760 mA |
| Local signalling | 1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Modbus bus 1 connector LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | ATEX zone 2 GOST IEC-Ex CE |
| Misc (Marine) | CSA UL |
| Standards | HazLoc |
Ordering and shipping details
| Category | US1PC2118150 |
|---|---|
| Discount Schedule | PC21 GTIN 3595864101118 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.3 in (11.0 cm) |
| Package 1 Width | 7.3 in (18.5 cm) |
| Package 1 Length | 12.8 in (32.5 cm) |
| Package weight(Lbs) | 3.245 lb(US) (1.472 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
