140CPU67261
Schneider Electric
Overview

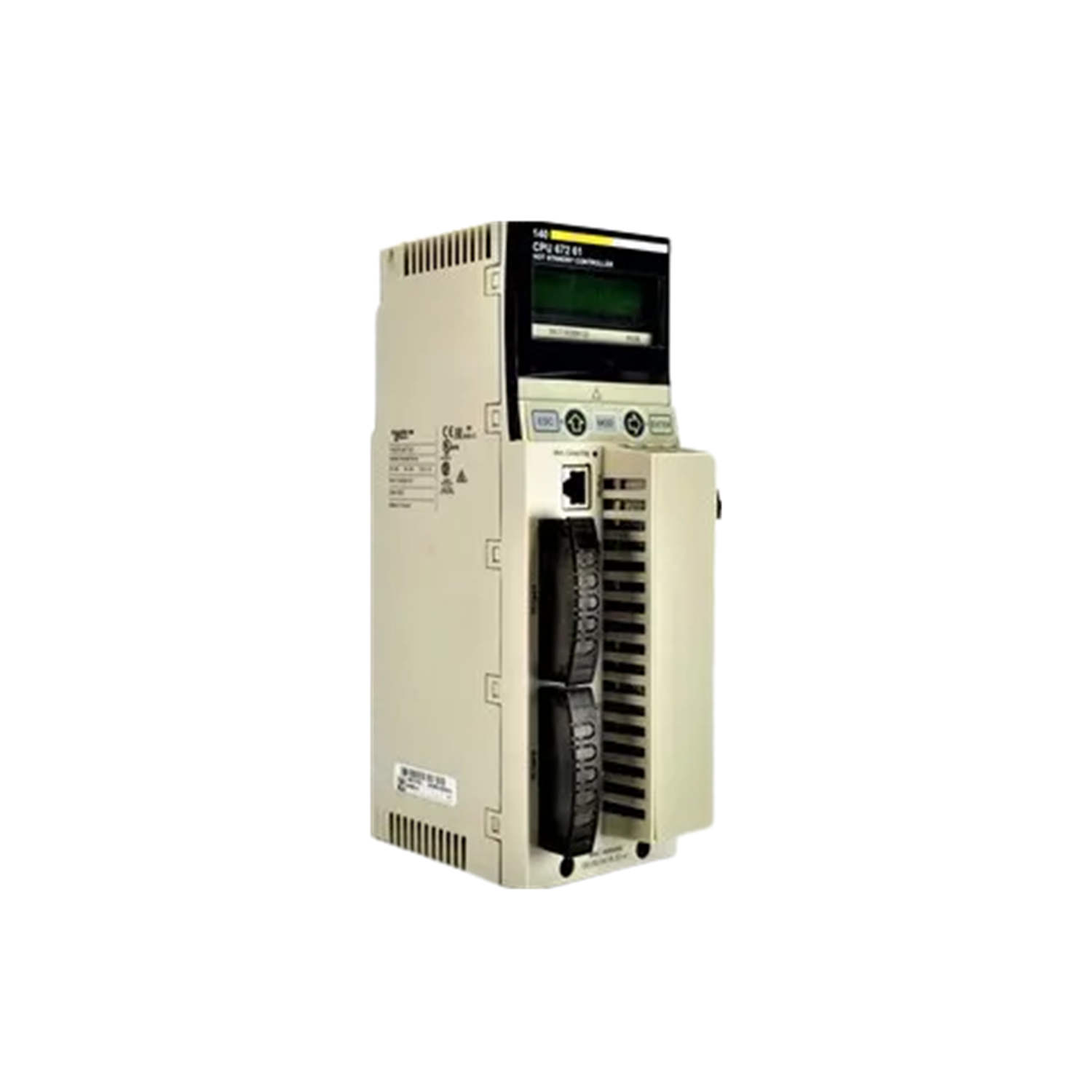

The 140CPU67261 is a Modicon Quantum in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a modicon quantum, the 140CPU67261 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 0°C to 60°C, rack mountable mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU67261, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU67261?
The 140CPU67261 is a modicon quantum in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Modicon Quantum.
What are the key technical ratings of the 140CPU67261?
Its published highlights include operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU67261 mounted or installed?
It uses Rack Mountable. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140CPU67261 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU67261?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140CPU67261 is a Unity Processor optimized for the Modicon Quantum series, providing robust processing capabilities at a clock speed of 266 MHz. This module features advanced communication options, including Ethernet, Modbus, and Modbus Plus ports, making it suitable for diverse automation environments.
Description
| Note | The Modicon Quantum series part number 140CPU67261 from Schneider Electric incorporates a Unity Processor that operates at a clock frequency of 266 MHz. This high-performance processor is suitable for critical applications that demand reliability. For redundancy, a hot standby processor feature is included, ensuring system availability during failures. The 140CPU67261 module also supports various communication protocols, which include Ethernet, Modbus, and Modbus Plus, facilitating flexible integration into different network architectures and environments. It offers 3072 KB of RAM for effective data handling and processing, suitable for complex control systems. Users can expect compatibility with single mode transmissions, with a bus current requirement of 2760 mA. The operating temperature range of 0°C to 60°C enables the processor to function seamlessly in different temperature scenarios, while it can tolerate storage temperatures from -40°C to 85°C without risk of damage. The design allows for rack mounting, which simplifies installation and space management in control cabinets. It supports various input/output functionalities including counter I/O and serial link I/O, along with high-speed interrupt inputs, allowing for precise handling of events. Another notable feature is the accurate time stamping capability for I/O, enhancing system diagnostics and timestamping for logged data. The unit can accommodate two local racks, making it suitable for larger system setups. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
