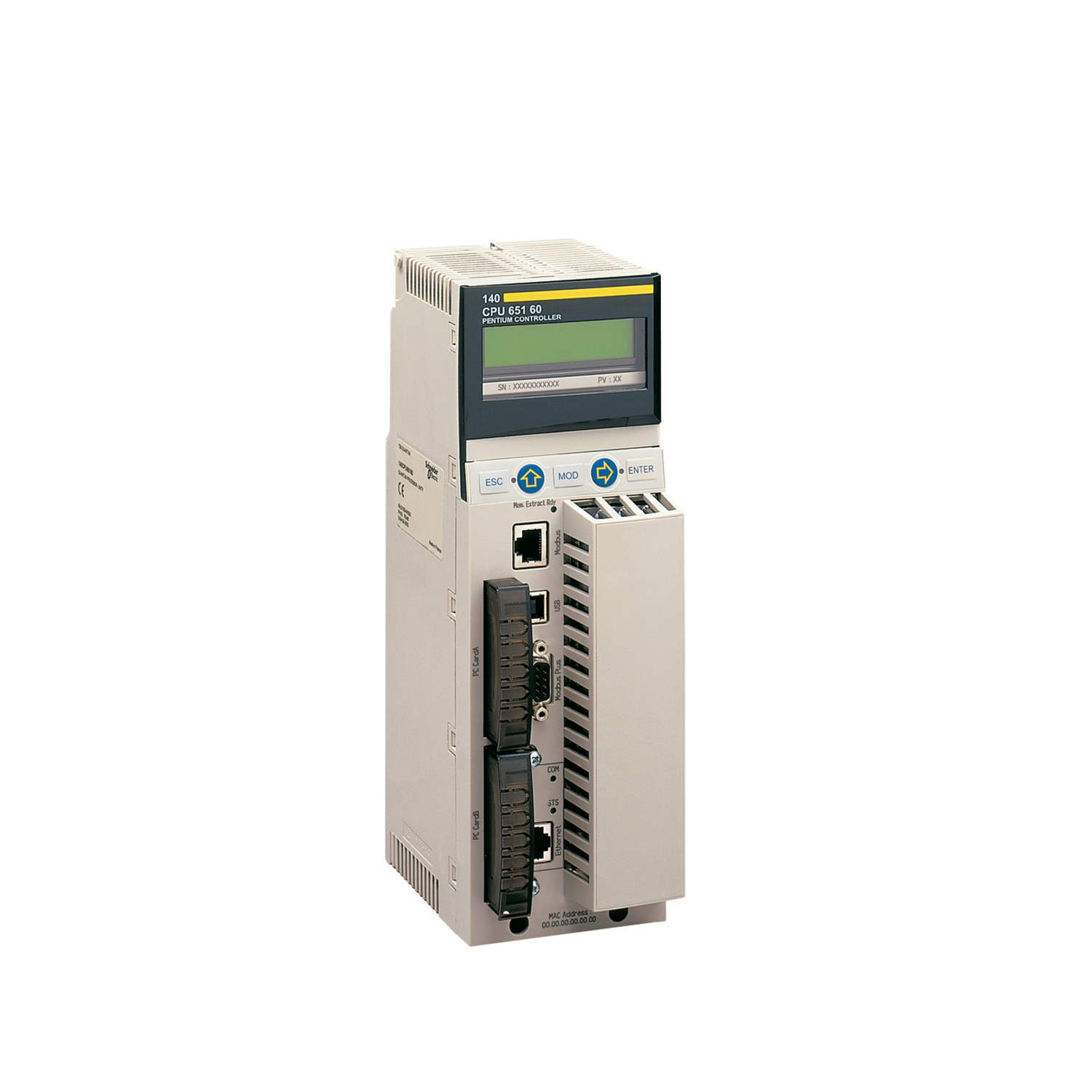

140CPU65260C
Schneider Electric
Overview
The 140CPU65260C is an Unity processor in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As an unity processor, the 140CPU65260C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU65260C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU65260C?
The 140CPU65260C is an unity processor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Unity processor.
What are the key technical ratings of the 140CPU65260C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140CPU65260C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU65260C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU65260C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140CPU65260C is a Unity Processor optimized for process control applications. It operates at a clock frequency of 266 MHz and supports functionality across two local racks.
Description
| Note | The 140CPU65260C is a processing unit from Schneider Electric’s Modicon series, specifically designed for use in control applications. With a clock speed of 266 MHz, it delivers quick data processing capabilities suitable for demanding tasks. This processor can manage up to two local racks, which allows for modular expansion based on system requirements. In addition, the unit supports communication with up to 63 distributed I/O stations, providing extensive flexibility in integration with various input and output devices. A built-in Ethernet router facilitates efficient networking and data exchange among connected devices. The processor is designed to conduct regular checks for process control, ensuring reliable operation under varied conditions. It features a bus current specification of 2760 mA, thereby supplying adequate power for the operations it handles. Conforming to HazLoc standards indicates its suitability for hazardous locations, thus enhancing safety in critical environments. The overall dimensions of the processor measure 18.5 cm in width, 11 cm in depth, and 33 cm in height, with a total weight of 1.432 kg. This combination of features makes the 140CPU65260C a robust choice for applications requiring dependable processing in industrial settings. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Unity processor |
Complementary
| Clock frequency | 266 MHz |
|---|---|
| Number of slots | 10 16 6 2 4 |
| Number of racks | 2 - local |
| Number of distributed I/O station | 63 1 1 Modbus Plus |
| Number of remote I/O station | 31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 31 - 2 ethernet X80 remote I/O |
| Discrete I/O number | 8000 inputs, 8000 outputs - distributed - per network Modbus Plus |
| Unlimited (26 slots max) - local | N/A |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | 31744 inputs, 31744 outputs - S908 remote I/O |
| Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus |
| Unlimited (26 slots max) - local | N/A |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | 1984 inputs,1984 outputs - remote |
| Application specific I/O | Counter High-speed interrupt inputs Accurate time stamping Serial link |
| Communication Service | Ethernet router Number of optional modules 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII) |
| Integrated connection type | 1 Modbus Plus 1 Ethernet TCP/IP 1 Modbus 1 USB |
| Checks | Process control |
| Memory description | Expandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 3072 kB |
| Switch Function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks - |
| Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical |
| System overhead | 0.2 ms fast task 1 ms master task |
| Bus current requirement | 2760 mA |
| Local signalling | 1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Ethernet network 1 connector RJ45 for connecting Modbus bus |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | N/A |
| Misc (Marine) | CSA CE GOST ATEX zone 2 IEC-Ex UL |
| Standards | HazLoc |
Ordering and shipping details
| Category | 18150-QUANTUM CONTROLLERS,HSBY,COMM. |
|---|---|
| Discount Schedule | PC21 GTIN 3595863972658 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.3 in (11.0 cm) |
| Package 1 Width | 7.5 in (19.0 cm) |
| Package 1 Length | 12.8 in (32.5 cm) |
| Package weight(Lbs) | 3.269 lb(US) (1.483 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
