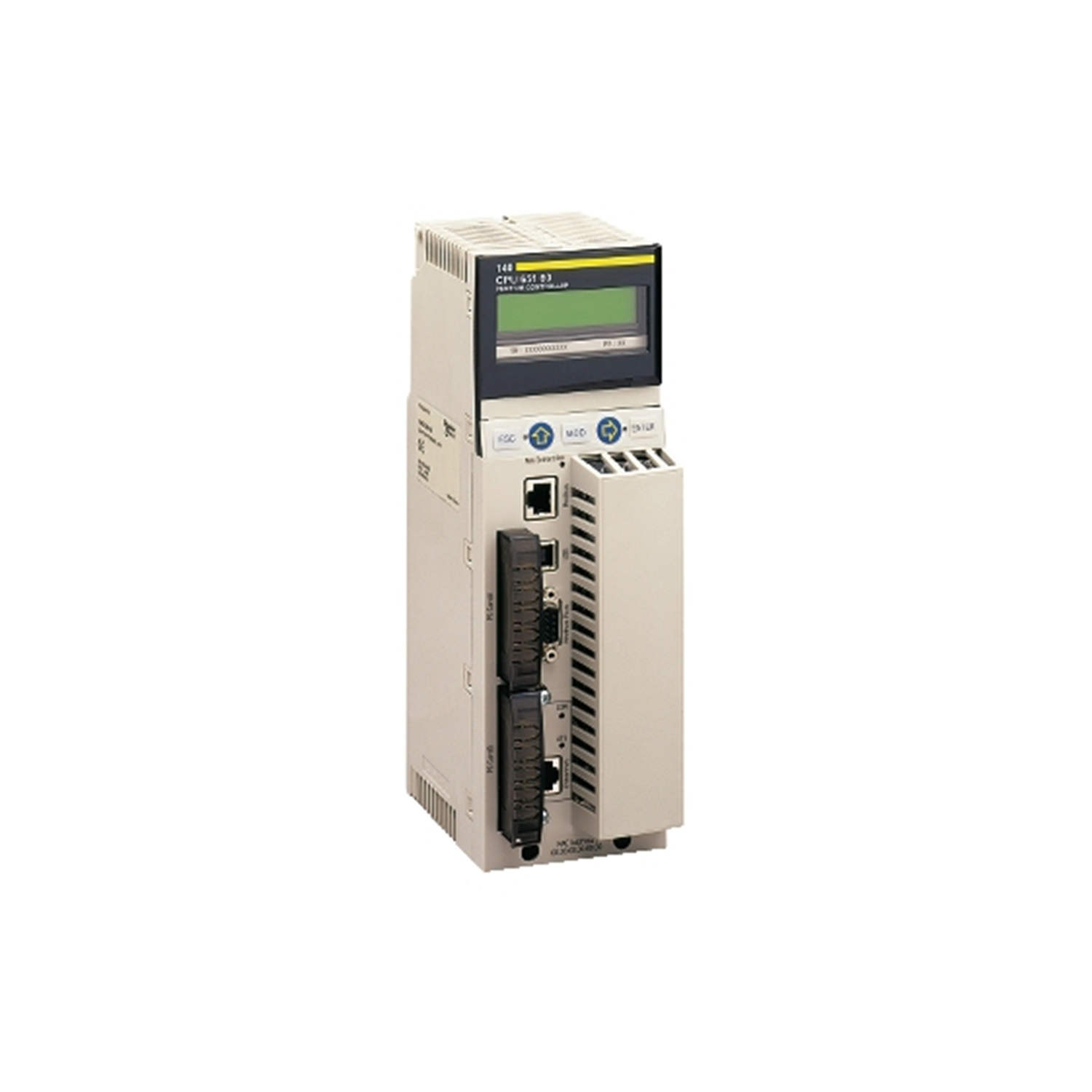

140CPU65160C
Schneider Electric
Overview
The 140CPU65160C is a Modicon Quantum in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a modicon quantum, the 140CPU65160C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU65160C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU65160C?
The 140CPU65160C is a modicon quantum in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Modicon Quantum.
What are the key technical ratings of the 140CPU65160C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140CPU65160C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU65160C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU65160C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU65160C Unity Processor from Schneider Electric's Modicon Quantum series operates at a clock frequency of 266 MHz. This processor is equipped with 1024 kB of internal RAM and supports expandable RAM up to 7168 kB for programs and 8 MB for file storage.
Description
| Note | The Schneider Electric 140CPU65160C is a Unity Processor belonging to the Modicon Quantum series. It functions at a clock frequency of 266 MHz, providing efficient processing for control applications. With 1024 kB of internal RAM, the system can be enhanced with expandable RAM, capable of supporting 7168 kB for program memory and an additional 8 MB for file storage. This processor features ten slots for module installation and is designed to accommodate two local racks, enhancing its versatility. It is capable of managing up to 63 distributed I/O stations through a single local rack and can also interface with three Modbus Plus networks. The system supports 31 remote I/O stations via two S908 remote I/O racks, allowing for extensive network configurations. For communication, it includes an Ethernet router with multiple connection options, such as USB, AS-Interface, and Modbus communications. The 140CPU65160C can support six local connections for Ethernet TCP/IP, Modbus Plus, and Profibus DP, along with additional connections for USB and RS232/485 Modbus/ASCII communication. The execution time per instruction varies, clocking in at 0.4–0.5 µs for floating-point operations and 0.0525–0.075 µs for Boolean operations, which indicates its efficiency in processing tasks. Weighing in at 0.85 kilograms (1.87 pounds), this Unity Processor offers a robust solution for a variety of automation needs. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
