140CPU53414UC
Schneider Electric
Overview

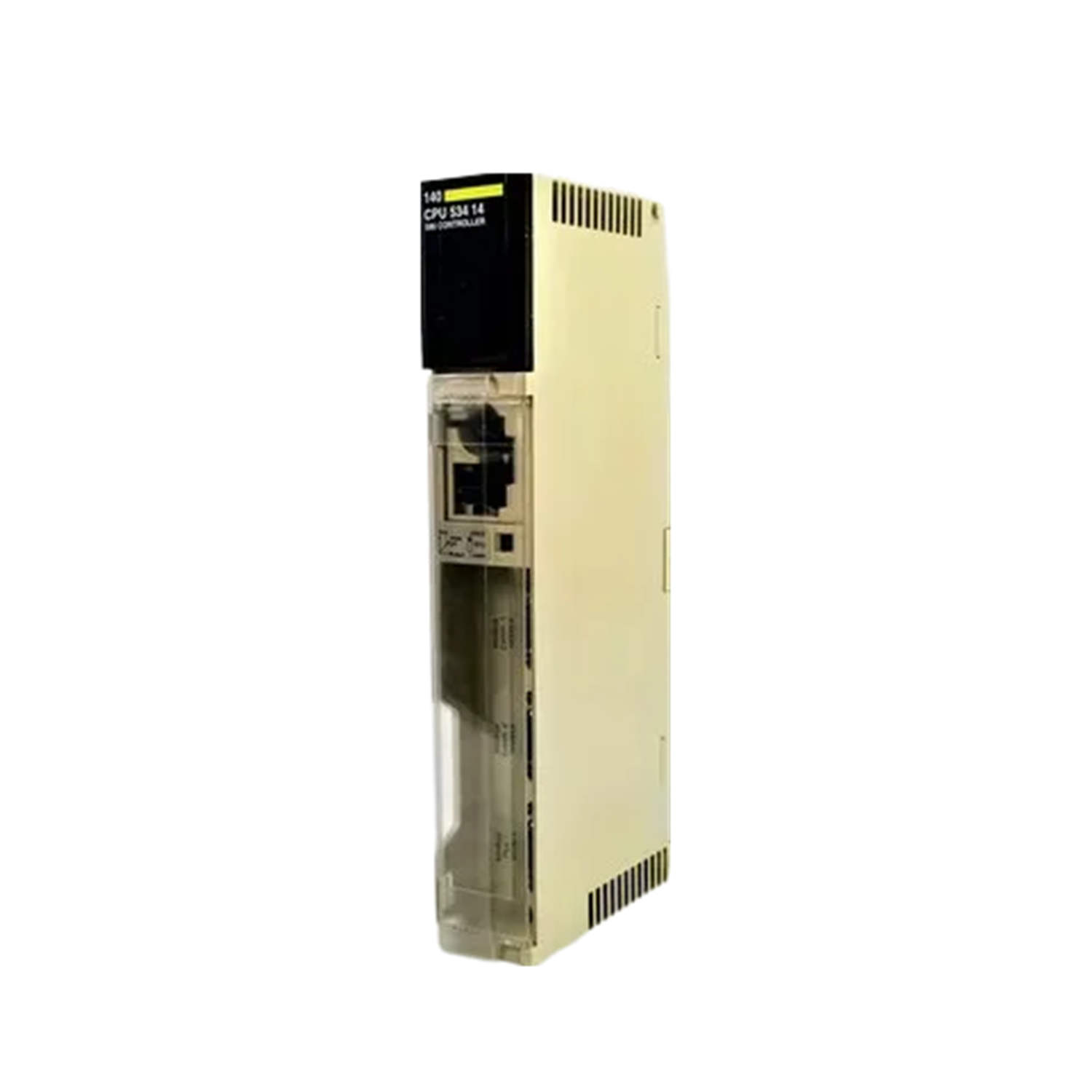

The 140CPU53414UC is a Processor in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a processor, the 140CPU53414UC is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU53414UC, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU53414UC?
The 140CPU53414UC is a processor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Processor.
What are the key technical ratings of the 140CPU53414UC?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU53414UC mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU53414UC compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU53414UC?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU53414UC CPU Module from Schneider Electric's Modicon Quantum series features a Quantum Unity processor. This unit supports two local racks and is equipped with 586 KB of RAM, with a program memory capacity of 4 MB. The module ensures robust communication through Modbus RS232/Plus ports.
Description
| Note | The Schneider Electric 140CPU53414UC serves as a highly efficient CPU Module within the Modicon Quantum range. Featuring a Quantum Unity processor, this module is designed to handle two local racks, allowing for expanded system capabilities. It incorporates 586 KB of RAM, providing adequate memory for various applications, alongside a robust program memory of 4 MB, demonstrating its ability to manage complex programming requirements. The module’s communication features are highlighted by Modbus RS232/Plus ports, facilitating effective device communication. The execution time for Boolean operations is notably efficient, ranging between 0.1 and 0.27 microseconds, ensuring rapid processing capabilities that can enhance the performance of automation tasks. Designed for industrial environments, it operates across a broad temperature range. Powering the 140CPU53414UC requires a 5 V DC supply, making it compatible with standard industrial power systems. The module features a communication memory that exceeds 1 MB while also incorporating CC, further maximizing its data management efficiency. LED indicators for status and errors provide users with immediate feedback on operational health, aiding in diagnostics and maintenance. Additional to its functional capabilities, the module comes with a protective coating, ensuring durability against environmental factors that may affect its performance. Overall, the 140CPU53414UC is engineered to deliver reliable operation in demanding industrial applications. ProWORX32, Concept, 2972kB RAM, 100MHz |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Processor Software name ProWORX 32 Concept Processor name 80486 |
| Mathematical coprocessor | With |
Complementary
| Clock frequency | 100 MHz |
|---|---|
| Memory description | Internal RAM 2972 kB |
| Exact time for 1 Kinstruction | 0.1...0.5 ms LL984 |
| Watchdog timer | 250 ms |
| Clock drift | +/-8 s/day 32…140 °F (0…60 °C) |
| I/O words | 30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote |
| I/O words/network | 500 I/500 O distributed |
| Drops/network | 63 distributed |
| Number of drops | 31 remote |
| Number of network | 2 remote 3 distributed |
| Battery type | Lithium 10 µA 420 µA |
| Battery Capacity | 1.2 Ah |
| Battery Life | 10 year(s) |
| Switch Function | Key switch |
| Marking | CE |
| Bus current requirement | 1250 mA |
| Module format | Standard |
| Net Weight | 1.87 lb(US) (0.85 kg) |
Environment
| Product Certifications | FM Class 1 Division 2 cUL |
|---|---|
| Standards | N/A |
| CSA C22.2 No 142 | UL 508 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
