140CPU53414C
Schneider Electric
Overview

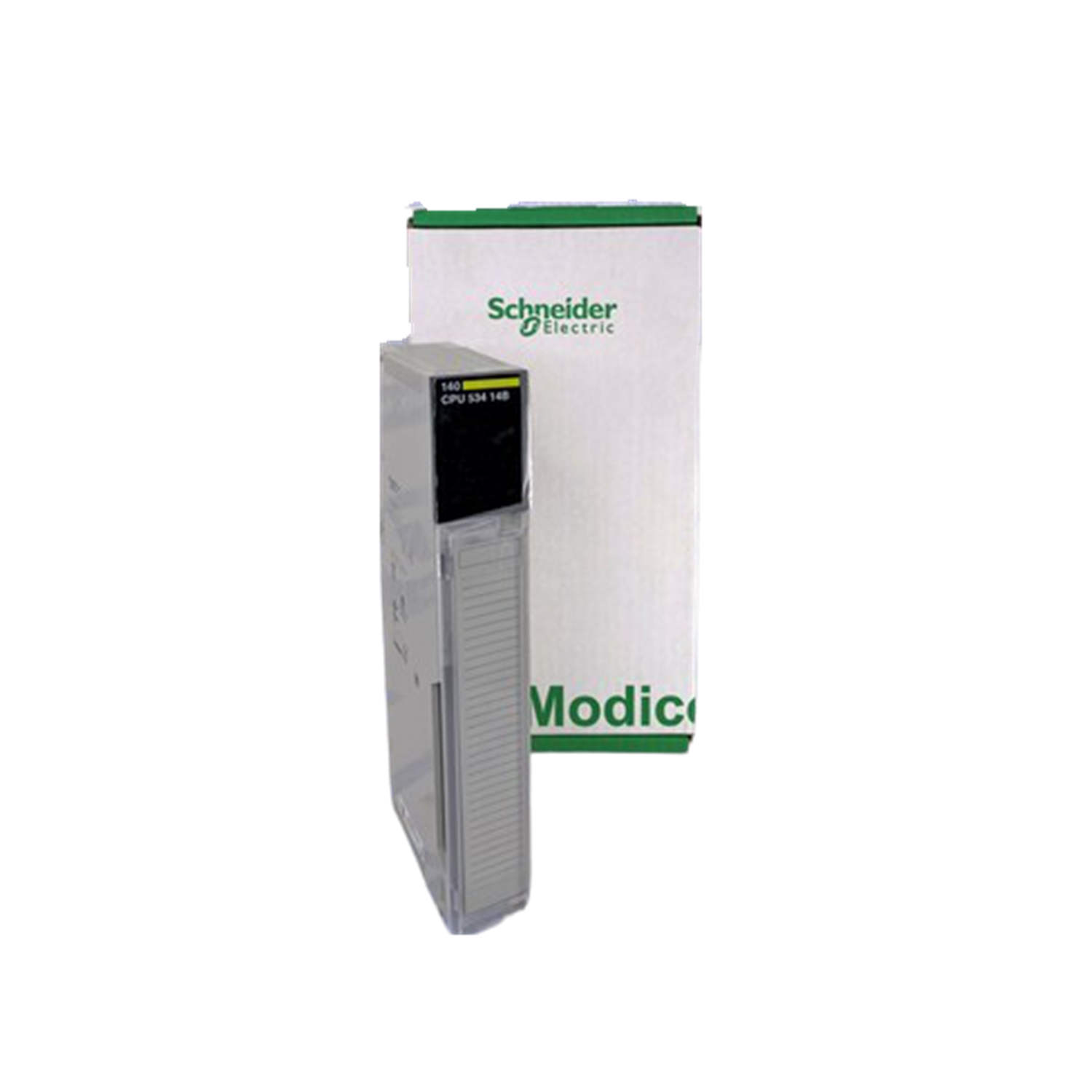

The 140CPU53414C is a CPU Module in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cpu module, the 140CPU53414C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of Industrial Range. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (Industrial Range); do not exceed it during commissioning or in enclosed panels without airflow. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU53414C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU53414C?
The 140CPU53414C is a cpu module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: CPU Module.
What are the key technical ratings of the 140CPU53414C?
Its published highlights include operating temperature Industrial Range. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU53414C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU53414C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU53414C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU53414C CPU module from Schneider Electric is a robust component designed for the Modicon Quantum series. It incorporates 586 KB of internal RAM and provides up to 4 MB of program memory, making it suitable for various automation applications.
Description
| Note | The Schneider Electric 140CPU53414C is a CPU module within the Modicon Quantum series, specifically crafted to meet the demands of industrial applications. This unit features an internal RAM of 586 KB, which is essential for executing complex tasks efficiently. For program storage, the module offers 4 MB of memory, providing ample space for automation programs. Connectivity is facilitated through Modbus RS232/Plus communication ports, enabling effective data transfer within control systems. The design allows for up to 24 I/O slots, making this module a versatile choice for various configurations. The operating temperature is aligned with industrial standards, ensuring reliable performance in harsh environments. Operating on a 5 V DC power supply, the 140CPU53414C is designed to maintain stability and functionality. An additional benefit of this module is its memory expansion capability, facilitated through a PCMCIA slot, allowing users to scale their memory as needed. The module also features 1 MB+ of communication memory, streamlining data exchange and processing tasks. The protective coating (CC) adds another layer of durability to the unit. Its efficient Quantum processor boasts a Boolean execution time of around 0.2 microseconds and an instruction rate of approximately 2 Kinst/ms, making it suitable for high-speed operations in automation systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
