140CPU53414BC
Schneider Electric
Overview

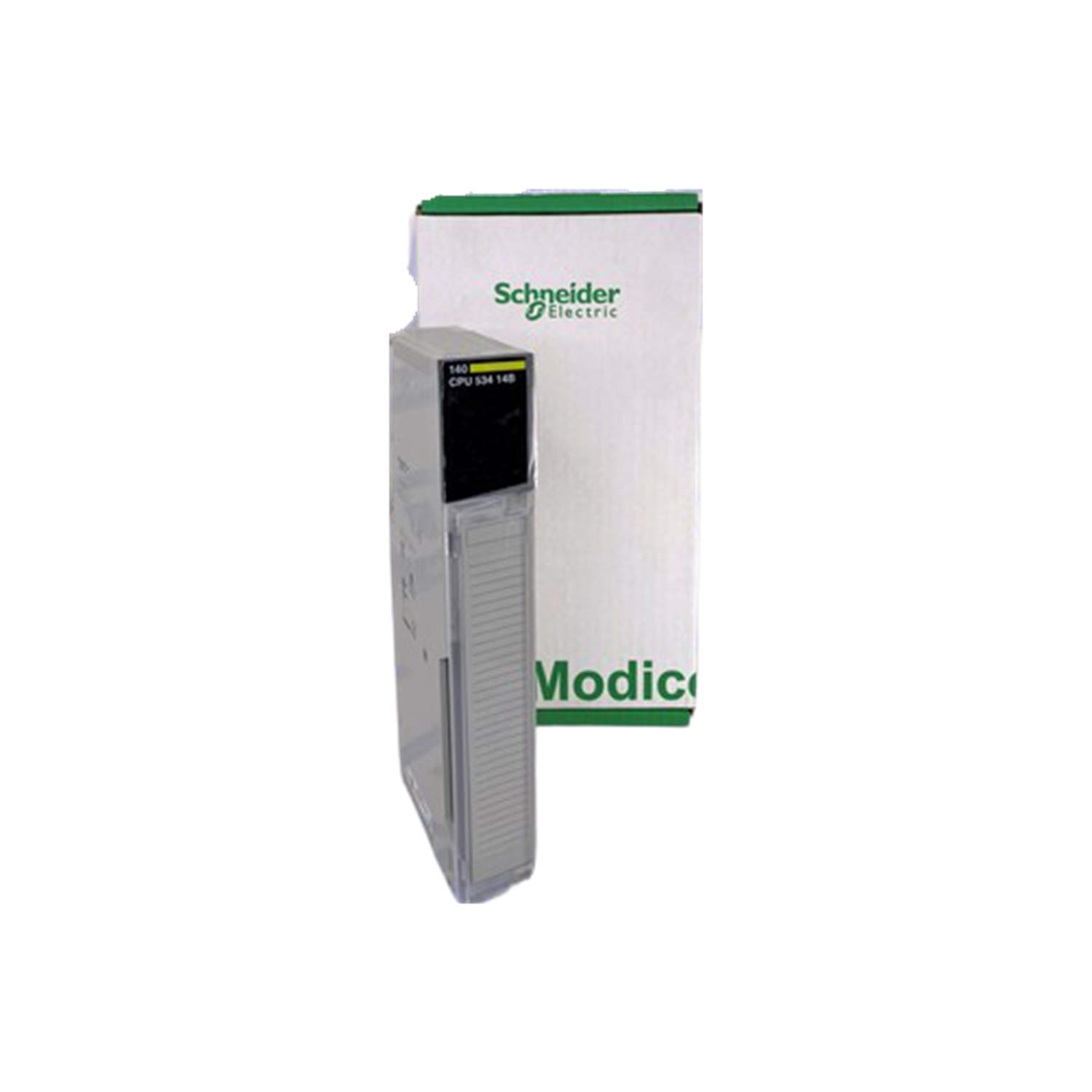

The 140CPU53414BC is a Processor in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a processor, the 140CPU53414BC is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 0 to 60 degrees Celsius. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60 degrees Celsius); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU53414BC, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU53414BC?
The 140CPU53414BC is a processor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Processor.
What are the key technical ratings of the 140CPU53414BC?
Its published highlights include operating temperature 0 to 60 degrees Celsius. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU53414BC mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU53414BC compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU53414BC?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140CPU53414BC is a processor from the Modicon Quantum series, notable for its efficient performance in industrial applications. Operating with a clock frequency of 100 MHz, it contains an internal RAM of 2972 kB, allowing for robust processing capabilities.
Description
| Note | The 140CPU53414BC processor from Schneider Electric is crafted for demanding industrial control environments as part of the Modicon Quantum series. This processor features a significant clock frequency of 100 MHz, enabling it to handle processing tasks efficiently. It is equipped with an internal RAM of 2972 kB, providing ample memory to support various applications. A key feature of this processor is the watchdog timer, which operates at 250 ms to ensure system reliability. The device efficiently manages input and output operations, supporting 500 I/O words per network configuration. With the capability to manage 63 distributed drops and support 31 remote drops, it offers substantial flexibility in network setup. For powering requirements, the 140CPU53414BC processor necessitates a bus current of 1250 mA. Its lithium battery type is rated for a capacity of 1.2 Ah, with a discharge rate of 10 µA to 420 µA, ensuring dependable long-term performance. The processor also incorporates a key switch function for secure operations. Robustness is a key aspect of this unit, as it demonstrates resistance to both electrostatic discharges rated at 4 kV and 8 kV and can withstand electromagnetic fields measuring up to 10 V/m. Designed for diverse operational conditions, it can function within an ambient temperature range of 0 to 60 degrees Celsius. Weighing in at 0.85 kg, the 140CPU53414BC is a compact yet powerful solution for enhancing control in various industrial settings. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Processor Software name ProWORX 32 Concept Processor name 80486 |
| Mathematical coprocessor | With |
Complementary
| Clock frequency | 100 MHz |
|---|---|
| Memory description | Internal RAM 2972 kB |
| Exact time for 1 Kinstruction | 0.1...0.5 ms LL984 |
| Watchdog timer | 250 ms |
| Clock drift | +/-8 s/day 32…140 °F (0…60 °C) |
| I/O words | 30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote |
| I/O words/network | 500 I/500 O distributed |
| Drops/network | 63 distributed |
| Number of drops | 31 remote |
| Number of network | 2 remote 3 distributed |
| Battery type | Lithium 10 µA 420 µA |
| Battery Capacity | 1.2 Ah |
| Battery Life | 10 year(s) |
| Switch Function | Key switch |
| Marking | CE |
| Bus current requirement | 1250 mA |
| Module format | Standard |
| Net Weight | 1.87 lb(US) (0.85 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product Certifications | FM Class 1 Division 2 cUL |
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18150-QUANTUM CONTROLLERS,HSBY,COMM. |
|---|---|
| Discount Schedule | PC21 GTIN 3595863917093 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.0 in (5.0 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.4 in (31.5 cm) |
| Package weight(Lbs) | 22.4 oz (634.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
