140CPU42402C
Schneider Electric
Overview

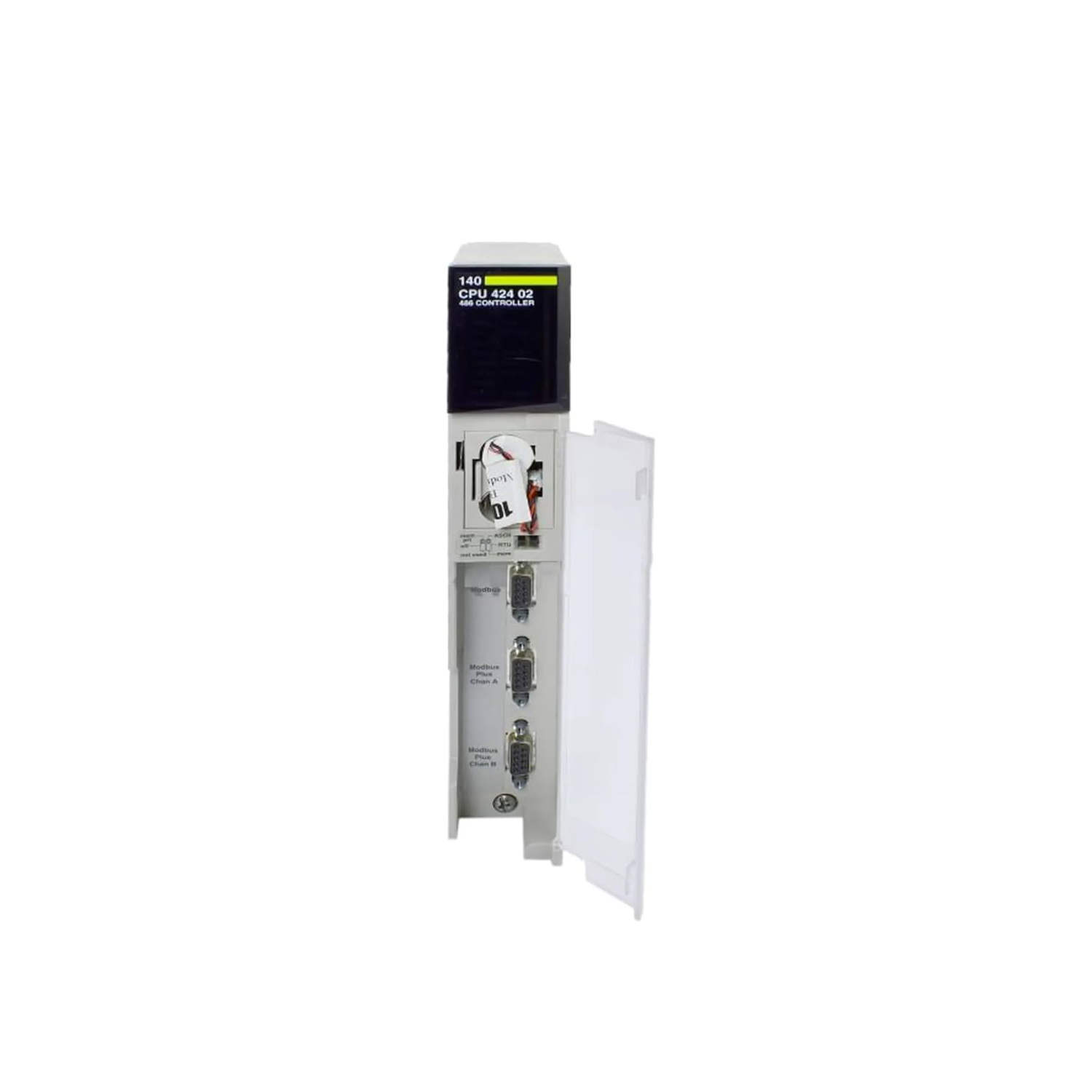

The 140CPU42402C is a CPU Module in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cpu module, the 140CPU42402C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 0…60°C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60°C); do not exceed it during commissioning or in enclosed panels without airflow. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU42402C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU42402C?
The 140CPU42402C is a cpu module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: CPU Module.
What are the key technical ratings of the 140CPU42402C?
Its published highlights include operating temperature 0…60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU42402C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU42402C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU42402C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU42402C from Schneider Electric's Modicon Quantum series is a robust CPU module featuring a 486 controller setup. It supports both local and remote I/O systems and is equipped with dual Modbus Plus communication ports for versatile connectivity.
Description
| Note | The Modicon Quantum series presents the 140CPU42402C, a CPU module that integrates advanced processing and communication capabilities. It utilizes a 486 controller CPU, demonstrating reliable compute performance required for various automation tasks. This model functions effectively with both local and remote I/O systems, providing flexibility in configurations. The device is designed to operate with a voltage supply of 5 V DC and features built-in flash memory for efficient data storage. Its architecture is supported by 2 MB of RAM, which is adequate for most control applications. The programming capabilities are enhanced by software compatibility with Unity Pro and Concept platforms, ensuring ease of use for engineers and developers. With two Modbus Plus communication ports, the module facilitates robust networking options, adhering to protocols like Modbus and Modbus Plus for streamlined data transfer. The instruction set follows the IEC 61131-3 standard, which is widely recognized in industrial automation. In terms of performance, this CPU module exhibits a Boolean execution time of approximately 0.3 microseconds, highlighting its efficiency in processing tasks. Additionally, it is coated with conformal coating (CC) for protection against dust and moisture, making it suitable for various environments. The integrated watchdog timer ensures continued operation and facilitates system reliability. The design accommodates rack mounting, making installation straightforward in control cabinets. Operating within a temperature range of 0 to 60 degrees Celsius, the 140CPU42402C is a versatile solution for numerous control applications within the industrial automation sector. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
