140CPU42401C
Schneider Electric
Overview

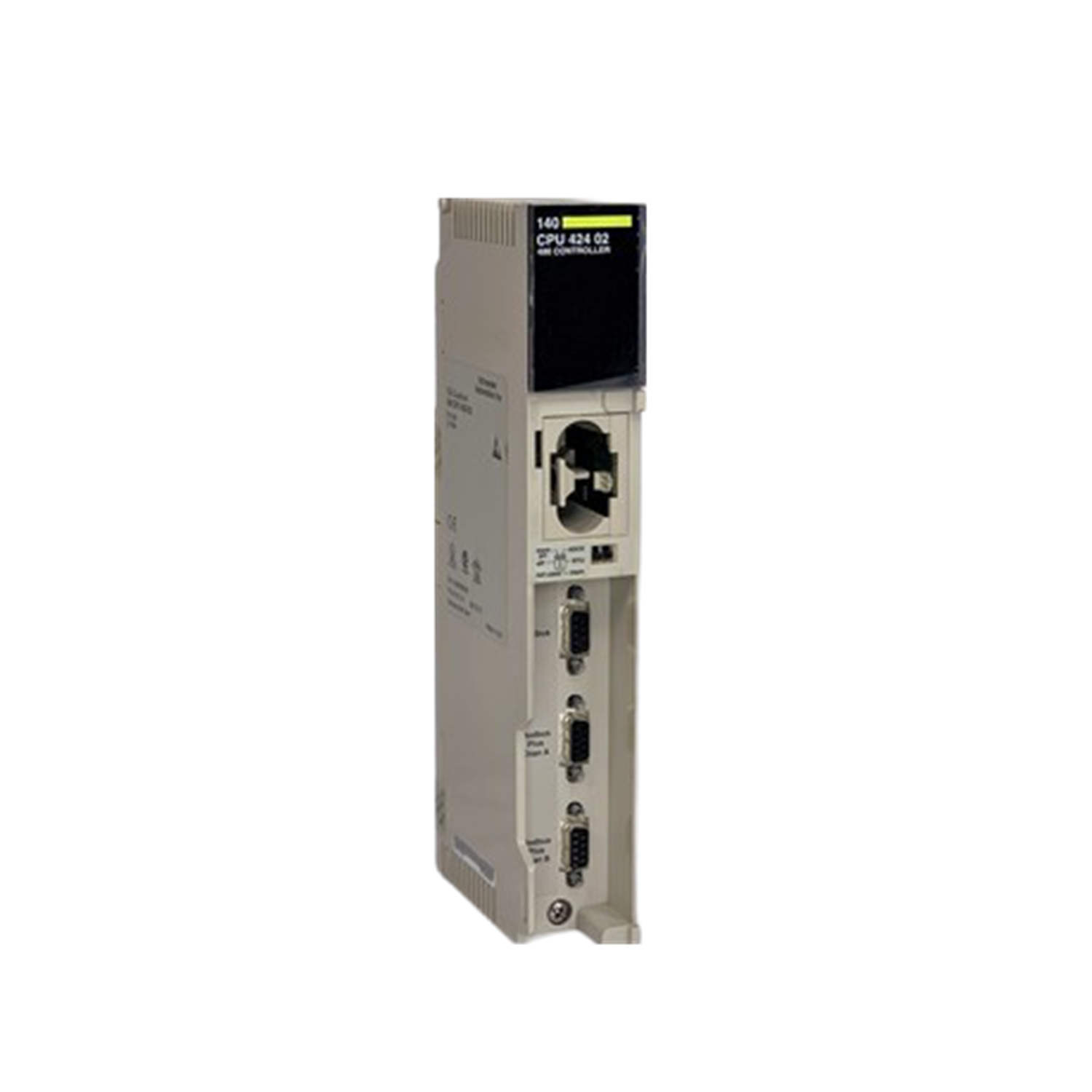

The 140CPU42401C is a CPU Module in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cpu module, the 140CPU42401C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 0…60°C, rack-mounted mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60°C); do not exceed it during commissioning or in enclosed panels without airflow. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU42401C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU42401C?
The 140CPU42401C is a cpu module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: CPU Module.
What are the key technical ratings of the 140CPU42401C?
Its published highlights include operating temperature 0…60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU42401C mounted or installed?
It uses Rack-mounted. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140CPU42401C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU42401C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU42401C is a high-performance CPU module within Schneider Electric's Modicon Quantum series. It incorporates a memory capacity of 1 MB and features both RS232 and Modbus Plus ports for versatile communication, functioning under a voltage supply of 5 V DC.
Description
| Note | The Modicon Quantum 140CPU42401C from Schneider Electric serves as a robust CPU module for complex control systems. This device operates using a stable 5 V DC power supply and comes equipped with 1 MB of RAM, ensuring efficient data processing capabilities. Built for versatility, this module features one RS232 port and one Modbus Plus port, enabling effective communication within various network setups. The module mounts directly into a rack, facilitating straightforward integration into existing control environments. Its operating temperature range spans from 0°C to 60°C, making it suitable for different operational conditions. An integrated watchdog timer enhances the reliability of processes by monitoring system health. This CPU module utilizes a full IEC 61131-3 instruction set, supporting a broad spectrum of programming functions. Additionally, the execution time for Boolean instructions is approximately 0.3 microseconds, which supports rapid processing. The 140CPU42401C also features built-in flash memory and is conformally coated to provide additional protection against environmental factors, making it a durable option for industrial applications. Overall, this CPU module is designed for high-performance tasks and is compatible with a wide array of local and remote I/O configurations, ensuring adaptability in diverse automation environments. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
