140CPU21304C
Schneider Electric
Overview

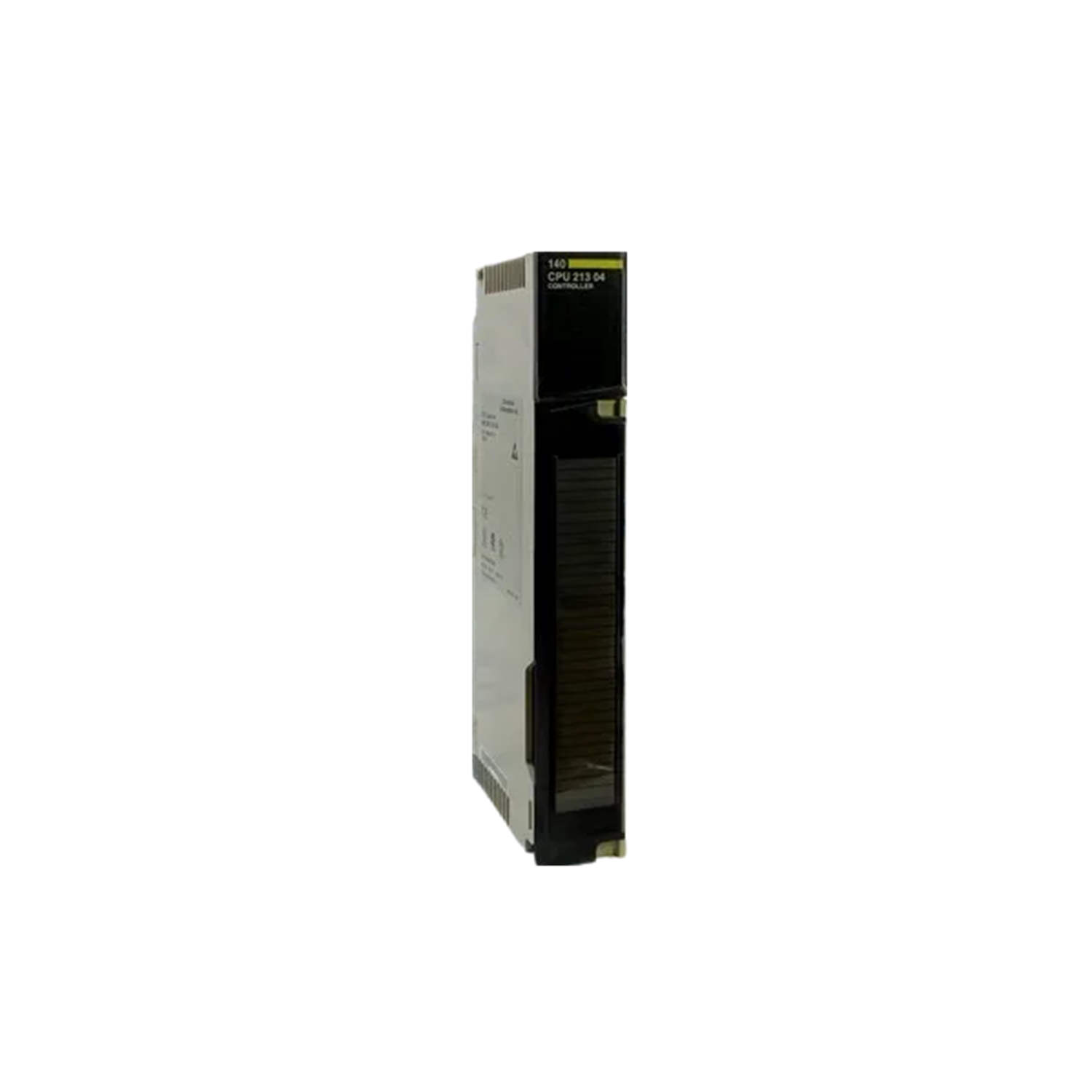

The 140CPU21304C is a CPU Module in the Modicon Quantum range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a cpu module, the 140CPU21304C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include rack-mounted mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU21304C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU21304C?
The 140CPU21304C is a cpu module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: CPU Module.
What are the key technical ratings of the 140CPU21304C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140CPU21304C mounted or installed?
It uses Rack-mounted. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140CPU21304C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU21304C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPU21304C is a CPU module from Schneider Electric's Modicon Quantum series, suitable for harsh environments due to its conformal coating. With 768 KB of RAM and 16 KB of program memory, it supports both local and remote I/O, making it versatile for various applications.
Description
| Note | The Modicon Quantum series features the 140CPU21304C, a highly capable CPU module designed for flexibility in demanding environments. This unit is equipped with a conformal coating that provides protection against harsh conditions. It is rack-mounted and supports advanced math instructions, making it suitable for various computational tasks. A substantial RAM capacity of 768 KB is available, complemented by 16 KB of program memory, which aids in efficient data handling and processing. The execution time for Boolean operations is approximately 0.3 microseconds, ensuring quick response times for applications requiring rapid processing. Integrated battery-backed RAM allows for data retention during power outages, enhancing reliability. Communication options are diverse, featuring one RS232 Modbus port and one Modbus Plus port, facilitating connectivity within industrial networks. The CPU supports both local and remote I/O configurations, which expand its use in different system architectures. This module is designed to operate within a temperature range of 0 to 60°C, ensuring reliable performance in various environmental conditions. Status LEDs provide real-time feedback with indicators for RUN, ERR, I/O, and COMM, allowing for easy monitoring of operational status. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
