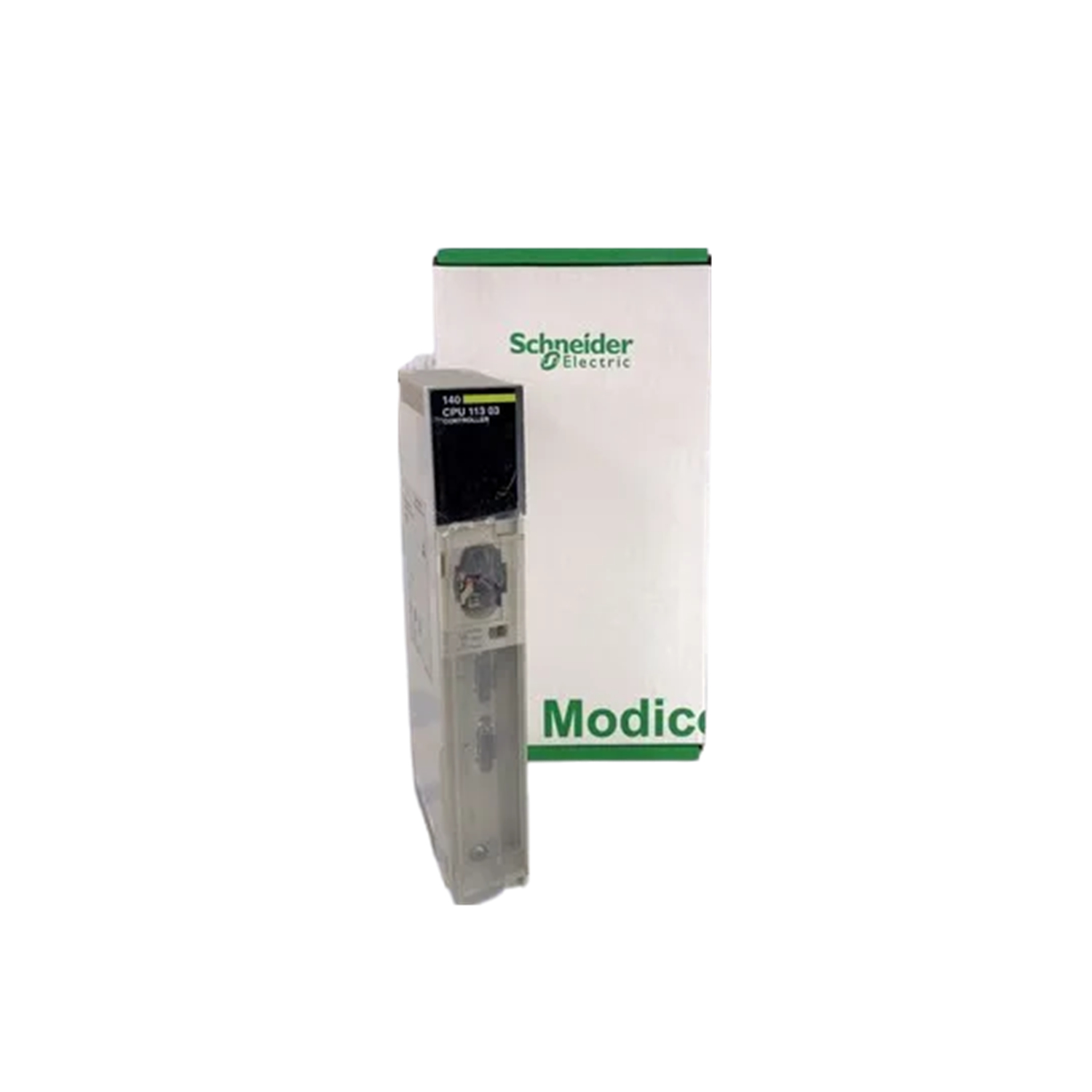

140CPU11303
Schneider Electric
Overview
The 140CPU11303 is a Processor in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a processor, the 140CPU11303 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPU11303, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Quantum architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPU11303?
The 140CPU11303 is a processor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Processor.
What are the key technical ratings of the 140CPU11303?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPU11303 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPU11303 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPU11303?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Concept processor 80186 Modicon Quantum - 1 Modbus plus, 2 Modbus RS232
Main
| Range of Product | Modicon Quantum automation platform Product or Component Type Processor Software name ProWORX 32 Concept Processor name 80186 |
|---|---|
| Mathematical coprocessor | Without |
Complementary
| Clock frequency | 20 MHz |
|---|---|
| Memory description | Internal RAM 368 kB |
| Exact time for 1 Kinstruction | 0.3...1.4 ms LL984 |
| Watchdog timer | 250 ms |
| Clock drift | +/-8 s/day 32…140 °F (0…60 °C) |
| I/O words | 30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote |
| I/O words/network | 500 I/500 O distributed |
| Drops/network | 63 distributed |
| Number of drops | 31 remote |
| Number of network | 2 remote 3 distributed |
| Battery type | Lithium 7 µA 210 µA |
| Battery Capacity | 1.2 Ah |
| Battery life | 10 year(s) |
| Number of port | 1 Modbus RS232 1 Modbus Plus |
| Communication module processor capacity | 2 NOM, NOE, CR, NMS |
| Switch Function | Without key switch |
| Marking | CE |
| Bus current requirement | 790 mA |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment
| Product Certifications | FM Class 1 Division 2 cUL |
|---|---|
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18150-QUANTUM CONTROLLERS,HSBY,COMM. |
|---|---|
| Discount Schedule | PC21 GTIN 3595861126688 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.97 in (5 cm) |
| Package 1 Width | 6.50 in (16.5 cm) |
| Package 1 Length | 12.20 in (31 cm) |
| Package weight(Lbs) | 18.1 oz (514 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 11.81 in (30 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 9.068 lb(US) (4.113 kg) |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 21 |
| Package 3 Height | 11.81 in (30 cm) |
| Package 3 Width | 15.75 in (40 cm) |
| Package 3 Length | 23.62 in (60 cm) |
| Package 3 Weight | 26.074 lb(US) (11.827 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
