140CPS52400C
Schneider Electric
Overview
The 140CPS52400C is a Power supply module in the Modicon Quantum automation platform range from Schneider Electric. It delivers stable control power at 5.1 V DC for Modicon Quantum racks.
Application & Technical Notes
As a power supply module, the 140CPS52400C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It conditions and distributes the low-voltage supply that powers the controller, I/O and communication modules on the same rack.
Key published characteristics include a 5.1 V DC rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Ensure adequate ventilation and do not overload the supply beyond its published current budget; consider redundancy for critical racks. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPS52400C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the output voltage and current to the Modicon Quantum load and allow headroom for future expansion. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPS52400C?
The 140CPS52400C is a power supply module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Power supply module.
What are the key technical ratings of the 140CPS52400C?
Its published highlights include 5.1 V DC, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPS52400C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPS52400C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPS52400C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140CPS52400C is a power supply module within the Modicon Quantum series. It operates with a nominal input of 125 V DC and can accept input voltages between 100 to 150 V DC, making it versatile for different applications.
Description
| Note | Schneider Electric's 140CPS52400C power supply module is engineered for reliability in various industrial applications. It supports a nominal input voltage of 125 V DC, with an operational range from 100 to 150 V DC. This ability to handle a wide range of input voltages makes it suitable for diverse setups. The inrush current at 125 V is rated at 28 A. It outputs a stable current of 8 A, with an input current drawing just 0.5 A, ensuring efficient operation. This module is designed to deliver an output voltage of 5.1 V DC, which is crucial for powering connected devices. A significant feature of this power supply is its hold-up time, which is ≤ 1 ms, ensuring that the output voltage remains stable during brief interruptions. Power dissipation is calculated as 6 + (1.5 × Iout) W, which assists in maintaining thermal safety. Internal protections for both overload and overvoltage conditions enhance reliability, working to safeguard connected equipment. The device has a slow-blow fuse rating of 2 A to offer additional protection against unexpected currents. For user visibility, the power supply is equipped with a local signaling feature, incorporating a green LED that indicates when the power is okay (PWR OK). The unit boasts a CE marking, indicating compliance with European safety standards, making it a dependable choice for industrial power supply applications. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Power supply module Power supply type Redundant |
Complementary
| Input voltage | 125 V 100...150 V) DC |
|---|---|
| Input current | 500 mA 125 V |
| Inrush current | 28 A 125 V |
| Maximum input power interruption | 1 ms |
| Associated fuse rating | 2 A, slow-blow |
| Output voltage | 5.1 V DC |
| Power supply output current | 8 A redundant |
| Output overvoltage protection | Internal |
| Output overload protection | Internal |
| Power dissipation | 6 + (1.5 x Iout) where Iout is in A |
| Local signalling | 1 LED (green) for power (PWR OK) |
| Marking | CE |
| Module format | Standard |
| Net Weight | 1.43 lb(US) (0.65 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | N/A |
| CSA C22.2 No 142 | UL 508 |
| Product Certifications | cUL FM Class 1 Division 2 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 GTIN 3595861137448 |
| Returnability | No |
| Country of origin | CN |

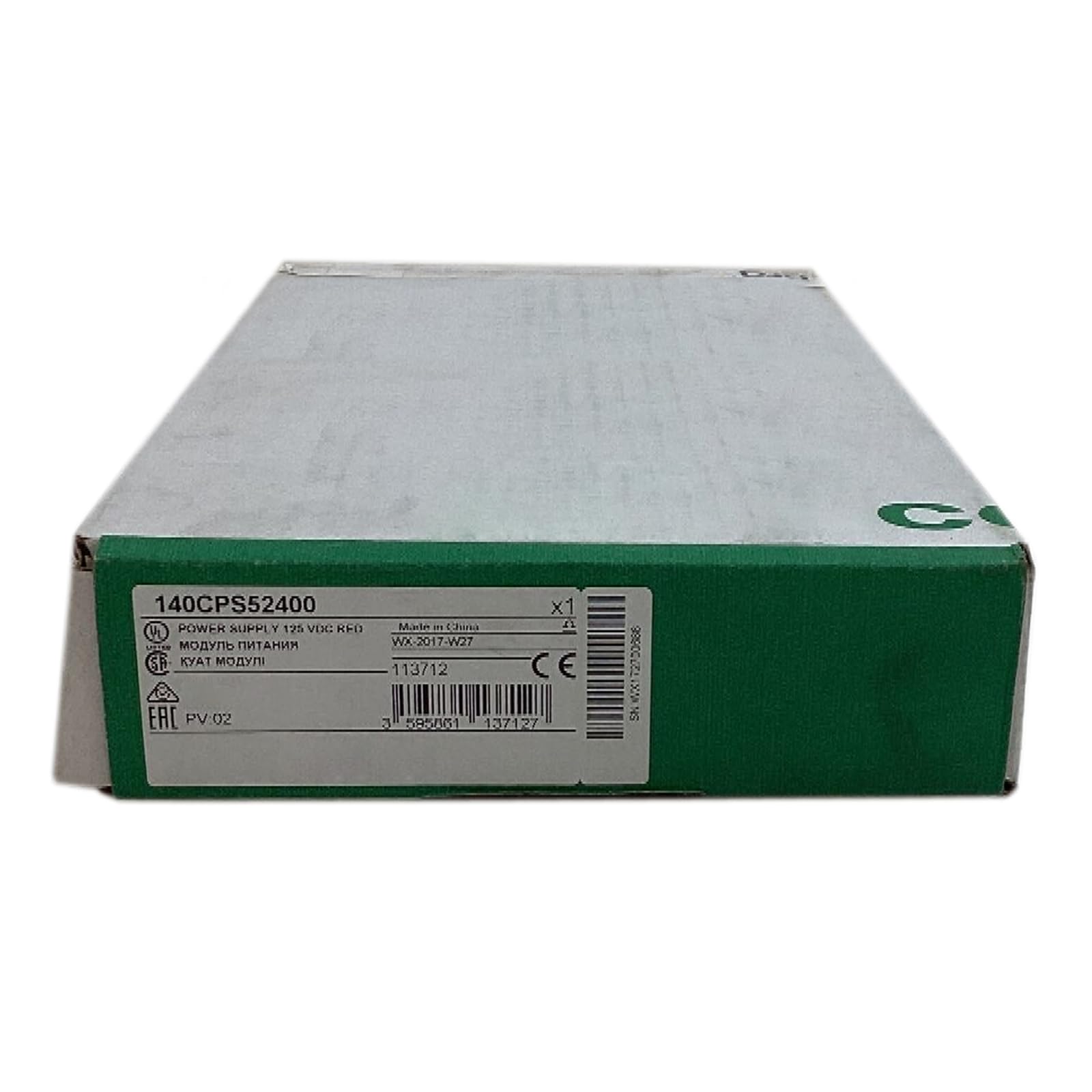

Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.8 in (4.5 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.4 in (31.5 cm) |
| Package weight(Lbs) | 32.3 oz (915.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
