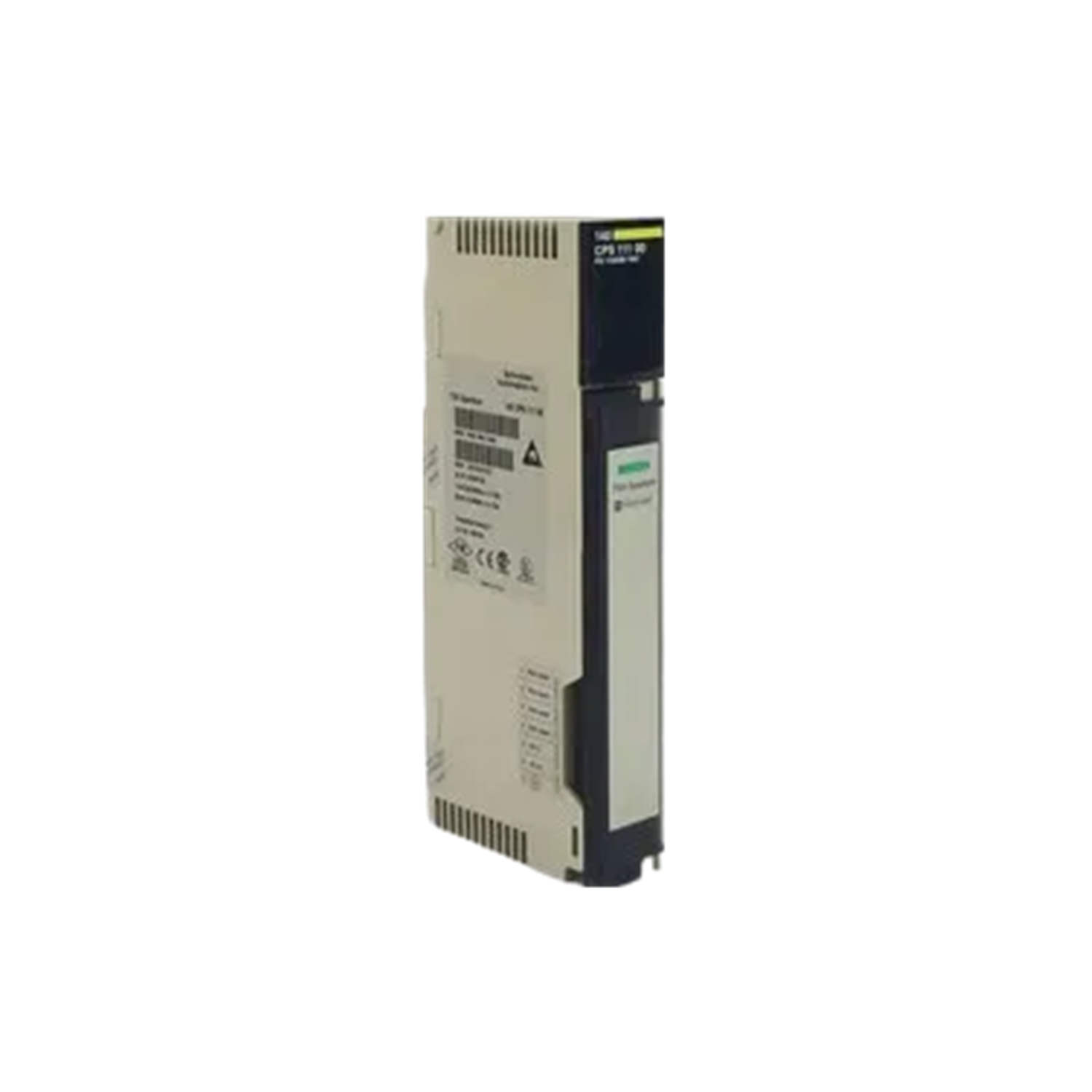

140CPS11100C
Schneider Electric
Overview
The 140CPS11100C is a Power Supply Module in the Modicon Quantum range from Schneider Electric. It delivers stable control power at 5.1 V DC for Modicon Quantum racks.
Application & Technical Notes
As a power supply module, the 140CPS11100C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It conditions and distributes the low-voltage supply that powers the controller, I/O and communication modules on the same rack.
Key published characteristics include a 5.1 V DC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Ensure adequate ventilation and do not overload the supply beyond its published current budget; consider redundancy for critical racks. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140CPS11100C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the output voltage and current to the Modicon Quantum load and allow headroom for future expansion. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140CPS11100C?
The 140CPS11100C is a power supply module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Power Supply Module.
What are the key technical ratings of the 140CPS11100C?
Its published highlights include 5.1 V DC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140CPS11100C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140CPS11100C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140CPS11100C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140CPS11100C is a power supply module from Schneider Electric's Modicon Quantum series. This unit is designed to operate with an input voltage range of 120 to 230 V AC and provides a stable output of 5.1 V DC.
Description
| Note | Schneider Electric's power supply module, designated as part number 140CPS11100C, is tailored for high-performance applications within the Modicon Quantum series. It accepts an input voltage ranging from 120 to 230 V AC and demonstrates a broad input range of 100 to 276 V AC. The device exhibits low harmonic distortion, capped at 10%, which contributes to efficient operation. Its rated power stands at 50 VA, accommodating various loads effectively. When examining input current, this module draws 400 mA at 115 V and 200 mA at 230 V. An inrush current capacity of 20 A at 115 V and 10 A at 230 V allows for reliable initialization without damaging connected equipment. The power dissipation, calculated as 2 plus three times the output current (Iout), ensures effective thermal management of the module during operation. The unit offers an output current capacity of 3 A, making it suitable for various controlled environments. With features such as internal overload protection and frequency support between 47 to 63 Hz, the power supply is robust against fault conditions. Overvoltage protection also resides internally, enhancing overall safety. A single green LED indicator serves as a power status signal, confirming the module's operational readiness with a 'PWR OK' indication. This compact and efficient power supply module is designed to meet the demands of modern industrial control systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
