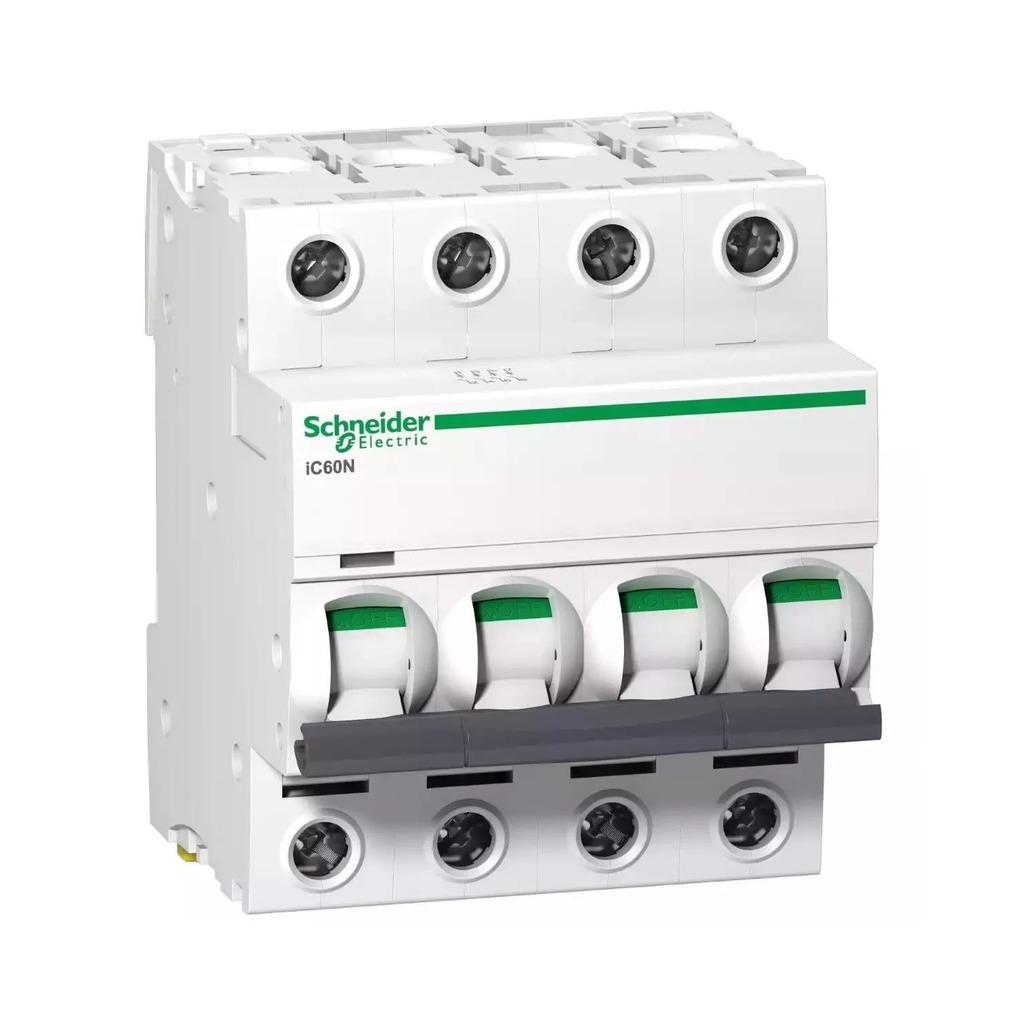

iC60N 4P C32
Schneider Electric
Overview
The iC60N 4P C32 is a circuit protection device in the Acti9 / iC60 miniature circuit breaker range from Schneider Electric. Acti9 iC60N Miniature Circuit Breaker, 4P, 32 A, C-curve.
Application & Technical Notes
As an acti9 / ic60 miniature circuit breaker device, the iC60N 4P C32 is intended for deployment in panel-based control cabinets and machine enclosures where Acti9 / iC60 miniature circuit breaker equipment is installed. It interrupts overload and short-circuit currents to protect wiring, equipment and personnel on the downstream circuit.
Key published characteristics include an operating temperature range of -35 to 70 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-35 to 70 °C); do not exceed it during commissioning or in enclosed panels without airflow. Torque terminals to specification, de-rate for ambient temperature and verify selective coordination with upstream protection. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the iC60N 4P C32, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the rated current, breaking capacity, pole count and tripping curve to the circuit and upstream protection. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the iC60N 4P C32?
The iC60N 4P C32 is an acti9 / ic60 miniature circuit breaker device in the Acti9 / iC60 miniature circuit breaker range from Schneider Electric. It belongs to the Acti9 / iC60 miniature circuit breaker automation family.
What are the key technical ratings of the iC60N 4P C32?
Its published highlights include operating temperature -35 to 70 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the iC60N 4P C32 mounted or installed?
Installation follows the standard Acti9 / iC60 miniature circuit breaker mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the iC60N 4P C32 compatible with my controller?
It is part of the Acti9 / iC60 miniature circuit breaker family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the iC60N 4P C32?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Acti9 iC60N Miniature Circuit Breaker, 4P, 32 A, C-curve
Electrical Specifications
| Poles | 4P |
|---|---|
| Rated current | 32A |
| Trip curve | C (thermal-magnetic, magnetic trip 8×In ±20%) |
| Breaking capacity | 6 kA @ 230/400V (IEC 60898-1) |
| Rated voltage | 400V AC |
Standards & Certifications
| Standard | EN/IEC 60898-1, EN/IEC 60947-2 |
|---|
Environmental
| Operating temperature | -35 to 70 °C |
|---|
Physical
| Mounting | 35 mm DIN rail |
|---|---|
| Mechanical life | 20,000 cycles |
| Electrical life | 10,000 cycles |
| Dimensions (H×W×D) | 85 × 72 × 78.5 mm |
| Weight | 0.5 kg |
Lifecycle
| Lifecycle | Active (in production, Acti9 range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
