TWDPTO220DT
Schneider Electric
Overview

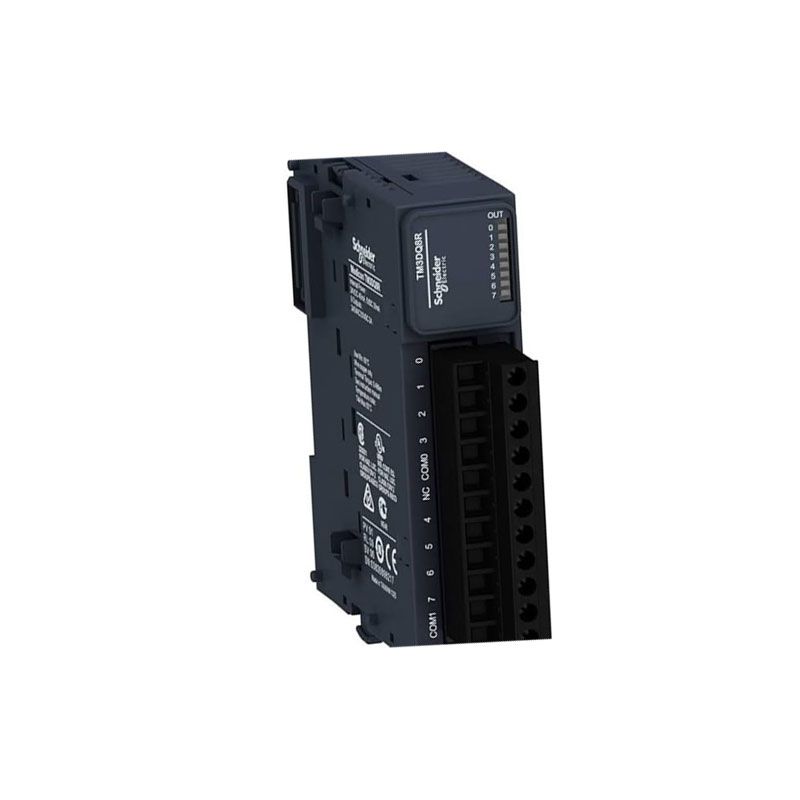

The TWDPTO220DT is an automation component from Schneider Electric. TM2 PTO module is an extension module which comprises 2 PTO output channels.
Application & Technical Notes
As an automation component, the TWDPTO220DT is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24V rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TWDPTO220DT, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Check live stock, lead time and request a quote for TWDPTO220DT (opens in a new tab)
Frequently Asked Questions
What is the TWDPTO220DT?
The TWDPTO220DT is an automation component from Schneider Electric. It is part of the Schneider Electric automation portfolio.
What are the key technical ratings of the TWDPTO220DT?
Its published highlights include 24V. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TWDPTO220DT mounted or installed?
Installation follows the standard Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TWDPTO220DT compatible with my controller?
It is part of the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TWDPTO220DT?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
TM2 PTO module is an extension module which comprises 2 PTO output channels. The product reference number is TWDPTO220DT. The PTO function provides a square wave output for a specified number of pulses and a specified cycle time. The PTO function can be programmed to produce either one train of pulses or a pulse profile consisting of multiple trains of pulses. For example, a pulse profile can be used to control a stepper motor through a simple ramp up, run, and ramp down sequence or more complicated sequences. The control positioning is achieved according to an open loop mode meaning without the need of feedback information on the real position of the mobile. The position loop is integrated in the servo-drive.
Specifications
| Power Supply | N/A |
|---|---|
| Digital | Input |
| Digital | Output |
| Compatibility | (CW, CCW): RS422 Standard output, 7mA/pulse |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
